High Precise Linear Vibrating Sieve Sand Vibrating Screen For Particle Separation

Basic Information
Place of Origin: China
Brand Name: EVERSUN
Certification: ISO, CE
Model Number: DZSF
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: Standard export wooden cases
Delivery Time: within 7-15 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000sets/year
Detail Information
Product Name: Linear Vibrating Screen Vibration Motor: Double Vibration Motor
Particle  Size: ≤20mm Operation Mode: Automatic
Screening Area: Large Capacity: ≤32t/h Or Customized
Screen Size: 0.02-20mm Vibration Amplitude: Adjustable
High Light:

High Precise Linear Vibrating Sieve


Particle Separation Sand Vibrating Screen


20mm Linear Vibrating Sieve

Product Description

Product Description:

Linear Vibrating Sieve, also known as linear vibrating screens or linear vibrating separators. It is a kind of sieving equipment widely used for separating materials into various sizes for further processing. The linear vibrating sieve is a kind of square linear vibrating screen sifter with adjustable vibration amplitude, particle size ranging from 0.02-20mm, capacity up to 32t/h or customized, and double vibration motor for power. It is widely used in mining, coal, metallurgy, chemical industry, building materials, grain, and other industries due to its high screening efficiency and simple structure.


The linear vibration sieve can be applied to the screening and grading of powder and granular materials. The linear vibrating sieve can be used for sieving of various materials with different granularities and it is reliable and stable in operation, low energy consumption and small noise. Moreover, the linear sieve shaker is designed with advanced technology, which ensures that it can work reliably in various harsh conditions. Our Linear Vibrating Sieve is the ideal choice for any sieving and filtering applications.


Technical Parameters:

Parameters Details
Product Name Linear Vibrating Screen
Screening Area Large
Screen Size 0.02-20mm
Capacity ≤32t/h or Customized
Screen Frame Stainless Steel, Carbon Steel
Vibration Motor Double Vibration Motor
Vibration Amplitude Adjustable
Operation Mode Automatic
Particle Size ≤20mm
Screen Layer 1 to 5

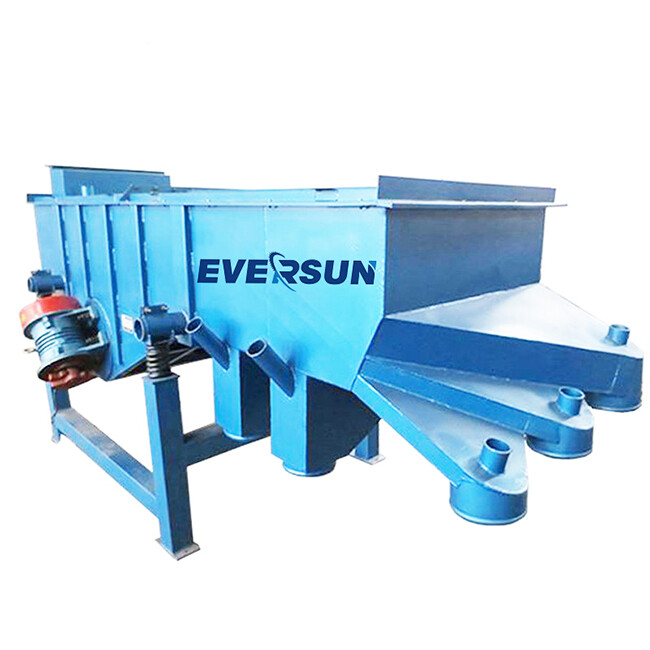

High Precise Linear Vibrating Sieve Sand Vibrating Screen For Particle Separation 0


1. Linear Motion: Linear vibrating sieves operate with a linear motion, where the material moves in a straight line on the sieve surface. This motion helps to effectively separate and classify the materials.


2. High Screening Efficiency: Linear vibrating sieves are renowned for their high screening efficiency. They use a mesh or perforated plate screen surface that allows fine particles to pass through while efficiently separating larger particles.

3. Adjustable Vibration Parameters: Linear vibrating sieves often have adjustable vibration parameters such as vibration amplitude and frequency. This adjustability enables operators to optimize the screening process for different materials, improving overall efficiency.


4. Multiple Screening Decks: Linear vibrating sieves can be designed with multiple screening decks stacked on top of each other. This allows for the separation of materials into multiple size fractions in a single operation, enhancing productivity and versatility.


The EVERSUN DZSF Linear Vibrating Sieve is a China-made product with adjustable vibration amplitude, dual vibration motor, particle size ≤20mm and automatic operation. It is a rectangular linear vibrating screen sieve machine used for grading and powder linear screening.

The linear vibrating screen has the advantages of small size, light weight, high precision, high efficiency, low energy consumption, low noise, long service life, and good screening accuracy. It is widely used in metallurgy, mining, coal, building materials, chemical industry, rubber, food, medicine, and other industries.

The Linear Vibrating Sieve is designed and developed with a large diameter feed port, a small area occupation, and a small overall height. The vibrating motor is used as the excitation source, and the vibrating force is generated by the motor rotation. The linear vibrating screen has a simple structure, and the replacement of the screen is convenient and quick. The linear vibrating screen is easy to operate and maintain.

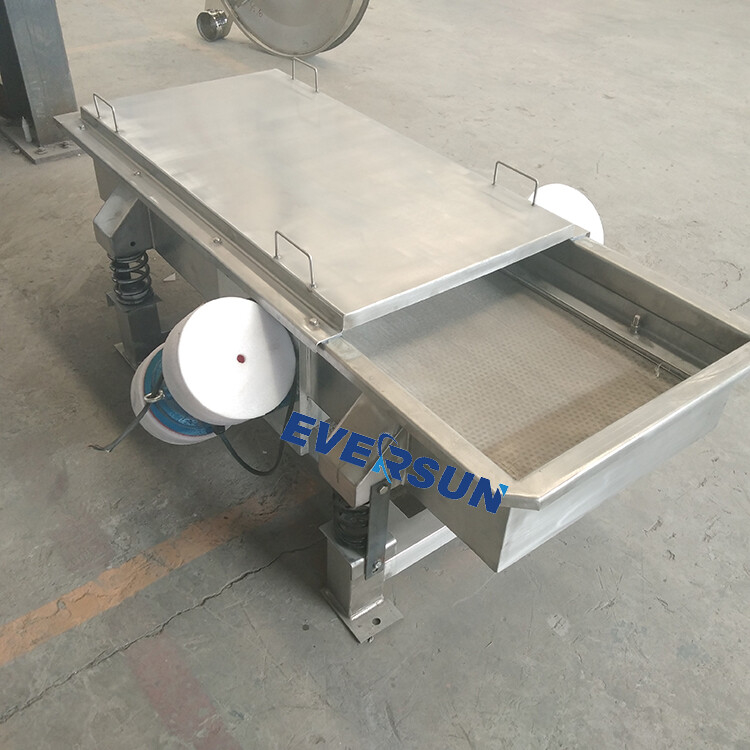

High Precise Linear Vibrating Sieve Sand Vibrating Screen For Particle Separation 1

Support and Services:

We provide technical support and service for our Linear Vibrating Sieve. Our team of technical experts is available to help you troubleshoot any problems you may have with the screen. We can provide maintenance and repair services, as well as advice on how to get the best performance from the machine. We also offer a range of spare parts and accessories for the Linear Vibrating Sieve, so you can keep your machine running smoothly.


High Precise Linear Vibrating Sieve Sand Vibrating Screen For Particle Separation 2

Packing and Shipping:

Packaging and Shipping for Linear Vibrating Sieve

Linear Vibrating Sieve products are packed and shipped according to the following procedures:

  • The Linear Vibrating Sieve is bubble wrapped and then placed in a cardboard box.
  • The box is sealed with tape on all sides.
  • The box is placed in a larger box for shipping.
  • The larger box is filled with packing material to ensure the safety of the product during shipping.
  • The larger box is labeled with the appropriate shipping information.
High Precise Linear Vibrating Sieve Sand Vibrating Screen For Particle Separation 3FAQ:
Q1: What is EVERSUN Linear Vibrating Sieve?
A1: EVERSUN Linear Vibrating Sieve is a model DZSF vibrating screen produced by EVERSUN Machinery in China.
Q2: What are the main features of EVERSUN Linear Vibrating Sieve?
A2: EVERSUN Linear Vibrating Sieve features high screening accuracy, large processing capacity, low noise, and low energy consumption.
Q3: What materials can EVERSUN Linear Vibrating Sieve process?
A3: EVERSUN Linear Vibrating Sieve can process a variety of materials including ore, coal, coke, alumina, limestone, and so on.
Q4: What are the applications of EVERSUN Linear Vibrating Sieve?
A4: EVERSUN Linear Vibrating Sieve is widely used in coal, metallurgy, building materials, food, light industry, chemical industry, etc.
Q5: What is the power of EVERSUN Linear Vibrating Sieve?
A5: EVERSUN Linear Vibrating Sieve is powered by a 0.75-3KW motor.
