Manual Bag Dump Station Small EDS-600 Bulk Bag Unloader With Sieve

Basic Information
Place of Origin: China
Brand Name: EVERSUN
Certification: ISO,CE
Model Number: EDS
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: wooden box
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000sets/year
Detail Information
Features: Dust-proof, Corrosion-resistant Name: Small Bag Dumping Station
Material: SUS 304/316L/Carbon Steel Capacity: 25-1000kg
Control Mode: PLC/control Box/control Cabinet Dust Collecting Efficiency: 99.9%
High Light:

Manual Bulk Bag Unloader


Small Bag Dump Stations With Sieve


Dustproof Bag Dump Station

Product Description

Product introduction

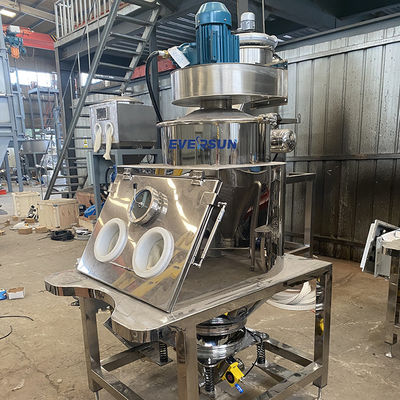

Manual Bag Dump Station Small EDS-600 Bag Dump Stations With Sieve

The bag dump stations also called manual bag dump station are transfer device that uses negative pressure to collect dust and is suitable for bag opening and feeding of transfer materials during the production process. The material can be stored first and then conveyed, and it can be used in conjunction with the dust collection system to effectively prevent dust from flying.


Effectively isolate the material dust generated during feeding and related equipment from the human body, so that the dust is sucked into the filter system under the negative pressure of the fan to separate the gas from the material. When the material accumulates a lot, it falls due to its own weight into the silo.

Product parameter


Model Feeding port diameter Power of blower Air pressure of blower
EDS-600 600mm/24inch 1.5KW 3Kpa-25m³/m
EDS-800 800mm/32inch 1.5KW 3Kpa-25m³/m
EDS-1000 1000mm/40inch 2.2KW 3.6Kpa-39m³/m
EDS-1200 1200mm/48inch 2.2KW 3.6Kpa-39m³/m











Manual Bag Dump Station Small EDS-600 Bulk Bag Unloader With Sieve 0
Product features

1. The overall size of the bag dump station is compact, saving space, and simple in structure;

2. The automatic bag dump station has a dust removal function to prevent the dust from flying during the bag opening process and reduce material loss;

3. A vibrating screen can be installed in the dust bag opening station to effectively remove foreign matter in the material;
4. The bag dumper adopts intelligent control, with a high degree of automation and easy operation;

5. The smooth surface design inside the equipment is easy to disassemble and clean;

6. A variety of main materials can be selected according to the actual needs of users, such as 304 stainless steel, 316L stainless steel, and carbon steel;

7. The overall structure, overall height, and hopper can be designed and adjusted according to the actual site layout of the user;

8. The small bag dumping station can be customized as an explosion-proof type to meet the needs of customers on special occasions.

9. Optional equipment: iron remover/vibrating screen/measurement weighing and conveying/cutting knife/bag pressing device.


Product details

The equipment is composed of auxiliary feeding, bag opening, unloading, gloves, visual glass, flow aid and other humanized structures.

Manual Bag Dump Station Small EDS-600 Bulk Bag Unloader With Sieve 1

 Supporting use

1, it can be equipped with material hopper, combined with glove box design, to achieve 100% isolation of dust and gas from the operator.
2, it can be matched with filter dust collector, star discharge valve and other uniform discharge.
3. It is equipped with a beating device under the hopper to assist discharge
4. It can also install a weighing device in the unloading bin, which can weigh and measure the hopper material.
5, it can be connected according to the actual situation of screening, drying, packaging equipment, can achieve material drying, packaging and other actions.
Manual Bag Dump Station Small EDS-600 Bulk Bag Unloader With Sieve 2
