| Place of Origin: | China |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO,CE |
| Model Number: | JB |
| Minimum Order Quantity: | 1 |
| Price: | negotiable |
| Packaging Details: | wooden box |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000sets/year |
| Features: | Dust-proof, Corrosion-resistant | Name: | Dust-free Discharge Station |
|---|---|---|---|
| Material: | SUS 304/316L/Carbon Steel | Optional Equipment: | Iron Remover/vibrating Screen/weighing System |
| Application: | Powder, Particle, Fiber Unloading | Warranty: | 1 Year |
| High Light: | Dust Free Discharge Bag Dump Station,Screening Bag Dump Station,Unpacking Bag Discharge Station |
||
Product introduction

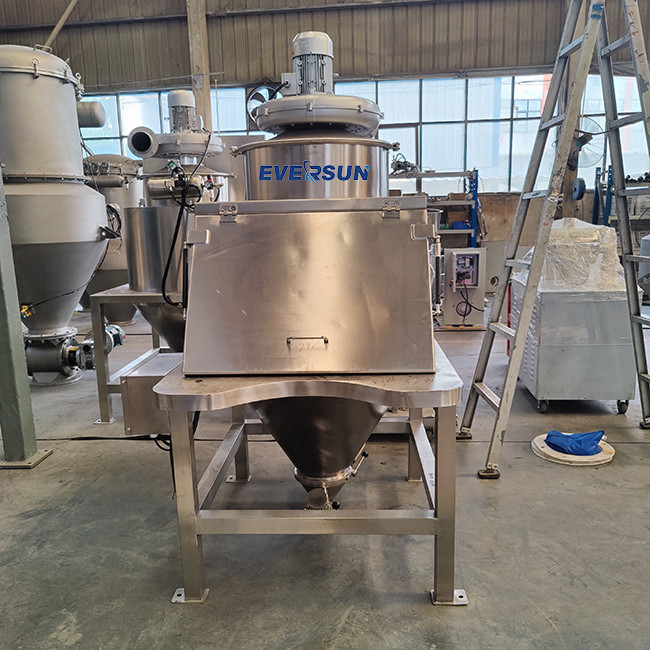

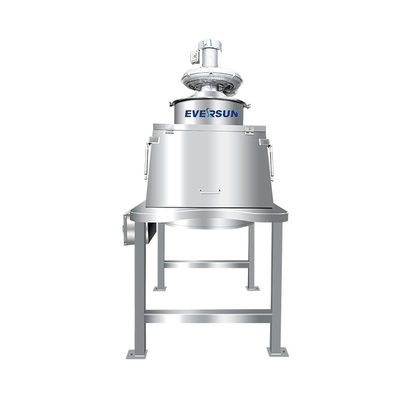

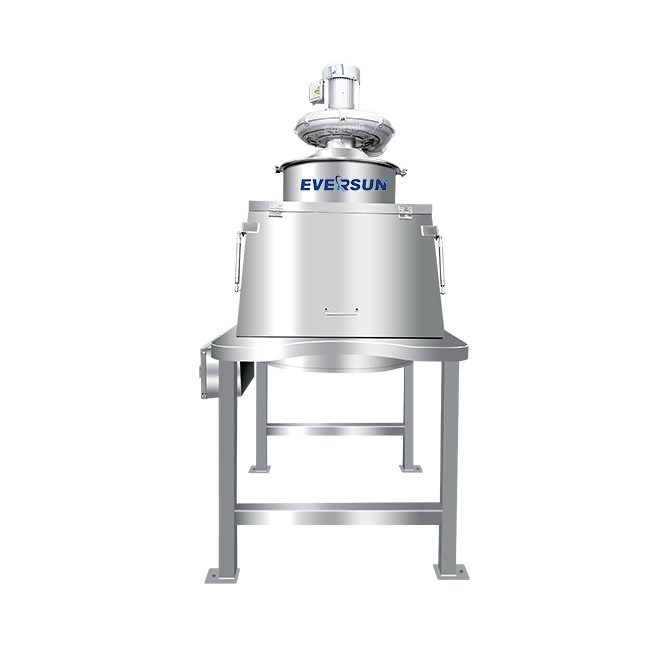

Dust-free discharge station is a kind of feeding equipment, which is suitable for unpacking, feeding, screening and unloading of small and medium-sized bag materials in food, pharmaceutical, chemical and metallurgical industries, especially for manual feeding and pre-screening of powder materials.
EVERSUN Dust-free feeding station is a high-performance product carefully developed by our company on the basis of extensively absorbing the characteristics of similar products at home and abroad. This product is a feeding and screening machine, with screening function, it can be randomly replaced according to demand. It is equipped with dust suction fan and filter to absorb the dust generated during feeding, effectively solving the problem of dust flying in the process of unbagging and dumping, ensuring the safety and clean of operators and the environment.
Product parameter
| Model | Power(kW) | Speed(rpm) | Air flow(m3/h) | Air pressure (Pa) | Sieving area |
| JB-800 | 2×0.18 | 1460 | 1550-997 | 1217-1641 | 0.42 |
| JB-1000 | 2×0.25 | 1460 | 1550-997 | 1217-1641 | 0.64 |
| We support any kind of customized bag dumping station | |||||
Product features
1. The dust-free feeding station is suitable for the feeding of ovens, freeze-dried raw materials, bagged materials and barreled raw materials.
2. Simple and convenient operation, high cost performance, with dust collection, so that dust no longer fly.
3. The equipment of dust-free feeding station consists of auxiliary feeding, bag opening, unloading, gloves, visual glass, flow aid, roller table and other humanized structures, easy to operate and high degree of automation.
4. The equipment of the dust-free feeding station can be combined with the equipment of vibrating screen and vacuum charging machine.
5. Unique design of double filter element, pulse type vacuum backblowing/fan dust removal structure, completely solve the dust flying and material loss.
Dust-free discharge station can be connected to rotary discharge valve, butterfly valve, cartridge valve, powder metering valve, vacuum feeding machine, vacuum conveyor, screw conveyor, vibrating screen, bin, hopper, reversing valve and other equipment.
Supporting use

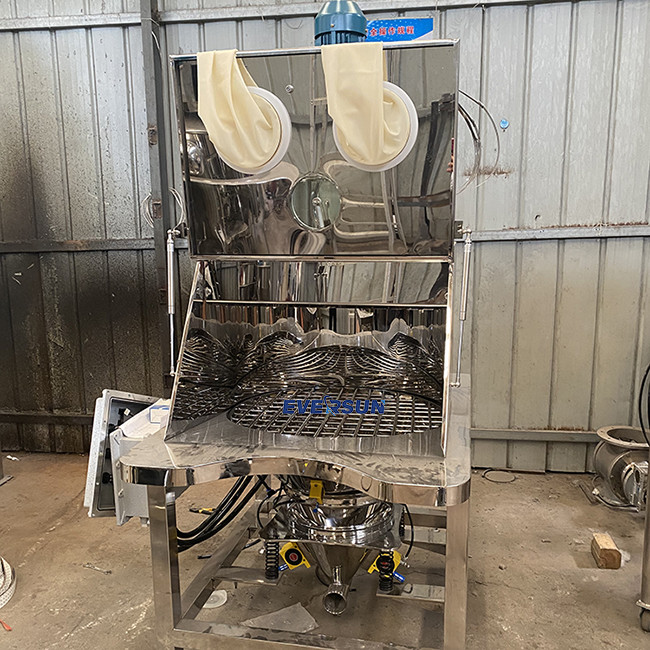

1, it can be equipped with material hopper, combined with glove box design, to achieve 100% isolation of dust and gas from the operator.
2, it can be matched with filter dust collector, star discharge valve and other uniform discharge.
3. It is equipped with a beating device under the hopper to assist discharge
4. It can also install a weighing device in the unloading bin, which can weigh and measure the hopper material.
5, it can be connected according to the actual situation of screening, drying, packaging equipment, can achieve material drying, packaging and other actions.
