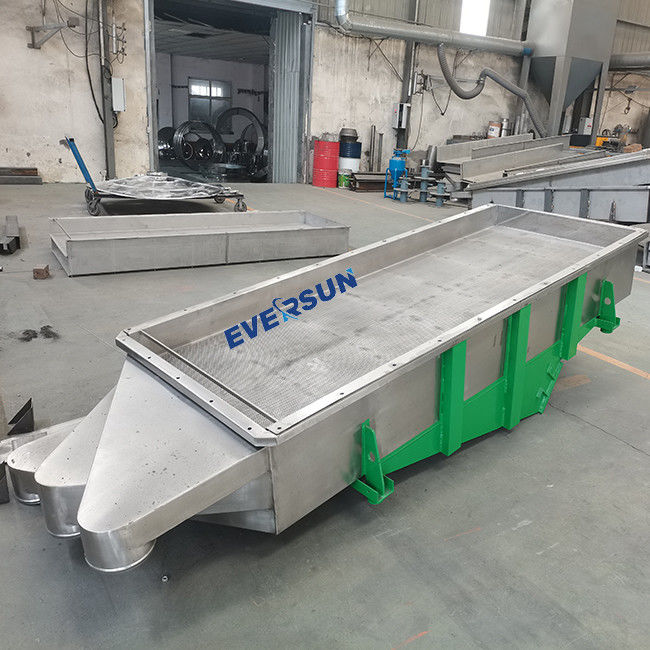

Pharmaceutical And Chemical Industry Linear Vibrating Sieve Sifter With 2 Motors
Linear vibrating sieve, also known as light linear screen with high precision and large output, is often used for screening powdery or granular dry materials or filtering liquid materials. The sieving fineness can reach 325 mesh/inch; the power adopts an angle-adjustable excitation source, according to the customer’s screening and filtering requirements, it can be used in single or multiple layers, up to five layers. It is composed of screen box, vibrating motor, vibration damping system and chassis, etc. It has a fully enclosed structure, and the dust does not overflow, and is suitable for 24-hour assembly line operations.
Product Parameter
Model
Layer
Screening
Area(mm)
Mesh size(mm)
Particle
Size(mm)
Capacity(t/h)
Power
(kw)
Double Amplitude(mm)
DZSF-612
1 to 5
600*1200
0.02-20
≤20
≤3
0.37×2
6 to 10
DZSF-520
1 to 5
500*2000
0.02-20
≤20
≤5
0.37×2
6 to 10
DZSF-525
1 to 5
500*2500
0.02-20
≤20
≤8
0.37×2
6 to 10
DZSF-1020
1 to 5
1000*2000
0.02-20
≤20
≤12
0.75×2
6 to 10
DZSF-1025
1 to 5
1000*2500
0.02-20
≤20
≤16
0.75×2
6 to 10
DZSF-1030
1 to 5
1000*3000
0.02-20
≤20
≤20
1.1×2
6 to 10
DZSF-1224
1 to 5
1200*2400
0.02-20
≤20
≤23
1.5×2
6 to 10
DZSF-1525
1 to 5
1500*2500
0.02-20
≤20
≤28
1.5×2
6 to 10
DZSF-1530
1 to 5
1500*3000
0.02-20
≤20
≤32
2.2×2
6 to 10
Product Feature
The screen machine is mainly composed of screen box, screen frame, screen mesh, vibration motor, motor base, vibration damping spring, support and so on. It has the following characteristics:
1. The trajectory of the linear vibrating sieve is a straight line.
2. The highest sieving mesh is 325 mesh, which can screen out 7 kinds of materials with different particle sizes.
3. The structure adopts a fully enclosed structure to ensure that the material does not go out, and the design of the balance is used to reduce the vibration and noise of the sieve machine.
4. In order to make the operation of the equipment more balanced, the base of the linear vibrating sieve has been strengthened, and the customer can also use the hook structure according to the needs and the place of production.
5. There are two-layer, three-layer, and multi-layer screen frame models for customers to choose from.
6. Impurities and coarse materials are automatically discharged, allowing continuous operation.
7. The sieve frame is made of wood and steel, with many choices.
Scope of application
Suitable for the screening and classification of powder, granular materials, widely used in coal, hydropower, mining, building materials, chemical, plastics, abrasives, medicine, food, carbon, fertilizer and other industries.
