Mobile Linear Vibrating Screen Sand And Stone Mining Vibrating Screen

Basic Information
Place of Origin: China
Brand Name: EVERSUN
Certification: ISO,CE
Model Number: DZSF
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard export wooden
Delivery Time: within 7-15 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000SETS/YEAR
Detail Information
Name: Linear Vibrating Screen Layer: 1~6 Layer
Material: Stainless Steel/carbon Steel Screen Material: Wire Woven Mesh
Motor: Double Vibrating Machine Application: Powder/granular Materials
Highlight:

Sand Stone Mining Vibrating Screen

,

Mobile Linear Vibrating Screen

,

Mining Linear Vibrating Screen


Product Description

Product Introduction


Sand and stone mining vibrating screen mobile linear vibrating screen



Linear vibrating screen is a kind of square screen machine, it is mainly used for abrasive, chemical raw materials, metallurgical materials, food, fertilizer, glass, plastic, building materials and other raw materials screening and classification. Its screening precision is high, the processing capacity is large, the energy consumption is low, the structure can be closed or open structure. It is very suitable for automated operation in assembly line production.



The linear screen produced by EVERSUN supports non-standard design. The shape of the inlet and outlet can be designed as square or round according to the user's related supporting facilities or other requirements, and the size and height can be customized according to the user's requirements. Aperture size can also be installed according to user requirements, but also according to the material characteristics of the installation of round holes or wooden mesh.



Product Parameter


Model Layer Screening
Area(mm)
Mesh size(mm) Particle
Size(mm)
Capacity(t/h) Power
(kw)
Double Amplitude(mm)
DZSF-612 1 to 5 600*1200 0.02-20 ≤20 ≤3 0.37×2 6 to 10
DZSF-520 1 to 5 500*2000 0.02-20 ≤20 ≤5 0.37×2 6 to 10
DZSF-525 1 to 5 500*2500 0.02-20 ≤20 ≤8 0.37×2 6 to 10
DZSF-1020 1 to 5 1000*2000 0.02-20 ≤20 ≤12 0.75×2 6 to 10
DZSF-1025 1 to 5 1000*2500 0.02-20 ≤20 ≤16 0.75×2 6 to 10
DZSF-1030 1 to 5 1000*3000 0.02-20 ≤20 ≤20 1.1×2 6 to 10
DZSF-1224 1 to 5 1200*2400 0.02-20 ≤20 ≤23 1.5×2 6 to 10
DZSF-1525 1 to 5 1500*2500 0.02-20 ≤20 ≤28 1.5×2 6 to 10
DZSF-1530 1 to 5 1500*3000 0.02-20 ≤20 ≤32 2.2×2 6 to 10

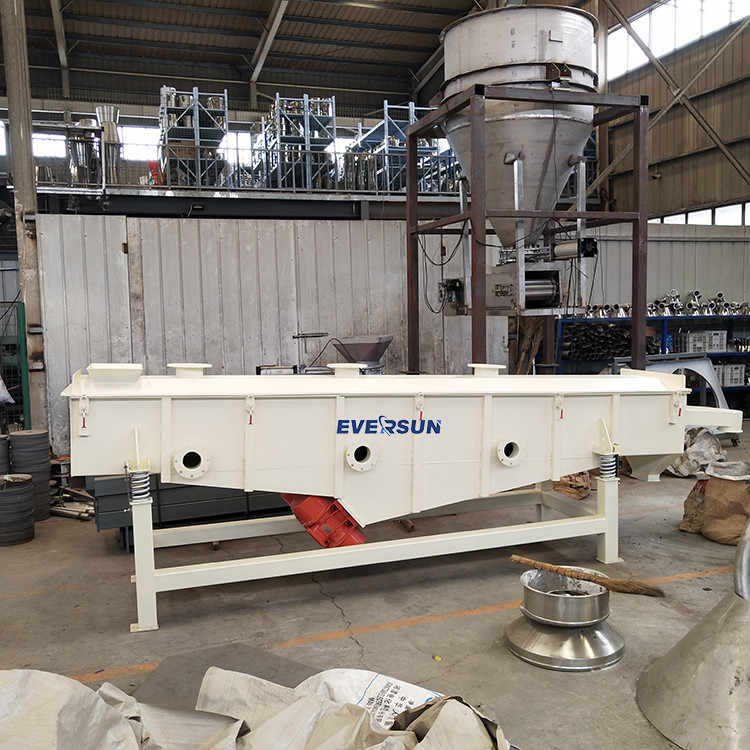

Mobile Linear Vibrating Screen Sand And Stone Mining Vibrating Screen 0

Product Feature


The screen machine is mainly composed of screen box, screen frame, screen mesh, vibration motor, motor base, vibration damping spring, support and so on. It has the following characteristics:

1, The machine adopts double vibration motor, vibration balance strong, adjust the vibration motor vibration force can change the amplitude of the screen machine.



2, The feed port is arranged with a distributor, which can promote uniform distribution and reduce the impact of multiple screens of materials.



3. The machine uses a reinforced damping spring to support the full weight of the screen body while reducing vibration to the ground.



4, The screen layout is reasonable, the screen adopts 304 stainless steel screen, wear-resistant and anti-corrosion, and at the same time, the bouncing ball is installed to reduce the screen blockage.



5. Reasonable discharging port design, reasonable layout of discharging port, can dislocation discharging at the same time, prevent material plugging on the screen surface.



6. The machine is supported by square steel, solid welding, fine grinding, beautiful appearance.

Scope of application


Suitable for the screening and classification of powder, granular materials, widely used in coal, hydropower, mining, building materials, chemical, plastics, abrasives, medicine, food, carbon, fertilizer and other industries.

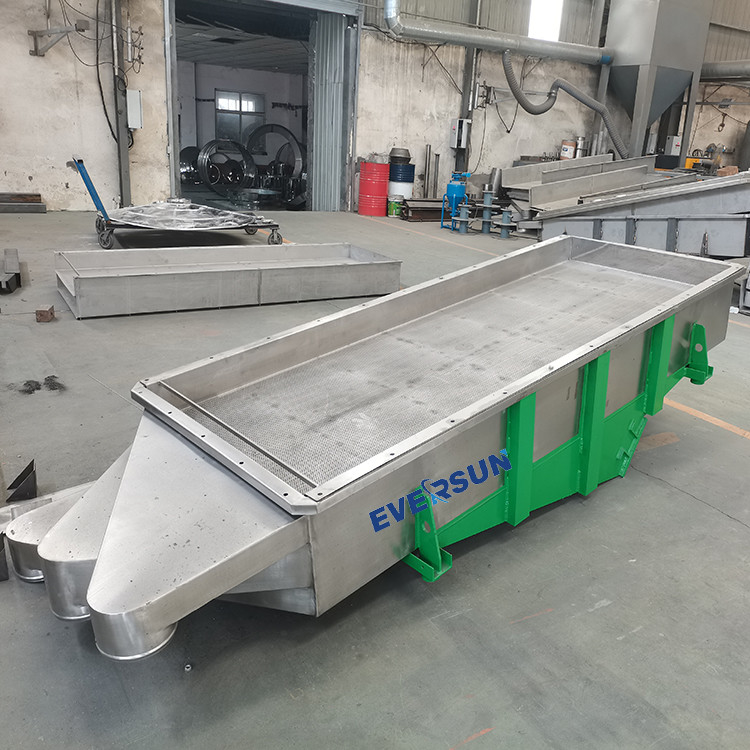

Mobile Linear Vibrating Screen Sand And Stone Mining Vibrating Screen 1

Product picture

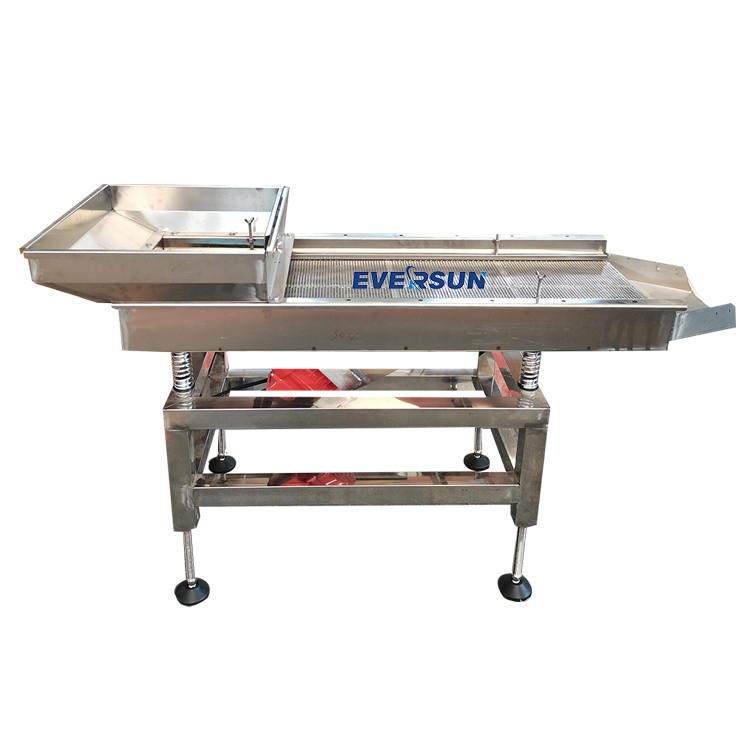

Mobile Linear Vibrating Screen Sand And Stone Mining Vibrating Screen 2

Mobile Linear Vibrating Screen Sand And Stone Mining Vibrating Screen 3

Mobile Linear Vibrating Screen Sand And Stone Mining Vibrating Screen 4
