| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Certification: | ISO,CE |
| Model Number: | B |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | within 5-15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Name: | Stainless Steel Vibrating Screen | Layer: | 1~5 |
|---|---|---|---|
| Maximum Feeding Size: | According To Material Characteristics | Material: | SUS304/316L,Carbon Steel, PP |
| Screen Mesh Material: | 304 Stainless Steel Wire Screen | Customized Service: | Support |
| High Light: | Double Deck Stainless Steel Vibrating Screen,Food Industrial Sieve Machine,Industrial Vibratory Screen Separator |
||

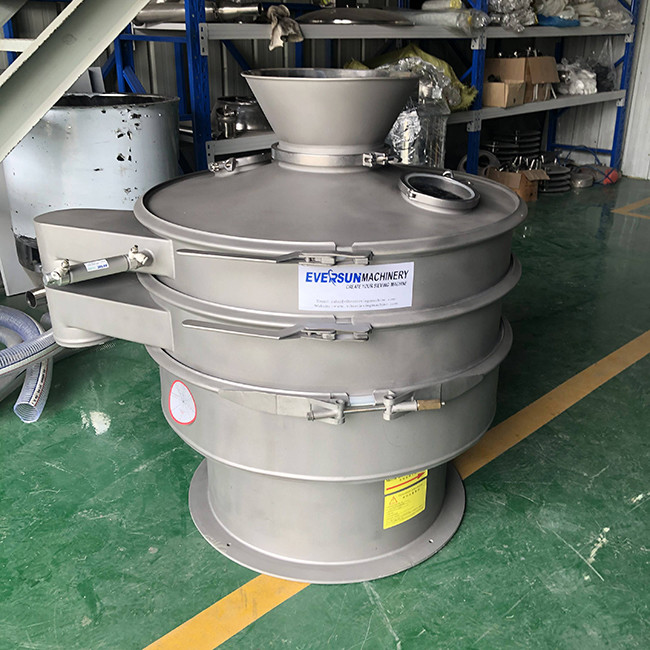

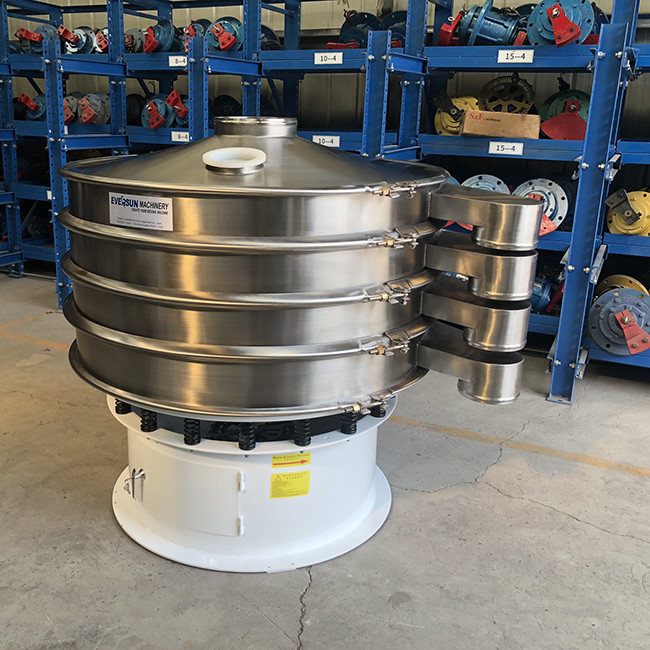

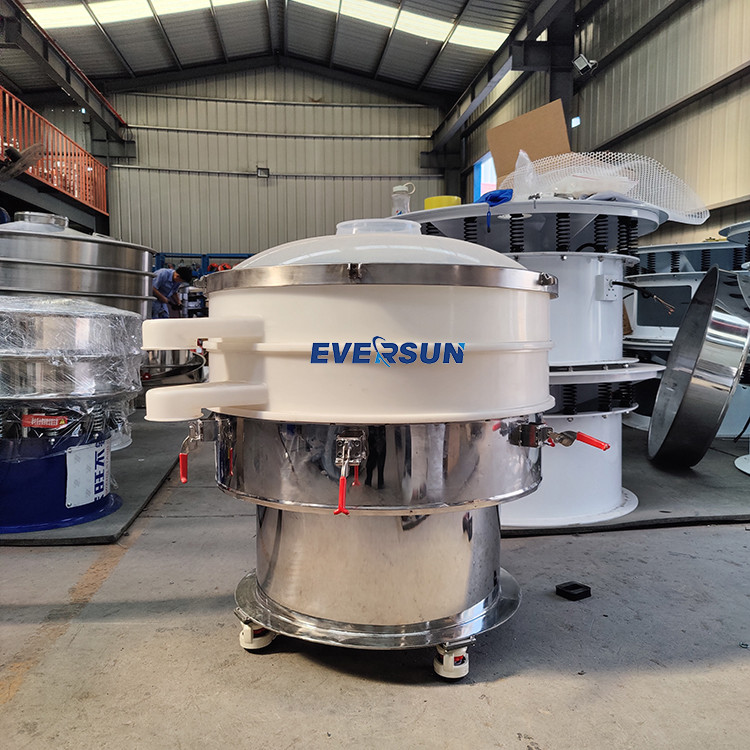

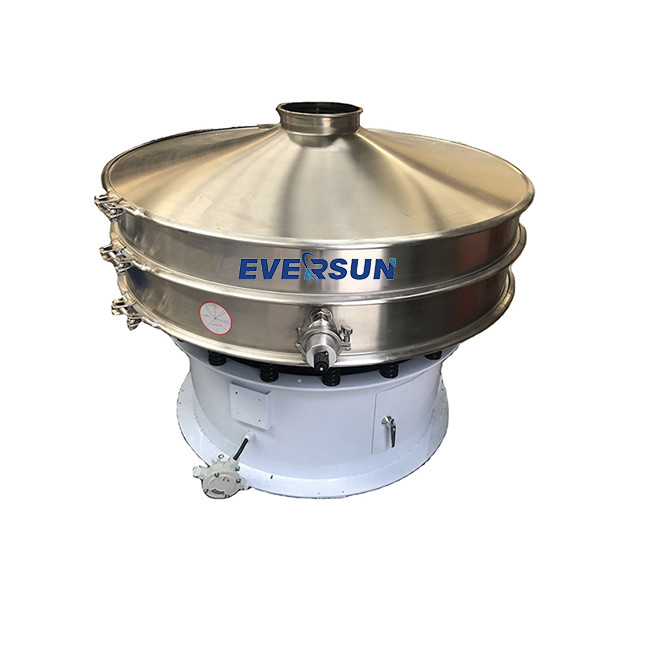

Product Description
With 30 years of experience and expertise, EVERSUN vibrating screen is proudly created to handle fine materials. Efficient screening of foreign bodies, filtration of impurities, grading of materials, to ensure high quality products. EVERSUN shakers are more efficient and more accurate than traditional shakers. Each machine can achieve six layers of screening, screening accuracy is higher. EVERSUN Shaker allows users to adjust the phase angles between the upper and lower ends of the motor to change the vibration path of the material on the screen surface. In this way, throughput and accuracy can be kept in a perfect balance. EVERSUN Shakers come in a variety of models to suit all industries and work on all production lines. EVERSUN Group can also provide customized machines and solutions to all customers according to their requirements.
Technical Parameter
Main Specification of vibrating screen, different size for different sieving capacity.
| Model No. | Screen Diameter (mm) | Power(kw) | Sizing Accuracy(%) | Capacity (kg/hour) |
| B-600 | 560 | 0.25~0.55 | 85~95 | 200 |
| B-800 | 760 | 0.55~0.75 | 85~95 | 500 |
| B-1000 | 950 | 0.75~1.1 | 85~95 | 800 |
| B-1200 | 1150 | 1.1~1.75 | 85~95 | 1200 |
| B-1500 | 1450 | 1.5 | 85~95 | 1600 |
| B-1800 | 1750 | 3~4.5 | 85~95 | 2000 |
Feature
1) Custom Service and High Capacity
Every part of our screening machine can be customized to achieve high productivity in any industry.
2) A wide range of applications
Our EVERSUN range of screening machines can be used in food, beverage, chemical, pharmaceutical, agricultural, recycling, metals and more.
3) Large range of screening sizes
Our sieve sizes range from 500 mesh (0.025mm) to 2 mesh (8mm) to meet all screening accuracy for particles, powders, mud, etc.
4) Automatic screen cleaning system & cost saving
Automatic screen cleaning system design, so that our machines work long hours, reduce maintenance costs.
5) Multiple material selection
The material of the machine is divided into two parts, the part in contact with the material and other parts, Yonke can choose different materials according to the actual demand, the material can be stainless steel, carbon steel, plastic.
Application
(1) Chemical powder: pigment, powder coating, Vc, lubricant, enamel powder, graphite, grinding powder, toner;
(2) Metal powder: iron powder, copper powder, titanium powder, alloy powder, stainless steel powder, tungsten powder, tungsten carbide, titanium oxide, nickel powder;
(3) Edible powder: sweetener, glycerin, sugar, spices, starch, pigment;
(4) abrasive: silicon carbide, silicon powder, glass beads, corundum;
(5) Other powders: laser powder, battery materials, cosmetics powder, magnetic materials, light calcium carbonate, new materials;
(6) High viscosity and high precision liquid filtration.
