| Place of Origin: | China |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO,CE |
| Model Number: | JBJ |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | wooden box |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000SETS/YEAR |
| Product Name: | Horizontal Ribbon Mixer | Material: | Carbon Steel/stainless Steel304/316L |
|---|---|---|---|
| Application: | Sticky Or Cohesive Powder Particles And Liquid | Optional Functions: | Heating, Cooling, Positive Pressure, Vacuum |
| Volume: | Customized | Blade: | Double Or Triple Blade |
| High Light: | Stainless Steel Horizontal Ribbon Mixer,Powder Horizontal Ribbon Mixer,Double Blade Ribbon Blender Machine |
||
Product introduction

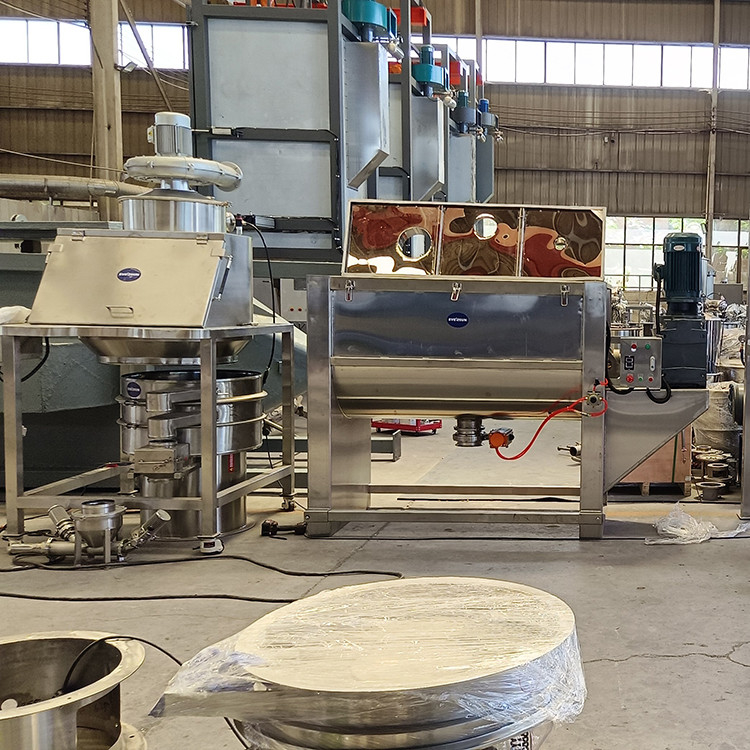

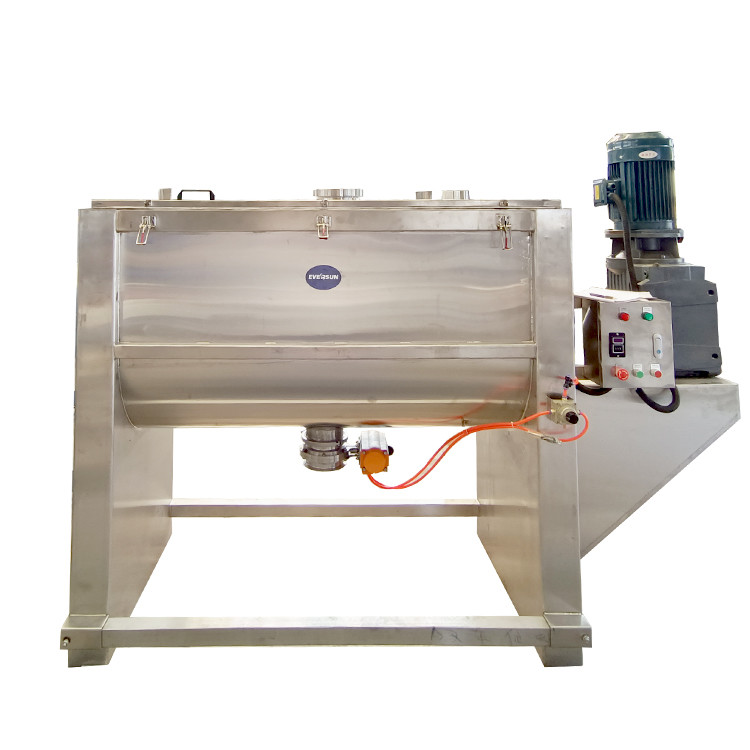

Stainless Steel Carbon Steel Horizontal Ribbon Mixer For Powder Mixing
Ribbon mixer machine is generally used for mixing sticky or cohesive powder particles and mixing liquid and paste materials added to the powder particles. The horizontal ribbon mixer is composed of a U-shaped container, a screw belt mixing blade, and a transmission component. U-shaped long body cylinder structure, to ensure the mixed material (powder, semi-fluid) in the body of the small resistance movement.
The positive and negative rotating screw is installed on the same horizontal axis, forming a low power and efficient mixing environment, the screw blade of the powder ribbon blender is generally made of double or three layers, the outer spiral material from both sides to the central collection, the inner spiral material from the central to both sides of the transmission can make the material in the flow to form more eddy current, speed up the mixing speed, improve the mixing uniformity.
Technical specification
| Model | Power | Tank size(m) |
Gear reduction model number |
Material |
| JBJ-500 | 5.5KW | 1.22*0.73*0.85 | 250 | Carbon steel/stainless steel |
| JBJ-1000 | 7.5KW | 1.8*0.9*1.05 | 350 | Carbon steel/stainless steel |
| JBJ-1500 | 11KW | 2*1*1.15 | 350 | Carbon steel/stainless steel |
| JBJ-2000 | 11-15KW | 2.2*1.2*1.35 | 350 | Carbon steel/stainless steel |
| JBJ-3000 | 15-18.5KW | 2.5*1.26*1.45 | 350 | Carbon steel/stainless steel |
| JBJ-5000 | 22KW | 2.9*1.5*1.65 | 400 | Carbon steel/stainless steel |
Features
The horizontal ribbon mixer mainly has the following features:
1. U-shaped barrel structure, smooth operation, uniform mixing, no dead angle, clean discharge, wide application range.
2. Using inside and outside double-layer screw belt staggered mixing, the mixing speed of horizontal ribbon mixer is fast and high uniformity.
3. Bearing at both ends of the ribbon mixture, the material is not easy to enter, a low maintenance rate.

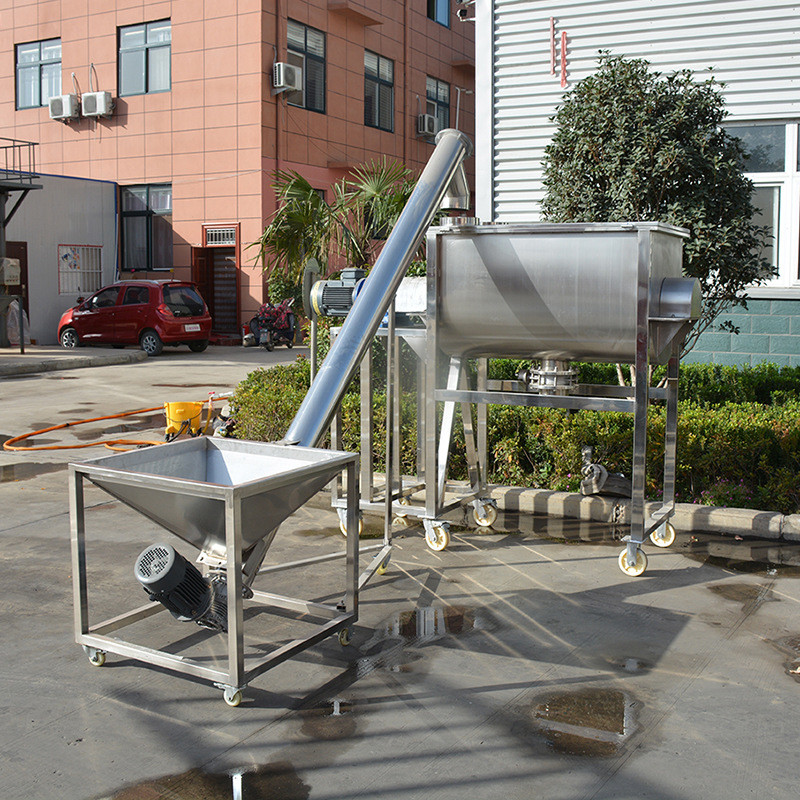

4. The screw conveyor is easy to feed, the feed port of horizontal ribbon mixer is flush with the ground, and the feed is labor-saving and convenient.
5. Bottom discharge method of horizontal ribbon mixer: powder material adopts a pneumatic large-opening structure, which has the advantages of fast discharge and no residue; high-fineness material or semi-fluid material adopts a manual butterfly valve or pneumatic butterfly valve, manual butterfly valve is economical and applicable, the pneumatic butterfly valve has good sealing performance for semi-fluid, but the cost is higher than that of the manual butterfly valve.
Opening method
Different forms of openings can be set on the cylinder cover of the mixer to meet the use under different working conditions. According to the opening function can be set up manhole, cleaning door, feeding port, exhaust port, dust removal port, etc., the opening form has flange type standard opening, quick opening with cover door; The mixer can be set to fully open the cylinder cover, which is convenient for cleaning the inside of the equipment.
