| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Certification: | ISO,CE |
| Model Number: | EXZS |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | within7- 15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Name: | Industrial Powder Sifter | Type: | Electric |
|---|---|---|---|
| Layer: | 1~5 | Usage: | Separation Screening |
| Mesh Size: | 2~500 | Advantage: | Self-cleaning Bouncing Ball |
| High Light: | Explosion Proof Industrial Powder Sifter,2000mm Industrial Powder Sifter,Chemical Powder Vibro Sifter Machine |
||

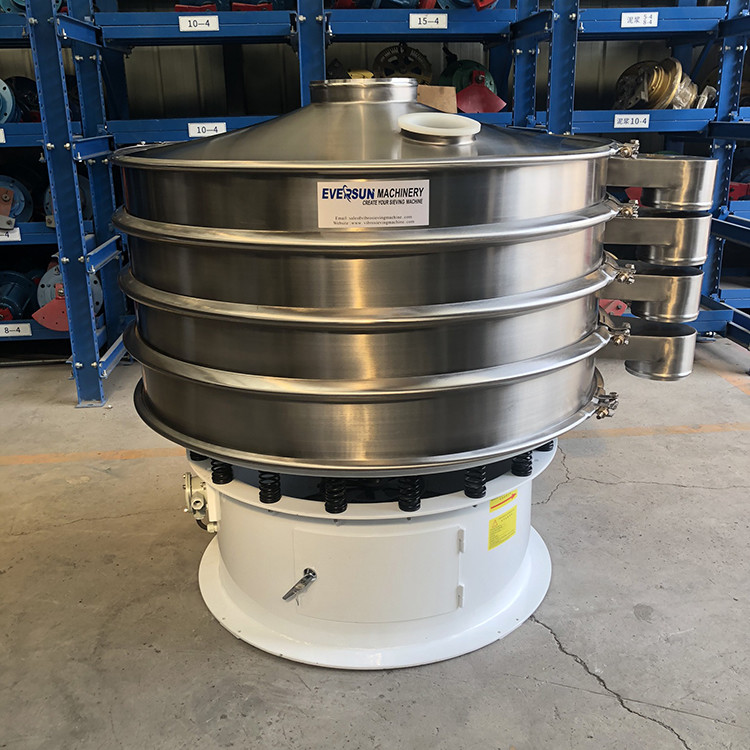

400-2000 Diameter Explosion-Proof Industrial Powder Sifter For Chemical Powder
Introduction
The industrial powder sifter produced by EVERSUN is suitable for the screening, grading and filtering of any powder, particle and mucus. It is a kind of high precision screening machinery, can work 24 hours, to meet the continuous production of enterprises. The machine is driven by the motor hammer vibration, the screen body produces horizontal, vertical, inclined three dimensional power (three dimensional vibrating screen), so that the material is thrown up on the screen and outward rotation/diffusion to the discharge port discharge, the material in the screen motion, fine particle layer through the screen, through the selection of the installation of the corresponding screen and screen layer number to make the material classification or filtration, The sorted materials are discharged separately from the respective discharge ports. From the material is divided into standard type industrial powder sifter and ordinary type industrial powder sifter , the standard type and material contact part is 304 stainless steel material, the base is carbon steel material, the ordinary type of the whole body is carbon steel material.
Technical Parameter
|
Model |
Equipment diameter | Power(KW) | Deck | Effective screening area(m2) |
Screen mesh |
| EXZS-600 | 600mm/24inch | 0.25 | 1-5 | 0.2289 |
20 microns to 20 mm |
| EXZS-800 | 800mm/32inch | 0.55 | 0.4183 | ||
| EXZS-1000 | 1000mm/40inch | 0.75 | 0.6359 | ||
| EXZS-1200 | 1200mm/48inch | 1.1 | 0.9499 | ||
| EXZS-1500 | 1500mm/60inch | 1.5 | 1.5386 | ||
| EXZS-1800 | 1800mm/70inch | 3 | 1-4 | 2.2687 | |
| EXZS-2000 | 2000mm/78inch | 4.5 | 2.8893 |
Feature
1. High efficiency: Solve the problem of manual screening, any powder, mucus can be screened, improve the production efficiency of enterprises
2. Screening thoroughly: Through the screen classification, impurity removal and multi-layer screening, to achieve the screening effect you want.
3. Unique grid design: simple operation, convenient cleaning, net change only 5 minutes
4. Wide range of screening materials: can be used single or multi-layer, can be added to 5 layers
5. High quality accessories: 304 stainless steel ring, reinforced machine, silicone seal strip, prevent dust escape. Silicone ball, vibration bounce does not plug mesh, high quality spring, uniform distribution of vibration force.
6. Thickened base: base is divided into carbon steel and stainless steel two kinds of materials, corrosion resistance, anti-aging, strong wear resistance, is the basis of your efficient screening.
7. High quality plate: The use of high quality cold rolled thickened steel plate, green environmental protection, anti-corrosion and moisture-proof, exquisite technology, no electrostatic spray, to ensure the reliable quality of products.
Application Industry
Chemical industry: resin, paint, industrial drugs, cosmetics, paint, Chinese powder, etc.
Food industry: sugar powder, starch, salt, rice flour, milk powder, soy milk, egg powder, soy sauce, juice, etc.
Metal, metallurgical mining: aluminum powder, lead powder, copper powder, ore, alloy powder, electrode powder, manganese dioxide, electrolytic copper powder, electromagnetic materials, grinding powder, refractory materials, kaolin, lime, alumina, heavy calcium carbonate, quartz sand and so on.
Pollution treatment: waste oil, waste water, dyeing and finishing wastewater, auxiliaries, activated carbon, etc.
