| Place of Origin: | China |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO,CE |
| Model Number: | TD |
| Minimum Order Quantity: | 1 |
| Price: | negotiable |
| Packaging Details: | wooden box |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000SETS/YEAR |
| Name: | Bulk Bag Lifter Unloader Machine | Structural Material: | Carbon Steel,stainless Steel304/306L |
|---|---|---|---|
| Application: | Unloading Particle/powder/bulk Solid | Control System: | Control Box/control Cabinet /PLC System |
| Advantage: | Set Unpacking, Dust Removal And Integration | Discharge Capacity: | 0.3 To 2 Tons Per Bag |
| High Light: | Bulk Bag Unloading Machine,Food Bulk Bag Lifter Unloader Machine,Stainless Steel 316L Bag Dumping Station |
||

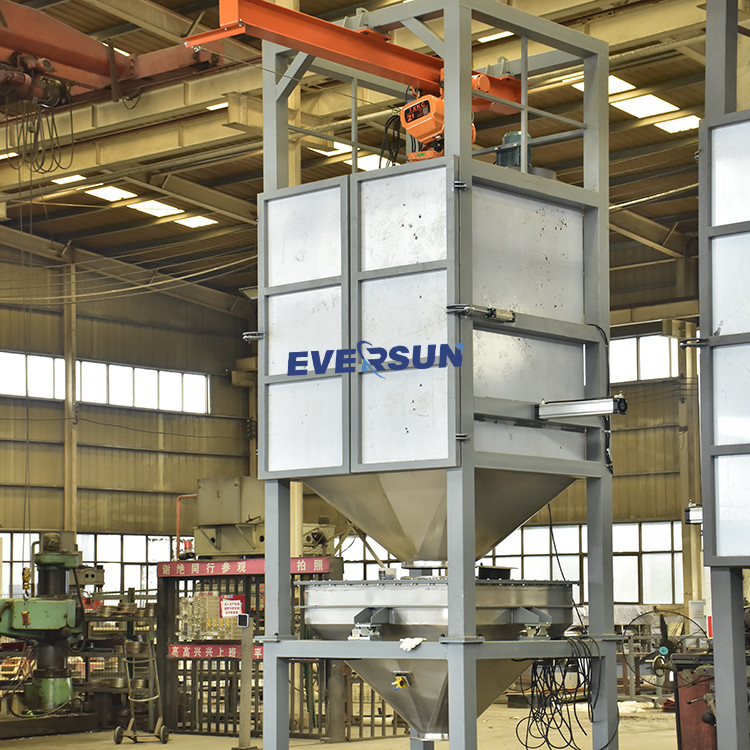

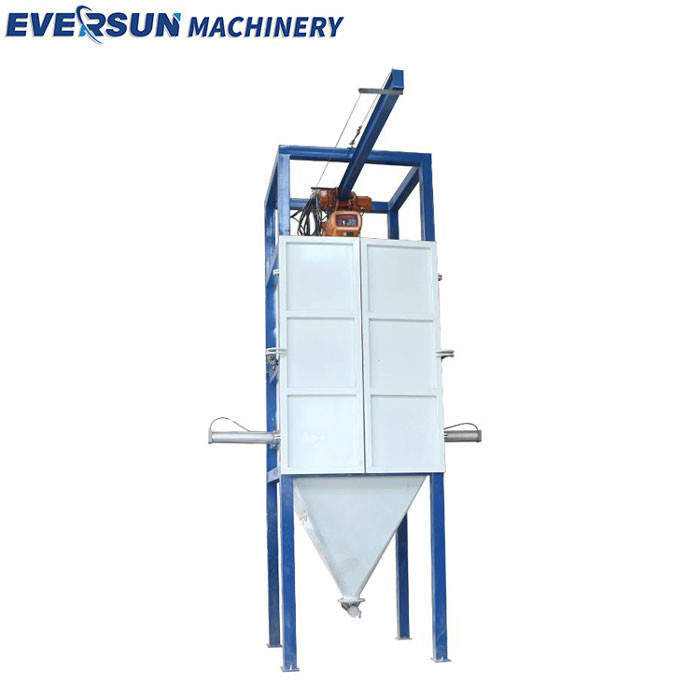

Product Introduction
| Product name |
Bulk Bag Unloading Machine Food Bulk Bag Lifter Unloader Machine Dumping Station |
| Big unloading specification | ≤ 1000*1000*1600 |
| Loading capacity | 500~2000KG or customized |
| Structure materials | Carbon steel,SUS304/316L |
| Structure dimension | Based on the request of clients |
| Product type | Automatic by PLC |
| Working power supply | AC 380 V ± 5% 50Hz |
| Bag unpacking ability | 10-30 bags/hour |
Bulk bag unloading machine can help you solve the unloading problem of large volume and weight bulk bag materials. It is mainly used for unpacking and unloading tons of granular and powdery materials, such as feed, seeds, food, chemical raw materials, condiments, medical raw materials, etc. It integrates pneumatic percussion flow aid, vibration, weighing, dust removal and is equipped with a high degree of automation. It is equipped with a bag breaker, which only needs to lift the big bag with the help of electric hoist, forklift and other lifting equipment. During this period, the bag beating equipment will beat the bag to promote the material falling, so as to complete the unpacking and unloading of large bag materials.
The machine works mainly with the help of the control box to complete this series of operations. We can also help you configure electric cabinet or PLC system to meet your diverse needs.
Product Aavantages
1. The structure of bulk bag unloading machine is simple and reasonable, and the operation is convenient.
2. It is also widely used in petrochemical industry, bulk drug, plastic, carbon black, mining, food additives, cement and other industries.
3. It can be equipped with material hopper, combined with glove box design, to achieve 100% isolation of dust and gas from the operator.
4. It can prevent dust from flying and reduce material and energy consumption.
5. A weighing device can be installed in the unloading bin to realize the weighing and measuring of hopper materials.
6. The configuration of dust removal interface, connected with the user dust removal system, dust collection, protect the site environment clean health.
7.It can be connected according to the actual situation of screening, transportation, packaging equipment, can realize the material classification, dust-free transportation, packaging and other actions.
8. Dust-free closed system ensures no dust leakage in the process of work, improve the working environment.
Working principle
Before feeding, open the top bin door of the bulk bag unloading machine , lift the raw materials into the feeding bin by the hoisting device, open the side bin door, open the door of bag discharging bin, open the bag opening manually, and close the door of bag discharging bin and side bin door manually;
1. When discharging, the dust removal device starts, and the dust generated in the feeding process is collected by the dust collector.
2. After the feeding is completed, close the top cover plate, start the backblowing device, and reverse blow the dust attached to the filter element to the inner bin of the feeding.
Application case
Bulk bag unloading machine is widely used in food, chemical, pharmaceutical, plastic, lithium battery, new materials and other industries for tons of packaging powder, granular material unpacking and unloading.
