| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO,CE |
| Model Number: | JB |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | within 8-15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Gas Flow: | 240-460 Or Customized | Surface Treatment: | Mirror Polishing/sand Blasting |
|---|---|---|---|
| Advantage: | Low Noise Level | Sieving Mesh: | 150~500 |
| Material: | Q235A、SUS304 | Application: | Fibrous, Viscous, Electrostatic And Adsorbent Material |
| High Light: | Baobab Processing Centrifugal Sifter,SUS304 Centrifugal Sieve,Material Screening Airflow Centrifugal Sifter |
||

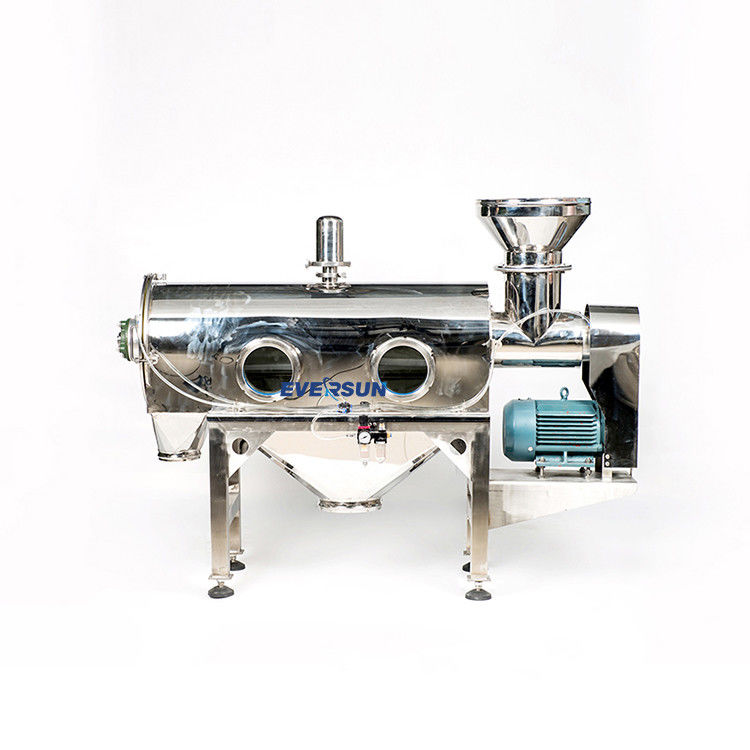

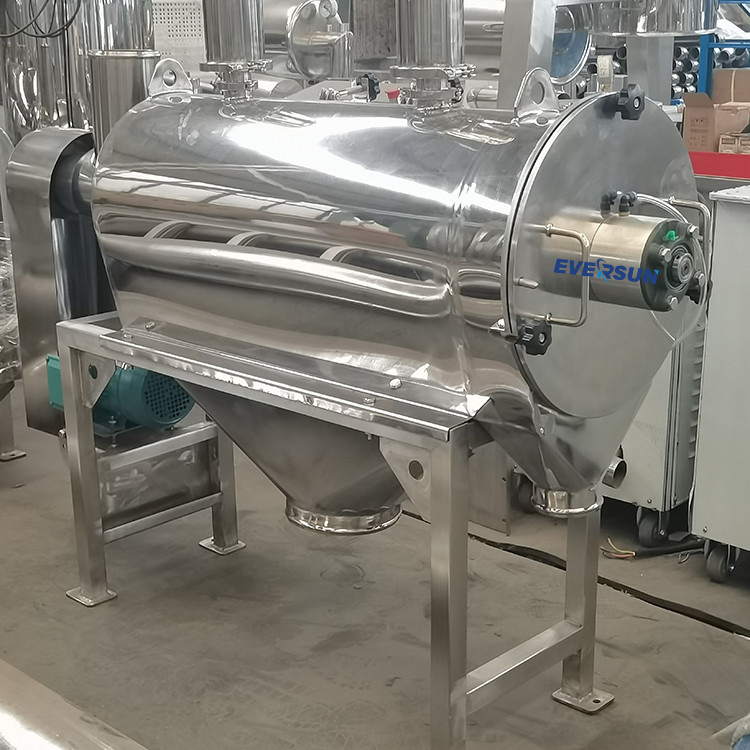

Baobab Processing Machine Centrifugal Airflow Sifter For Material Screening
Centrifugal airflow sifter is a screening equipment for powder material screening and classification, suitable for 150-500 material screening, its screening efficiency is relatively high, can be continuous operation, commonly used to solve other kinds of screening machine difficult high precision screening materials, such as 120-180 light calcium, 400 activated calcium, 320-500 zinc powder, etc., can get large output, At the same time, the screening accuracy is above 95%.
The centrifugal airflow sifter is cylindrical, placed in the body, the material through the screw conveying system, and air mixing, atomization into the net cylinder; Through the wind wheel blade in the net cylinder, the material is subjected to centrifugal force and cyclone propulsion force at the same time, so that the material can be sprayed through the net and discharged from the fine material outlet, and the material that can not go through the net is discharged from the coarse material outlet along the wall of the net cylinder.
|
Model
|
Gas Flow
|
Screen Mesh(mesh)
|
Cylindrical Screen Size
|
Motor Power
(kw)
|
|
JB18-85
|
240
|
5-500
|
180×850
|
1.5
|
|
JB30-100
|
300
|
300×1000
|
3
|
|
|
JB50-130
|
460
|
500×1300
|
4
|
Product Feature
1. With a single particle followed by the air flow through the screen, the output of the air flow screen is large, high efficiency, no mesh plugging net empty, precision fineness.
2. Can adapt to different fineness and different output of a variety of difficult screening materials screening requirements, energy saving, high efficiency and environmental protection effect.
3. Strong and durable: the life of fine screen is extended more than 10 times, the output is stable, the power consumption is reduced, the finished powder quality is better.
4. Perfect combination: through the screw feed to crush the mass and the use of airflow sieve function, increase the accuracy of screening and penetration rate.
5. Support non-standard customization, complete specifications.
Application
It is widely used in a variety of difficult to sift fine powder, Such as light calcium powder, activated calcium powder, activated carbon powder, starch, Chinese medicine powder, fly ash, zinc powder, graphite powder, quartz powder, gold powder, clay powder, hawthorn powder, fruit and vegetable powder, calcium hydroxide powder, pesticide powder, Konjac powder, phosphor, wood powder, flour, epoxy tree powder, manganese dioxide, sulfur powder, aluminum oxide powder, formica powder, magnesium oxide, perlite powder, iron powder, etc.
