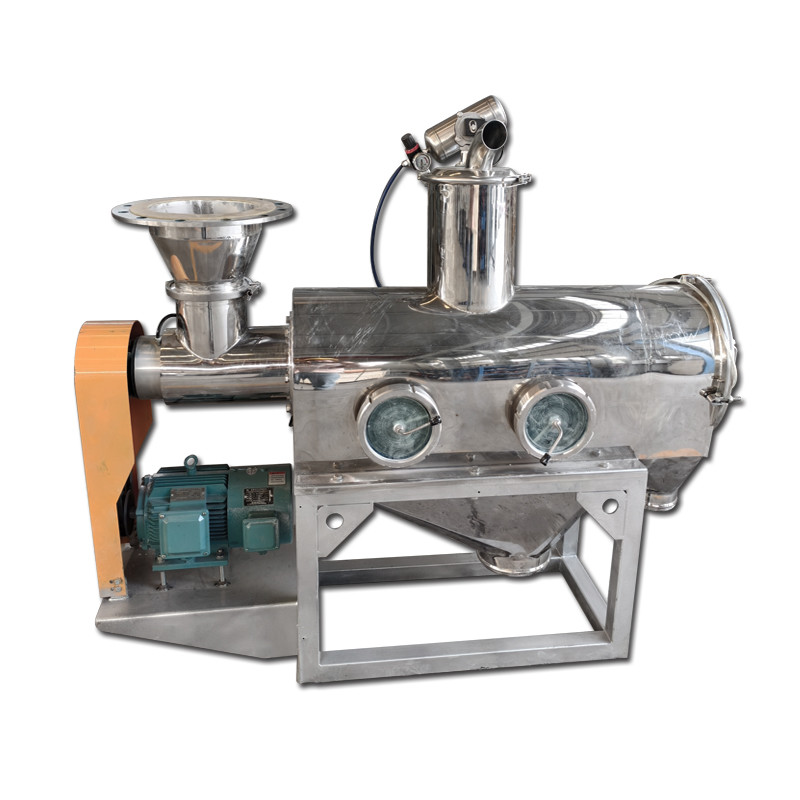

Air-flow Sifter Machine

Product description

The air flow screen is a highly efficient screening equipment. It uses the air flow generated by a fan as power and combines it with the vibration of the screen to enable materials to complete fine classification in a suspended state, and even ultrafine powders can be precisely screened. It has excellent anti-clogging performance and can easily handle materials with high humidity and prone to agglomeration. The fully enclosed structure is dust-proof and environmentally friendly. It also features a compact structure, low energy consumption, and easy operation and maintenance. It is widely used in the screening of dry powder materials in multiple industries such as chemical engineering, food, and medicine.

Working principle

The air flow screen uses the directional air flow generated by the fan as the power source. After the material enters the screen body from the feeding port, it is suspended under the action of the air flow field. Fine particles are driven by the buoyancy of the air flow to pass through the screen and become the underscreen material, while coarse particles move along the screen towards the discharge port due to gravity. Meanwhile, some of the equipment uses mechanical vibration to assist the screen in high-frequency vibration, preventing materials from clogging the screen holes. This enables efficient and precise screening of fine powder, micro-powder, high-moisture or easily agglomerated materials, and is widely used in multiple industries such as chemical engineering and food.

Product characteristics

- High-efficiency and fine screening: It achieves the classification of micron-level ultrafine powder by air flow power, with a screening accuracy of over 95%, far exceeding that of traditional vibrating screens.
- Excellent anti-clogging performance: The combination of air flow scouring and screen vibration effectively disperses wet powder and electrostatically adsorbed materials, solving the problem of adhesion and clogging of the screen.
- Wide material adaptability: It is suitable for dry powder materials in the chemical, pharmaceutical, food and other industries, especially for special powders with high humidity and easy agglomeration (such as starch, nanomaterials).
- Energy conservation and low consumption: The power relies on fans, and the energy consumption is reduced by 30% to 50% compared with traditional equipment, resulting in lower operating costs.
Compact and environmentally friendly design: The fully enclosed structure, in combination with the dust removal interface, controls the overflow of dust and meets environmental protection requirements. Small in size, easy to install and space-saving.
- Convenient and worry-free maintenance: The modular structure supports quick disassembly, assembly and cleaning. There are no complex transmission components, resulting in fewer malfunctions and lower maintenance costs.
Continuous production adaptation: It can be seamlessly integrated into automated production lines to achieve 24-hour continuous screening and enhance production efficiency.

Application

Chemical industry: can be used for screening of various chemical raw materials, such as plastic particles, rubber powder, paint pigments, fertilizers, activated carbon, etc. For example, in the production of plastics, airflow screens can grade plastic particles to ensure uniform product size and improve product quality.

Food industry: Suitable for screening of flour, starch, milk powder, powdered sugar, condiments, food additives and other materials. Taking flour production as an example, the airflow screen can remove impurities and coarse particles in flour to ensure the fineness and quality of flour.

Pharmaceutical industry: It has good screening effect for pharmaceutical intermediates, raw materials, pharmaceutical excipients, Chinese medicine powder, etc. For example, in the pharmaceutical process, the airflow screen can screen the drug powder into different particle sizes, which is convenient for the production of subsequent preparations and ensures the stability and effectiveness of the drug.

Mining: It can be used for the screening of metal mineral powder and non-metal mineral powder, such as quartz sand, kaolin, graphite powder, aluminum powder, etc. In the processing of kaolin, the air flow screen can remove the coarse particles and impurities, and improve the purity and whiteness of kaolin.

Other industries: Can also be used in abrasives, refractories, electronic materials, 3D printing materials and other fields. For example, in the production of 3D printing materials, the airflow screen can accurately screen metal powder or polymer material powder to meet the strict requirements of 3D printing for material particle size.

Model	Screen cage size(mm) (diameter*length)	Screen material	Structure material	Mesh size	Power (kw)
EQLS-18065	180mm*650mm	Stainless steel or Nylon screen	Q235A	≤1000	2.2
			SUS304
EQLS-30010	300mm*1000mm		Q235A	≤1000	4
			SUS304
EQLS-50013	500mm*1300mm		Q235A	≤1000	5
			SUS304
Machine can be customized based on your need































Product details

Product shows

Packaging & Shipping

Why choose us







About us

Company Profile

We have been specializing in the production of Screening and conveying equipment for 13 years. China's vibrating screen industry top three. And we have done matching and OEM for many large companies. Including the world's top vibrating screen manufacturer, Sweco, USA, we have OEM for his China region. And our products are often exported to Australia, Thailand, Indonesia, New Zealand and other countries.

We welcome customers or dealers to visit our factory and will arrange everything for you. Our factory address: West of the industrial and commercial office of Da Zhaoying Town, Xinxiang City, Henan Province.
