Closed Bag Dump Station Bulk Material Discharging Unpacking Machine

Basic Information
Place of Origin: China
Brand Name: EVERSUN
Certification: ISO,CE
Model Number: TD
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: wooden box
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000SETS/YEAR
Detail Information
Name: Ton Bulk Bag Discharger Structural Material: Carbon Steel,stainless Steel304/306L
Application: Unloading Particle/powder/bulk Solid Control System: HIM Touch Screen
Advantage: High Degree Of Automation Size: Customized Size
High Light:

Closed Bulk Bag Discharging Station


Unpacking Bag Dump Station


Stainless Steel 304 Bag Dumping Station

Product Description

Product Introduction

 Product name

 Environment-Friendly Closed Bulk Material Discharging Machine Unpacking Machine

 Big unloading specification  ≤ 1000*1000*1600
 Loading capacity  500~2000KG or customized
 Structure materials  Carbon steel,SUS304/316L
 Structure dimension  Based on the request of clients
 Product type  Automatic by PLC
 Working power supply  AC 380 V ± 5% 50Hz
 Bag unpacking ability  10-30 bags/hour












Bulk material discharging machine is mainly used for continuous unpacking of 500-2500kg ton bag materials, to achieve ton bag conveying, automatic unpacking, waste bag automatic packaging and other automatic production line, the production line is high degree of automation, fast unpacking speed, without manual participation.


The bulk material discharging machine is lifted to the feed port of the equipment by the electric hoist, the bulk material discharging port is opened manually, the flow valve is opened and assisted by the vibration device to make the powder and granular materials in the ton bag fall into the cache tank by gravity to complete the unpacking and unloading work. Large bag opening station replaces traditional manual unpacking, clean production environment, no dust leakage. It is mainly used for unpacking and unloading tons of granular and powdery materials, such as feed, seeds, food, chemical raw materials, condiments, medical raw materials, etc.

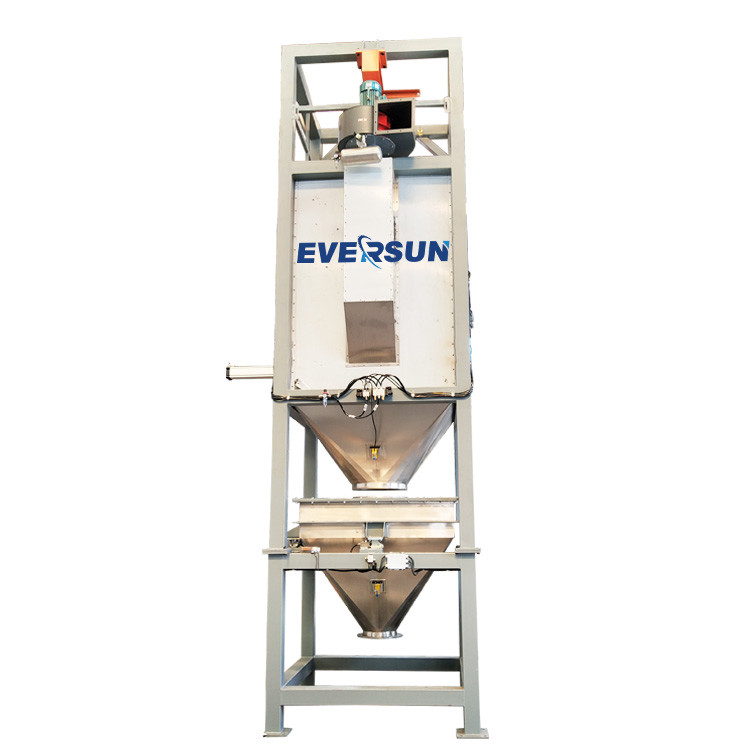

Closed Bag Dump Station Bulk Material Discharging Unpacking Machine 0


Product Aavantages

1. The structure of bulk material discharging machine is simple and reasonable, and the operation is convenient.


2, the use of anchor chain electric hoist, simple structure, flexible and convenient operation.


3. Replace traditional manual unpacking and improve production efficiency.


4. Entrainment device ensures no dust leakage during unloading.


5. Beating device can better ensure smooth discharge, prevent material retention.


6. The configuration of dust removal interface, connected with the user dust removal system, dust collection, protect the site environment clean health.


7. 1) After the unpacking of tons of bags, the materials can be integrated into unpacking and feeding through pipe chain conveyor, screw conveyor, pneumatic conveying system and other conveying equipment.

     2) The waste bags after the ton packing machine can be matched with the waste bag packing robot to realize the automatic collection, strapping and packing of waste bags. Can also take the manual unpack bag, reuse the bag.

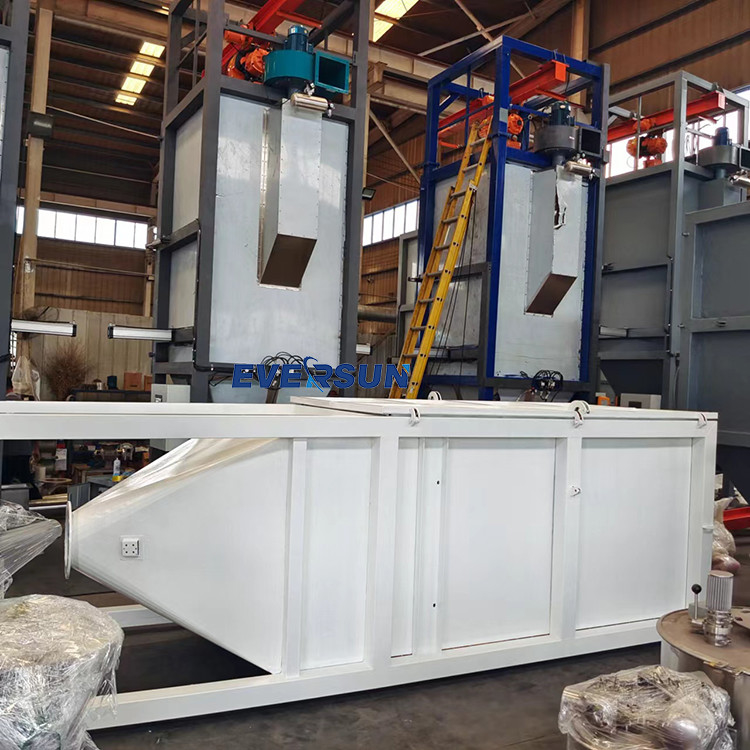

Closed Bag Dump Station Bulk Material Discharging Unpacking Machine 1


Operation process

Operation process of bulk material discharging machine:

1. The electric hoist in the equipment is lifted and fixed on the beam of the body, and the bracket is fixed at the same time to achieve the ideal working effect.


2, tons of bag by electric hoist, to the top of the hopper, bag mouth into the hopper inlet, and then close the bag valve, open the bag mouth, and then let the material in the bag smoothly into the hopper, so as to achieve dust-free operation, ensure the quality of materials.


3. The material falls to the rotary valve at the bottom through the hopper, so as to enter the specified equipment, or the vacuum conveying pipe is connected at the bottom of the equipment, and the material is transferred to the specified position by sealing.


4. The dust collector will filter out the dust produced, and the clean tail gas will be discharged into the atmosphere, so that the operator can work in a clean and tidy environment.

Closed Bag Dump Station Bulk Material Discharging Unpacking Machine 2
