| Place of Origin: | China |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO,CE |
| Model Number: | JBJ |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | wooden box |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000SETS/YEAR |
| Product Name: | Horizontal Ribbon Blender | Material: | Carbon Steel/stainless Steel |
|---|---|---|---|
| Application: | Medicine , Chemicals ,food,etc | Adjustable Frequency: | 0-33 RPM |
| Volume: | 300-8000L Or Customized | Function: | Mixing Raw Material |
| High Light: | U Type Ribbon Blender Machine,Multifunctional Ribbon Blender Machine,Stainless Steel Industrial Ribbon Blender |
||
Product introduction
Multifunctional Powder Stainless Steel U - Type Ribbon Blender Machine
Ribbon blender machine is a new type of high efficiency, high precision mixing equipment, a wide range of application, widely used in chemical, pharmaceutical, food, mining and other industries, suitable for all kinds of powder, particles, and paste materials. This machine is composed of mixing tank, spiral stirring blade and transmission parts. The inner wall of the body is made of imported stainless steel, with smooth, easy to clean, acid and alkali resistance, wear resistance and so on. The blade is made of thickened stainless steel with double blade design. Two-way S - shaped spiral blade, mix fast, even! All the motor adopts copper wire motor, using the famous factory swing gear deceleration; The large shaft of the equipment can be detachable, and the splint nut at both ends can be removed by pulling out the splint, which greatly increases the service life. maintenance.
The equipment is horizontal mixer, discharge height can be customized according to requirements.
Technical specification
| Model | Power | Tank size(m) |
Gear reduction model number |
Material |
| JBJ-500 | 5.5KW | 1.22*0.73*0.85 | 250 | Carbon steel/stainless steel |
| JBJ-1000 | 7.5KW | 1.8*0.9*1.05 | 350 | Carbon steel/stainless steel |
| JBJ-1500 | 11KW | 2*1*1.15 | 350 | Carbon steel/stainless steel |
| JBJ-2000 | 11-15KW | 2.2*1.2*1.35 | 350 | Carbon steel/stainless steel |
| JBJ-3000 | 15-18.5KW | 2.5*1.26*1.45 | 350 | Carbon steel/stainless steel |
| JBJ-5000 | 22KW | 2.9*1.5*1.65 | 400 | Carbon steel/stainless steel |
Features
1. Good sealing, the use of three sealing effect, asbestos wire, rubber ring, sealing ring, do not have to worry about leakage damage and other problems;
2. The mixer discharge can be manual, electric cylinder discharge, to meet your diverse needs;
3. The double screw belt inside and outside the mixer, the big shaft drives the screw belt to turn over, the double screw belt makes the material flow bidirectional, to achieve uniform mixing;
4. High precision thickening butterfly valve, can be empty operation, convenient and reliable;
5. High degree of automation, the machine is controlled by the control panel, can also be a control cabinet, more convenient operation, safe and reliable;
6. In the need of heating or cooling occasions, can be configured with jacket, heating methods have electric heating and heat conduction oil heating two ways to choose: electric heating is convenient, but the heating speed is slow, high energy consumption. Oil heating needs to be equipped with oil pan and oil guiding power, pipeline.
Product picture

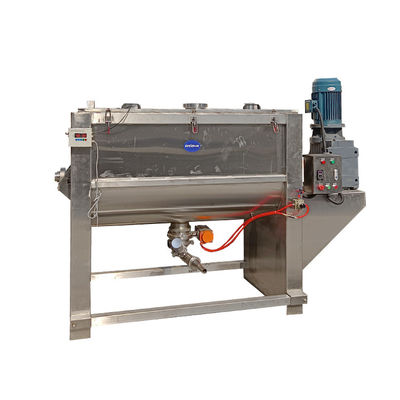

The following figure shows several pictures of the Ribbon blender machine. We can customize different types mixer according to your needs. If you want to know more about product informations, or consult smart powder solutions, please contact us.
