| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Certification: | ISO,CE |
| Model Number: | XK |
| Minimum Order Quantity: | 1 set |
| Price: | negotiate |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | within 8-15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Name: | Vacuum Conveyor | Diameter: | Customizable |
|---|---|---|---|
| Type: | Electric Type | Feature: | High Efficiency And Low Cost |
| Application: | Transport Powder/particles | Capacity: | 10t/h Or Customized |
| High Light: | 10t/h Vacuum Conveyor Systems,OEM Automatic Transfer Conveyor Systems,Powder Transfer Conveyor Systems |
||
Product introduction

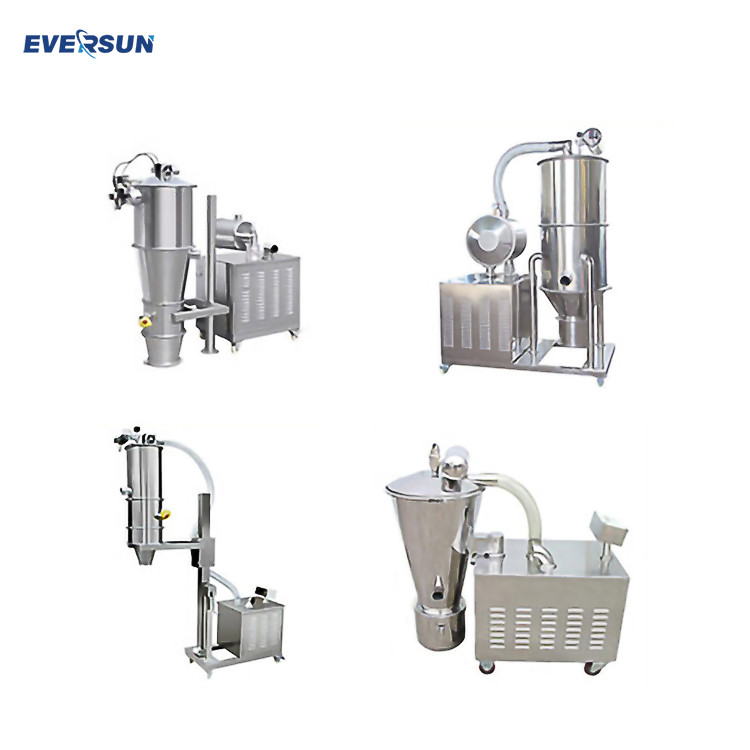

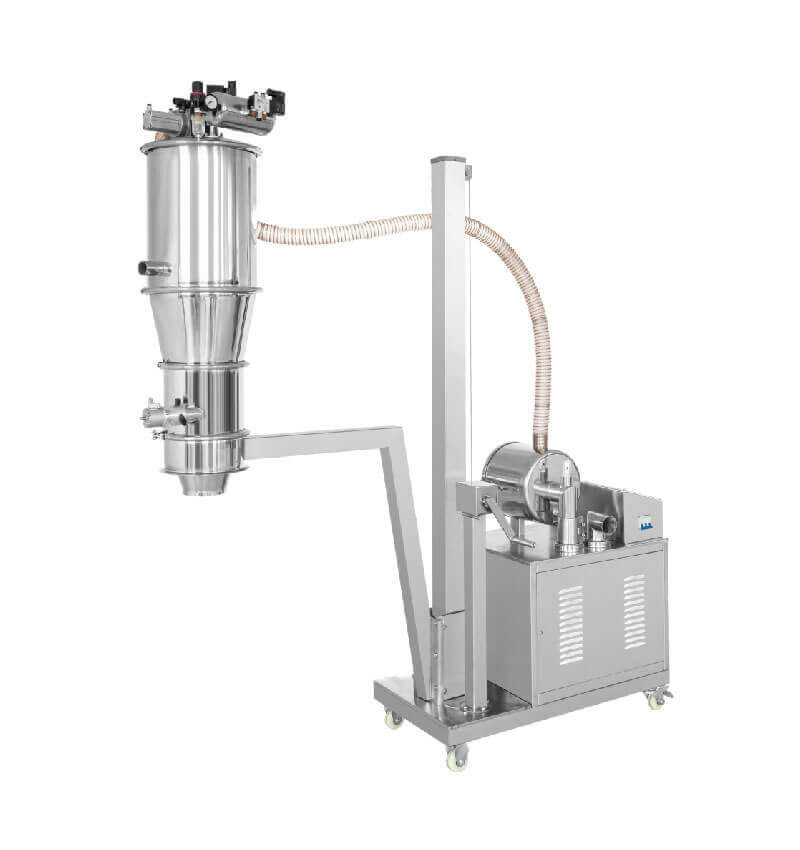

OEM Customizable Automatic Transfer Conveyor Vacuum Conveyor System For Powder
The vacuum conveyor is the vacuum conveying equipment of powder, granule, powder and mixture, using vacuum pump as a vacuum source.This machine reduces the labor intensity of the workers, eliminates the dust pollution of the use site, and ensures that the production process meets the requirements of "GMP".
The vacuum conveyor is composed of high pressure air pump, stainless steel suction nozzle, conveying hose, PE filter (or 316 stainless steel filter), compressed air blowback device, pneumatic discharge door device, vacuum hopper and automatic control device of material level, etc. The whole series is reasonable in design and exquisite in manufacture. Vacuum conveyor divided gap discharge and continuous discharge two. Gap discharge is beneficial to reduce the cost of equipment investment, convenient material level control; Continuous discharge is generally used for long distance and large yield vacuum conveying of materials.
Product parameter
| Model | XK-1 | XK-2 | XK-3 | XK-4 | XK-5 | XK-6 | XK-7 |
| Capacity | 600L/h | 600L/h | 1200L/h | 2000L/h | 3000L/h | 4000L/h | 6000L/h |
| Power | 1.6kw | 2.2kw | 3kw | 4.0kw | 5.5kw | 5.5kw | 7.5kw |
| gas consumption | 8L/min | 8L/min | 10L/min | 12L/min | 12L/min | 12L/min | 17L/min |
| Air pressure | 0.5-0.6mpa | 0.5-0.6mpa | 0.5-0.6mpa | 0.5-0.6mpa | 0.5-0.6mpa | 0.5-0.6mpa | 0.5-0.6mpa |
Advantages
1. Parameters such as suction time, discharge time and reverse blowing times can be set freely;
2, Full material automatically stop, lack of material automatically open;
3, Full automatic control, original suction feeder algorithm, stable, efficient, energy saving;
4. The operation process is carried out in a vacuum environment to avoid cross contamination of materials with the outside world and operators;
5, Strong transportation capacity, low energy consumption, stable performance, small footprint, a wide range of applications;
6, The equipment is easy to disassemble and install, the interior is smooth, no gap no dead Angle, exquisite workmanship, safe and reliable material, GMP pharmaceutical grade 304 stainless steel, 316 can be customized, according to the non-standard requirements of customized installation size.
Application
Application scope
Vacuum conveyor is mainly used in food, pharmaceutical, pigment, paint, battery, fine chemical industry. The integrated structure of the separation bin can meet the requirements of frequent product replacement applications.
Application case
The use of the vacuum conveyor can be directly from the container into the mixer, reactor, hopper, tablet press, packaging machine, vibrating screen, granulator, wet granulator, crusher and dry granulator.
