High Precision Carbon Steel / Stainless Steel Gyratory Vibrating Screen For Urea

Basic Information
Place of Origin: CHINA
Brand Name: EVERSUN
Certification: ISO,CE
Model Number: BPH
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard export wooden package
Delivery Time: within 8-15 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000SETS/YEAR
Detail Information
Power: 1.5-7.5kw Screen Deck: 1~3
Product Type: Automatic Customized Service: Support
Structural Material: Stainless Steel304/316L, Carbon Steel Sieving Precision: ≤350 Mesh Or ≥0.028mm
High Light:

Stainless Steel Gyratory Vibrating Screen

,

Urea Gyratory Vibrating Screen

,

Carbon Steel Gyratory Screen


Product Description

Product introduction




High-Precision Carbon Steel/Stainless Steel Gyratory Vibrating Screen For Urea



Gyratory Vibrating Screen is the introduction of foreign advanced technology to develop another new screening equipment. This machine has the advantages of reasonable design, simple structure, stable operation, completely closed structure, no dust, plugging hole, anti stick mesh and so on. Especially for hygroscopicity strong, viscous, easy to plug holes and sticky mesh urea screening more obvious. Due to the principle of plane rotating motion, the ratio of static and static of the equipment and the dynamic load of the foundation are effectively reduced.



The equipment uses plane rotary vibrating screen up and down vibration, there is automatic cleaning equipment under the net, compared with the traditional linear screen, improve the life of the screen, small noise, screening area is large, the efficiency from the original 93~95 to 98.5, good prospects for promotion. Plane rotary urea screening machine is mainly for large urea, soda, quartz sand screening development of a new screening equipment, is also widely used in chemical, grain processing, refractory materials, building materials and other industries of screening operations.



Product parameter




Model BPH-0815 BPH-1021 BPH-1225 BPH-1530 BPH-1836
Screen size(mm) 800*1500 1000*2100 1200*2500 1500*3000 1800*3600
Dip angle of screen 5-10°
Screen area(sq.m) 1.2 2.1 3 4.5 6.4
Stroke of screen 63.5mm 63.5mm 72mm 72mm 81mm
Motor power 1.5KW 2.2KW 3.7KW 5.5KW 7.5KW
QTY.of level 1-3
Rotary frequency 110-180r/min

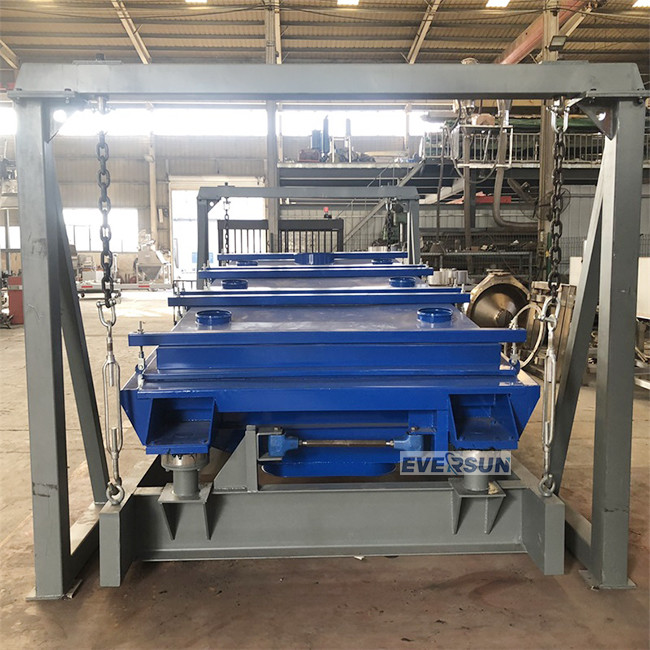

High Precision Carbon Steel / Stainless Steel Gyratory Vibrating Screen For Urea 0

Feature




1, Combined circumference, ellipse, straight line three motion mode, good screening effect;



2, The sieve boat drive by belt drive, balance, low noise. Screen stern support for improved elastic support, small vibration, low noise;



3. Enhanced frame to ensure more balanced operation of equipment. Hanging structure can also be adopted according to the actual site conditions to meet the needs of customers;



4. Improve wire rope hanging structure to avoid wire wear;



5, The use of one or combined screen cover screen frame structure, screen cover light weight, strong rigidity, good sealing. Change screen more convenient, faster;



6, Used for the screening and classification of powder or granular feed, can also be used for feed mill raw materials, as well as large and medium-sized feed mill after secondary grinding intermediate product classification.



Application


Gyratory Vibrating Screen, can be divided into single screen and multi-layer screen, the use of reasonable matching screen can achieve a screening of a variety of different material specifications of the material, and the replacement of the screen process is simple, rotary screen maintenance operation is simple; Plane rotary screen is mainly used in food, food, chemical, sugar, ceramide, mining, medicine, metallurgy, building materials, mining, paper and other industries, is an alternative to the traditional screening of advanced, efficient screening equipment.

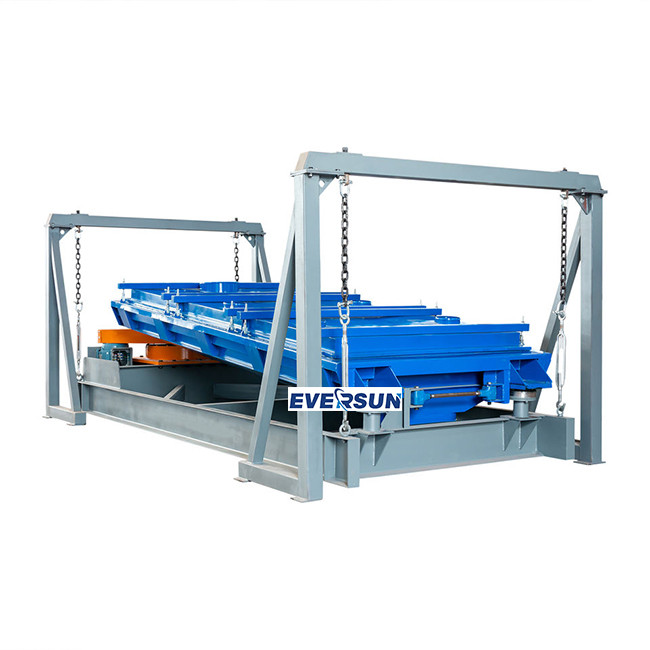

High Precision Carbon Steel / Stainless Steel Gyratory Vibrating Screen For Urea 1
