|Name:||Dust-Free Small Bag Discharging Station||Material:||SUS 304/316L/Carbon Steel|
|Static Load:||1500N/2500N||Optional Equipment:||Iron Remover/vibrating Screen/press Bag Device/metering And Weighing|
|Wind Pressure:||1217-1640||Material Lifting:||Bucket/lift Truck/forklift Truck/manual Lifting|
SUS 304 Bag Discharge Station,
1.1KW Bag Discharge Station,
Sieve Bag Dumping Station

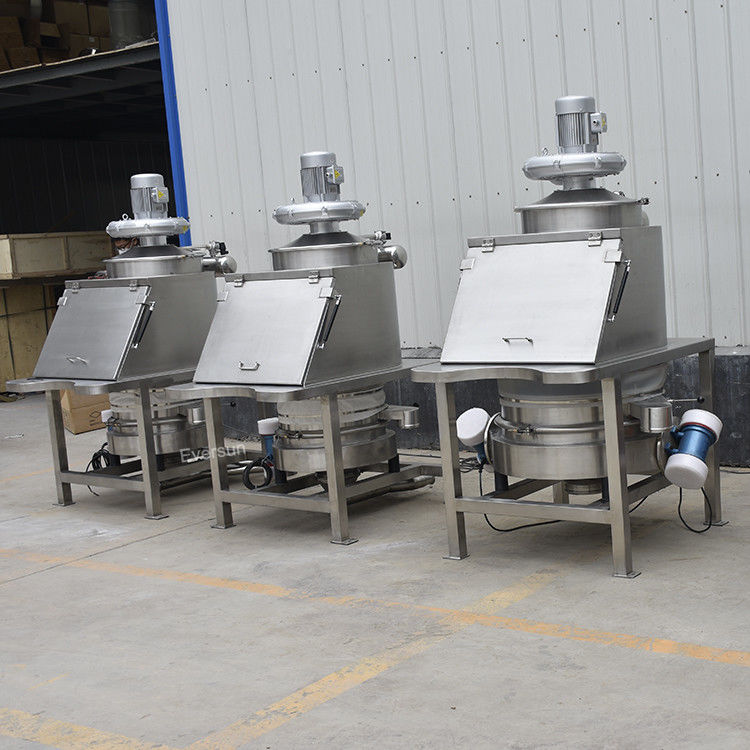

TLZ Dust-Free Small Bag Discharging Station Dumping Station With Sieve
It is a bag opening equipment that manually breaks the bag and pours the material into the unloading station. According to the technological requirements, it can be used for unloading small bags of powdery materials with vibrating hopper or mixing hopper. This machine is equipped with new dust collector equipment and vibrator auxiliary feeding, so that there is no dust, smooth, no extravagance and waste of raw materials in the whole feeding process. It is a more ideal manual service dust-free feeding station machine equipment in China at the present stage.
Work flow of dust-free unloading station
The operator places the bag on the bracket and pushes it into the grid. Next, the operator will cut a vertical slit in the material bag, and pour the shaking bag to empty it, the material falls into the hopper by gravity, and can be connected with the conveying unit equipment through the bottom of the conveying pipe, the material is effectively output to the location. The built-in air filter can collect the dust produced in the process of empting the bag. The filter is through the reverse compressed air injection to clean, clean dust and fall back into the hopper, can achieve continuous uninterrupted feeding.
|Model||Dust collecting fan||Vibration motor||Dust removal filter|
|TLZ-1||1.1KW||0.18KW||Coated polyester filter canister|
|TLZ-2||1.5KW||0.18KW||Coated polyester filter canister|
|The machine can be customized according to your needs|
● Easy to clean, hygienic standard design.
● Feeding platform for negative pressure, no dust leakage dust-free environmental protection, feeding process of materials without loss, to protect the clean environment.
● Feeding process operation safety, reduce labor intensity, protect personnel safety production.
● It can be connected with positive pressure/negative pressure conveying for the production line.
● The equipment can be applied to a variety of production processes, not only as a single powder feeding and unloading
equipment, but also connected to spiral, negative pressure vacuum feeder and other forms of conveying equipment to achieve dust-free feeding.
Feeding specification: 0~50KG/BAG
Feeding mode: single feeding port/double feeding port
Material lifting: manual/lifting bucket/lift truck/forklift truck
Broken arch type: pneumatic high frequency vibration/activated hopper vibration
Backblow type: pneumatic pulse
Optional equipment: iron remover/single-layer vibrating screen/coarse crusher/bag collection device/measuring, weighing and conveying application range
It is mainly used for unpacking and feeding 25KG or 50KG small bag packaging such as plastic resin, cement and food additives and other dry powder and granular materials in plastic, rubber, food, medicine, chemical and other fields.
