Industrial Rectangular Linear Vibrating Screen Electric Linear Vibrating Sieve

Basic Information
Place of Origin: China
Brand Name: EVERSUN
Certification: ISO,CE
Model Number: DZSF
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard export wooden
Delivery Time: within 7-15 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000SETS/YEAR
Detail Information
Name: Linear Vibration Screen Layer: 1~6 Layer
Structure Material: 304/316L Stainless Steel, Carbon Steel Sieve Mesh: ≤400 Mesh
Customize Service: Support Application: Powder,granule, Bulk Solid,etc
Highlight:

Industrial Rectangular Linear Vibrating Screen

,

Electric Linear Vibrating Sieve

,

6 Layer Industrial Vibrating Sieve


Product Description

Product Introduction




Industrial Sifter Electric Vibrating Sieve Rectangular Linear Vibration Screen

Linear vibration screen is widely used in metallurgical powder, chemical, fertilizer, abrasives, medicine, food, ceramics, coal, refractory materials, building materials and other industries, the powder and small and medium-sized particle size materials for classification or screening, the use of two vibration motor excitation for vibration source, when two vibration motor to do synchronous, reverse rotation, The vibration force generated by the eccentric block cancels each other out in the direction parallel to the axis of the motor, and is stacked in the direction perpendicular to the axis of the motor as a resultant force, so the motion trajectory of the screen machine is a straight line. The two motor shaft relative screen surface has a dip Angle, in the vibration force and material since the combined force of gravity, the material is thrown up on the screen surface for linear motion, so as to achieve the purpose of screening and classification of materials.



Product Parameter


Model DZSF-520 DZSF-525 DZSF-530 DZSF-1020 DZSF-1025 DZSF-1030
Size(mm) 500*2000 500*2500 500*3000 1000*2000 1000*2500 1000*3000
Material size 0.074-10 0.074-10 0.074-10 0.074-10 0.074-10 0.074-10

Frequency of vibration (times/m)

960 960 960 960 960 960
Leaning angle of screen(°) 0~7 0~7 0~7 0~7 0~7 0~7
Amplitude 3-4.5 3-4.5 3-4.5 3-4.5 3-4.5 3-4.5
Layer 1-6 1-6 1-6 1-6 1-6 1-6
Power(kw) 2*(0.4-0.75) 2*(0.4-0.75) 2*(0.4-0.75) 2*(0.4-1.1) 2*(0.4-1.1) 2*(0.4-1.5)





























Linear vibration screen models include DZSF515, DZSF520, DZSF525, DZSF1020, DZSF1025, DZSF1030, using double motor drive, one hour can deal with 0.12-20 tons of materials, suitable for screening within 400 mesh powder and granular materials.

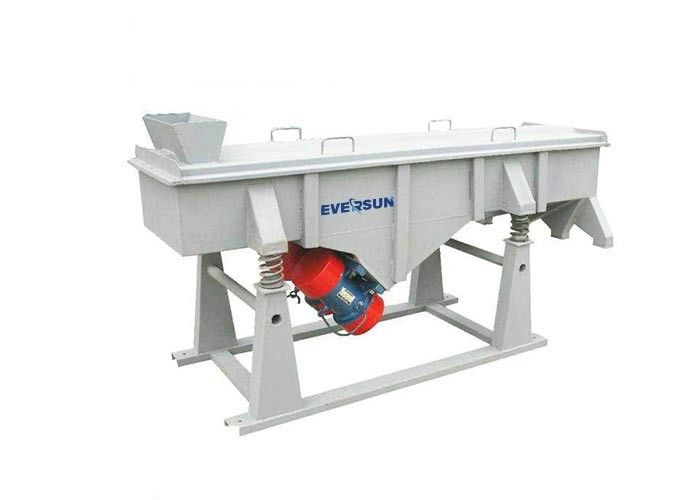

Industrial Rectangular Linear Vibrating Screen Electric Linear Vibrating Sieve 0



Features




1. With low energy consumption, high output, simple structure, easy maintenance, fully closed structure, no dust overflow, automatic discharge, more suitable for assembly line operation.



2. It can be used to realize automatic operation in pipeline. It has the characteristics of low energy consumption, high efficiency, simple structure, easy maintenance, completely closed structure without dust overflow and dispersion.



3. The highest screening mesh number of 400 mesh, can screen out 7 different granularity of materials. Linear vibration screen can also screen and grade powder and granular materials, widely used in plastics, abrasives, chemical, pharmaceutical, building materials, food, carbon, fertilizer and other industries.



4. Screen machine design, exquisite and easy assembly, one person can operate the screen machine.



5. Compared with other related brand manufacturers, it has a larger screening area and high efficiency processing capacity.

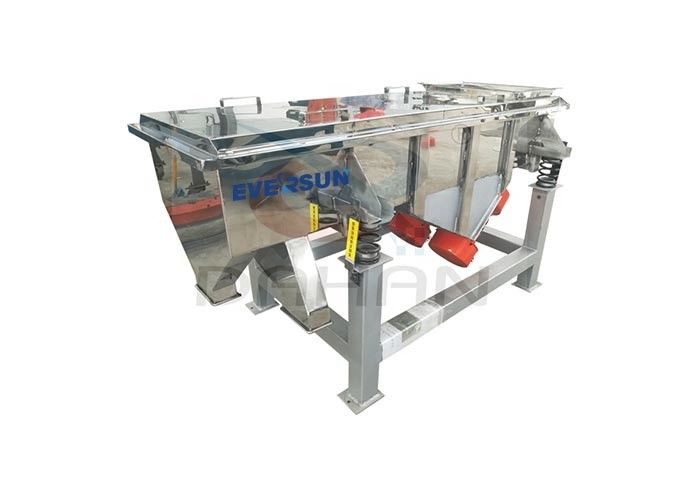

Industrial Rectangular Linear Vibrating Screen Electric Linear Vibrating Sieve 1

Application




Linear vibration screen is widely used in various materials, it can screen and grade powdery and granular materials, widely used in plastics, abrasives, chemical, pharmaceutical, building materials, food, carbon, fertilizer and other industries.The image below shows some of the materials used. If you want to know more, please contact us.

Industrial Rectangular Linear Vibrating Screen Electric Linear Vibrating Sieve 2
