Customized Automatic U Type Screw Feeder Machine Auger Conveyor

Basic Information
Place of Origin: China
Certification: ISO,CE
Model Number: LS
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard export wooden package
Delivery Time: within 7-15 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000SETS/YEAR
Detail Information
Name: U Type Screw Feeder Machine Material: Stainless Steel316L/304
Type: Shaft/ Shaftless Type Usage: Conveying Powder, Granular And Small Bulk Materials
Customized Service: Provide Capacity: 2.2-145m3
High Light:

Automatic U Type Auger Screw Conveyor


Stainless Steel 304 Auger Conveyor


Customized Screw Feeder Machine

Product Description

Product introduction

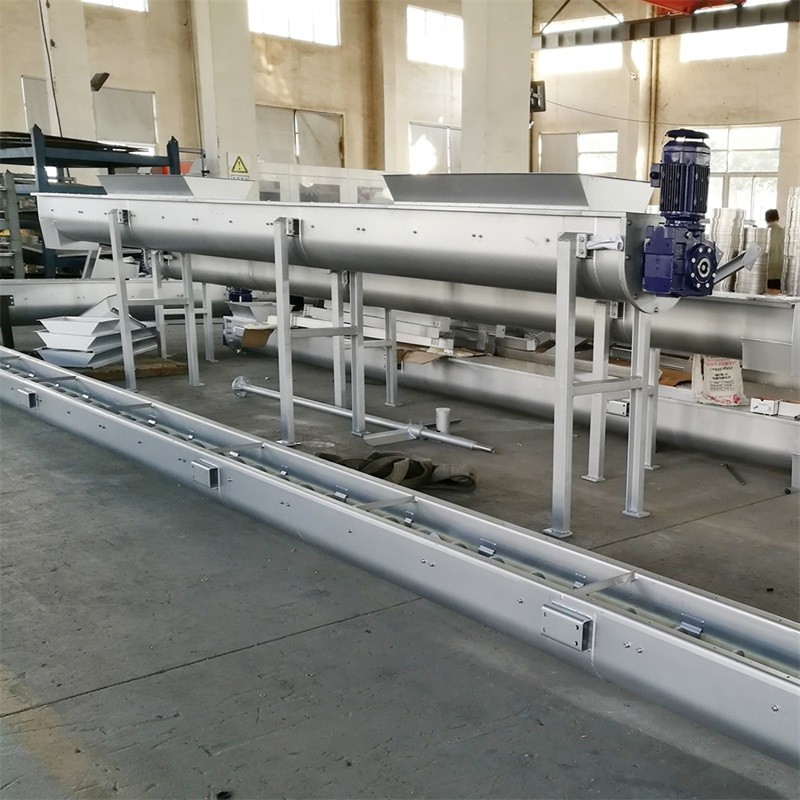

Customized Design automatic U Type screw feeder machine Auger Conveyer


U type screw conveyor is one of the screw conveyor, the main use of spiral shaft with spiral blade rotation, so that the material along the spiral surface relative movement, the material is not rotated with the spiral by the friction of the material trough or conveying pipe wall, so as to push the material axially and realize the conveying of the material.


U type screw conveyor is widely used in building materials, metallurgy, chemical industry, machinery, light industry, food and food industries. U-shaped screw conveyor is suitable for conveying powder, granular, small block materials, such as cement, fly ash, grain, fertilizer, mineral powder, sand, soda, etc. U type screw conveyor should not transport metamorphic, viscous, easy to caking materials. The conveyor working environment temperature is usually -20 ~ 40℃, the temperature of conveying materials is generally -20 ~ 80℃, U type screw conveyor suitable level and small dip Angle layout, dip Angle to not more than 15 degrees is appropriate, such as tilt Angle is too large, please choose tubular screw conveyor.


Product parameter





Screw Pith



LS-100 100 100


LS-160 160 160 112 8
LS-200 200 200 100 14
LS-250 250 250  90 24
LS-315 315 315 80 34
LS-400 355 355 71 64
LS-500 400 400 63 100
LS-630 450 450 50 145
Machine can be customized based on your need














Customized Automatic U Type Screw Feeder Machine Auger Conveyor 0


Product Feature

1. Relatively simple structure and low cost;


2. Reliable work, easy maintenance and management;


3. Compact size, small section size, small footprint;


4. Can realize sealed transportation, is conducive to conveying easy flying, hot and strong smell of materials, can reduce the pollution to the environment;


5. Convenient loading and unloading. Horizontal screw conveyor can be loaded and unloaded at any point on its conveying line;


6. High energy consumption per unit;


7. The material is easy to grind and wear in the conveying process, and the wear of spiral blade and groove is also more serious.


Customized Automatic U Type Screw Feeder Machine Auger Conveyor 1



U type screw conveyor is widely used in many industries, for powder and granular materials can be transported. Shaft screw conveyor is suitable for non-viscous dry powder materials and small particle materials (such as cement, fly ash, lime, grain, etc.) while shaftless screw conveyor is suitable for conveying viscous and easily wound materials. If you want to know more about the materials and conditions used in U-screw conveyor, please contact us ,our engineers will help you and provide suitable machine model for you based on the use condition.

Customized Automatic U Type Screw Feeder Machine Auger Conveyor 2

                                                                  Application cases

Customized Automatic U Type Screw Feeder Machine Auger Conveyor 3
