500 - 2000kg Ton Bag Unpacking Machine With Weighing System

Basic Information
Place of Origin: China
Brand Name: EVERSUN
Certification: ISO,CE
Model Number: TD
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: wooden box
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000SETS/YEAR
Detail Information
Material: Carbon Steel,Stainless Steel 316L/304 Application: Particle And Powder
Voltage: 110-480V Advantage: High Degree Of Automation
Name: Ton Bag Unpacking Machine Customzied Service: Support
High Light:

2000kg Ton Bag Unpacking Machine


Carbon Steel Bag Unpacking Machine


Weighing System Bag Unloader

Product Description

Product Introduction

 Product name

 500~2000kg High Efficiency Ton Bag Unpacking Machine

 With Weighing System

 Big unloading specification  ≤ 1000*1000*1600
 Loading capacity  500~2000KG or customized
 Structure materials  Carbon steel,SUS304/316L
 Structure dimension  Based on the request of clients
 Product type  Automatic by PLC
 Working power supply  AC 380 V ± 5% 50Hz
 Bag unpacking ability  10-30 bags/hour












Ton bag unpacking machine is mainly suitable for 500 kg to 2000 kg bag powder material unpacking and unloading operation, widely used in chemical industry, plastics, sewage treatment, infrastructure and other industries. The tonnage bag unpacking machine can unpack and unload the powder material which is easy to carry dust, with automatic dust collection function, to ensure a good working environment. After the material is unpacked, the ton bag unpacking machine can transport the equipment to the proper position through the pipe chain conveyor, screw conveyor and pneumatic conveying system, so as to realize the dust-free unpacking conveying, which not only improves the efficiency of unpacking conveying, but also solves the dust leakage problem in the dust unpacking conveying. It is suitable for the unpacking conveying system in chemical, pharmaceutical, coal, building materials and other industries. EVERSUN Machinery is a research and development manufacturer of demounters, which not only has tons of bag demounters, but also automatic demounters of 10 ~ 50 kg bag materials.

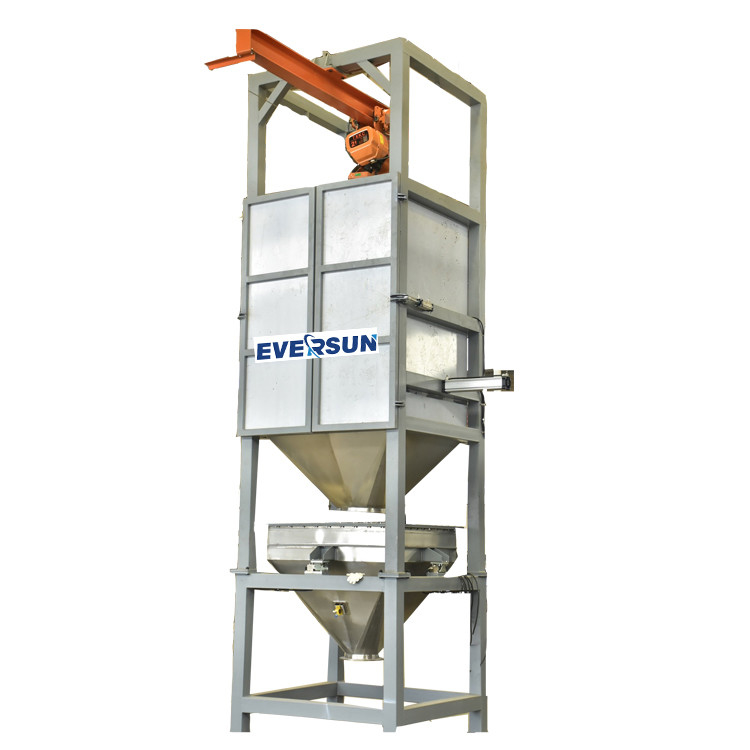

500 - 2000kg Ton Bag Unpacking Machine With Weighing System 0


Product Aavantages

1. Closed transmission, no dust leakage, no cross pollution.


2. Automatic control, simple and convenient operation.


3. Meet GMP standards, meet CIP requirements, can provide sterile grade products.


4. No heat generated in the working process, safe and explosion-proof.


5. Modular design, eliminate dead corners, fast and convenient disassembly and cleaning.


6. No vibration, low noise, high efficiency and energy saving, low cost of operation and maintenance.


7. Effectively solve the problem of powder particle stratification.


8. Effectively eliminate static electricity of materials, no pollution to the surrounding environment.


9. Back blowing system: built-in back blowing air bag, pulse type back blowing, each cycle can be efficient cleaning, filtering, making the performance of the equipment more stable.

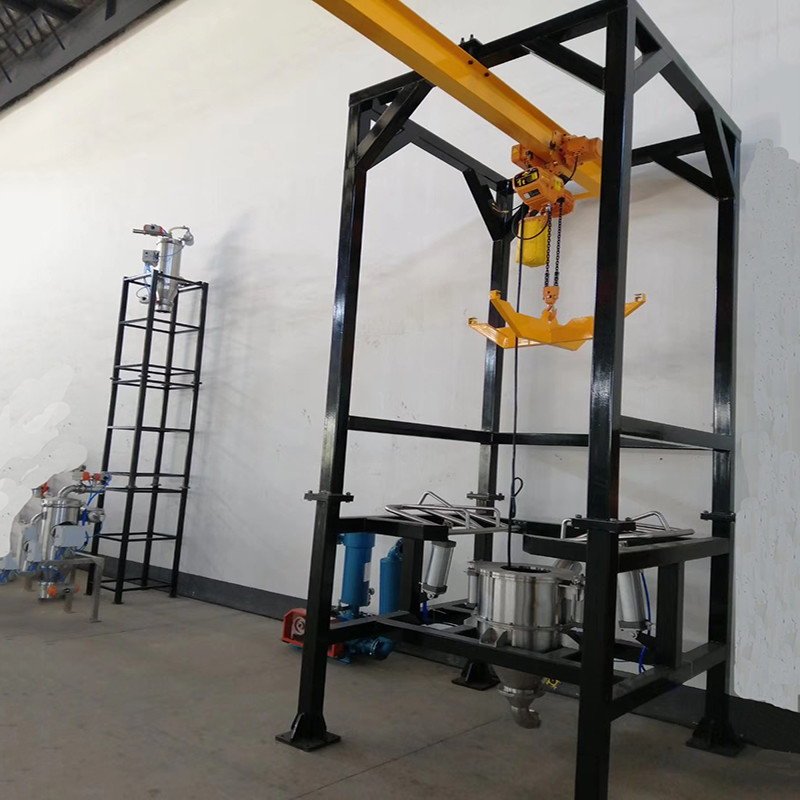

500 - 2000kg Ton Bag Unpacking Machine With Weighing System 1


Working principle

Artificial hanging belt and self-configured electric hoist will lift the material, and then slowly down to the unpacking area can be manually unpacking (tons of bags need to be used twice) or by self-configured cross cutter to cut the bottom of the material (optional) by its own gravity. The device can effectively protect the production environment, reduce the work intensity of workers, but also improve the production efficiency, to solve some tons of bags of materials in the process of unpacking due to moisture absorption caused by caking, bridge is not easy to discharge phenomenon.


The following is a drawing we once designed for a client in Indonesia to help you to help you more intuitively understand the working principle of Ton bag unpacking machine . If you want to design yours drawing, please contact us. we can also design 3D drawings for you or design the entire product line, and provide you with intelligent powder transportation solutions, you are welcome to contact us at any time.

500 - 2000kg Ton Bag Unpacking Machine With Weighing System 2
