| Place of Origin: | China |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO,CE |
| Model Number: | FYB |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | wooden box |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Name: | Rectangular Separation Machine | Material: | Stainless Steel 304, Carbon Steel |
|---|---|---|---|
| Layer: | 1-5 | Cleaning System: | Bouncing Ball |
| Colour: | Optional | Application: | Chemical Industry,food, Sugar Making,mining And Other |
| Highlight: | Multilayer Gyratory Sifter,Fertilizer Sand Gyratory Sifter,Rectangular Gyratory Screening Machine |
||

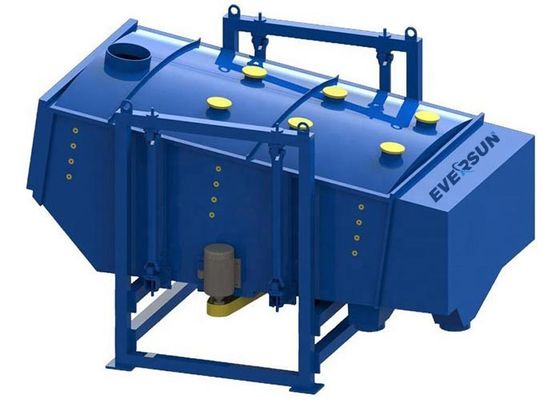

FYB Multilayer Gyratory Sifter Rectangular Separation Machine For Fertilizer Sand
FYB type gyratory Sifter than general inertia vibrating screen has higher processing capacity and screening efficiency, its essence is, the import side swing, the model can artificially control the material on the screen surface of the trajectory and retention time, that is, in limited space, due to the material trajectory for speed and acceleration are changing nonlinear curve, so, the material and screen surface have more contact filter, of course, it also increases the penetration rate.Therefore, gyratory Sifter models and output range is larger, fully can meet the requirements of large output, high precision customers super prehistoric.
It has a wide range of applications, especially in heavy alkali, salt, urea granule size, feed and so on.
| Model | Effective screening area (m²) |
Power (kw) |
Screen angle° |
Number of layers | Rotation frequency (r/min) | Screen box travel (mm) |
| FYB1030 | 3 | 3 | 5-8 | 1-8 | 180-260 | 25-60 |
| FYB1036 | 3.6 | 3 | 5-8 | 1-8 | 180-260 | 25-60 |
| FYB1230 | 3.6 | 4 | 5-8 | 1-8 | 180-260 | 25-60 |
| FYB1236 | 4.32 | 4 | 5-8 | 1-8 | 180-260 | 25-60 |
| FYB1530 | 4.5 | 5.5 | 5-8 | 1-8 | 180-260 | 25-60 |
| FYB1536 | 5.4 | 5.5 | 5-8 | 1-8 | 180-260 | 25-60 |
| FYB1830 | 5.4 | 7.5 | 5-8 | 1-8 | 180-260 | 25-60 |
| FYB1836 | 6.48 | 7.5 | 5-8 | 1-8 | 180-260 | 25-60 |
| FYB2030 | 6 | 7.5 | 5-8 | 1-8 | 180-260 | 25-60 |
| FYB2036 | 7.2 | 7.5 | 5-8 | 1-8 | 180-260 | 25-60 |
From the point of view of the running track, the gyratory sifter is a nonlinear inertial vibrating screen, and the basic rotary motion is similar to that of artificial screening. Eccentricity is adjustable from 25 to 40mm and low speed V-belt drive is adjustable from 120 to 360rpm. The residence time of each product can be adjusted by swinging the radial and cutting Angle of the screen towards the driving axis. Therefore, the horizontal and throw three-dimensional tumbling motion is established. Material from the center to the outer edge in the entire screen surface evenly dispersed, so as to spiral motion to the axial propagation. Small particles complete the screening process. The horizontal and vertical accelerations increase with the movement of the particles, and the particles close to the size of the sieve are separated successfully. The larger pellets are transported to the outlet, where the flow is controlled by an adjustable guide which is another factor controlling the residence time of the material. This process is repeated between each screen layer.
Advantages
1. There are three operation modes of combined circumference, ellipse and straight line, and the screening effect is good.
2. Structure adopts fully enclosed, to ensure that the material does not go out, square swing, with a balanced design, square swing screen, reduce the vibration of the screen machine, reduce noise, square swing, in line with our national environmental protection policy.
3. In order to make the operation of the equipment more balanced, the swing screen manufacturers, strengthen the frame, can also let customers according to the needs, combined with the origin of the hook structure.
4. There are two to five layers of screen frame models for customers to choose.
