| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO,CE |
| Model Number: | S49 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Name: | Ultrasonic Sieve Vibrator Screen | Surface Treatment: | Mirror Polish/Sand Blast |
|---|---|---|---|
| Diameter Of Screen: | 330~1800 | Material: | SUS304/316L,Carbon Steel, |
| Motor Type: | Ordinary Motor/Explosion-proof Motor | Clearing System: | Ultrasonic Cleaning System |
| High Light: | Vibrator Screen Separate Machine,Pigment Cranberry Powder Ultrasonic Vibrating Screen,Ultrasonic Vibrating Sifters |
||
Product introduction

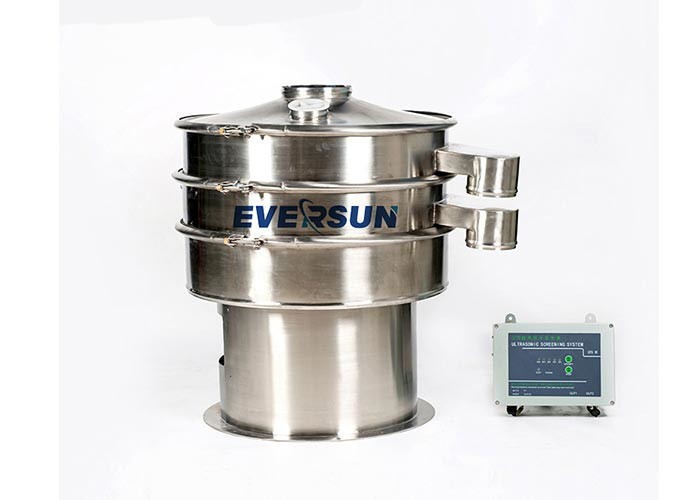

Dahan Pigment Cranberry Powder Ultrasonic Sieve Vibrator Screen Separate Machine
Ultrasonic sieve vibrator screen is a simple, practical and reliable screening system that is the most effective solution for current mesh clogging. It can be widely used in pharmaceutical, metallurgy, chemical, mineral processing, food and other industries requiring fine screening and filtration. With high screening and filtration precision, unblocked mesh , etc., the system truly solve the blocking problem caused by agglomeration, static electricity, strong adsorption and so on.
The user wants to screen at high speed without clogging the mesh. The conventional method simply uses a vibration/shake technique to exclude foreign matter for screening, and the ultrasonic screening can uniformly transmit the oscillating force to the mesh surface in the micrometer range in addition to the above conventional methods. This technique can reduce friction between the screen surface and the material and reduce mesh clogging. Compared with the conventional screening machine, the primary screening rate and the overall screening efficiency are greatly improved, which ensures that the mesh is not blocked for a long time During the screening process. Depending on the particle structure of the material, productivity can be greatly increased, and the long-term efficient screening can be achieved while extending the life of the screen.
Product parameter
|
Model
|
Effective
diameter
(mm) |
Effective sieving
area(m2)
|
Screen
mesh
|
Layer
|
Powder(KW)
|
|
|
Vibration motor
|
Common motor
|
|||||
|
S49-400
|
Φ340
|
0.0907
|
2-635
|
1-5
|
0.18
|
--
|
|
S49-600
|
Φ540
|
0.2289
|
0.25
|
0.75
|
||
|
S49-800
|
Φ730
|
0.4183
|
0.55
|
1.1
|
||
|
S49-1000
|
Φ900
|
0.6359
|
1.1
|
1.5
|
||
|
S49-1200
|
Φ1100
|
0.9490
|
1.1
|
1.5
|
||
|
S49-1500
|
Φ1400
|
1.5386
|
1.5
|
2.2
|
||
Working principle
The ultrasonic sieve vibrator screen consists of an ultrasonic controller, a converter, and a resonance ring. The high-frequency electric oscillation generated by the ultrasonic controller is converted into a longitudinal oscillating wave of a high-frequency sinusoidal form by the converter, and the oscillating wave is transmitted to the resonant ring to resonate the resonant ring, and then uniformly transmitted to the screen surface by the resonant ring. The material on the screen is superimposed with ultrasonic vibration while doing low-frequency three-dimensional vibration, which can prevent the mesh from being blocked and increase the output and quality of the screening machine.
Advantages
1. The on-site operation is simpler and more convenient.
2. The output power is large, and a single unit can drive mesh surface up to diameter two meters.
3. High versatility, suitable for any external grid
4. The controller and transducer can work normally in the environment of -40C~60C.
5. The transducer temperature works at around 40C at room temperature, which reduces the
problem that the transducer is often burned out.
6. The aviation plug-in adopts a new design structure to prevent the external dust from entering, causing the transducer short-circuit to be burned out.
7. The waveform has no burrs, which reduces the damage of the burrs generated by the waveforms of similar products to the screen and prolongs the service life of the screen.
