| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Certification: | ISO,CE |
| Model Number: | EGPS-1200 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | within 5-15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Name: | High-Frequency Industrial Sifter | Rotor Speed: | 3000 Times/min |
|---|---|---|---|
| Mesh Size: | 2~500 | Layer: | 1~2 |
| Motor: | Ordinary Motor, Explosion-proof Motor | Application: | Slurr,Paint, Clay,Paper Pulp,Ceramic Slurry,etc |
| High Light: | Stainless Steel Industrial Sifter,Paint Vibrating Screen Sieve,Industrial Vibrating Screen Sieve |
||
8.Product introduction

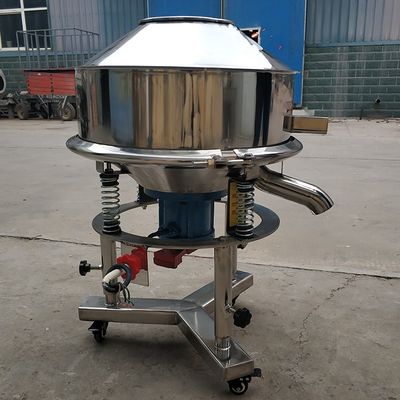

High-Frequency Vibration Screen Sifter By High-Frequency Vibration For Ceramic Mud
High-frequency vibration screen, also known as high frequency filter screen, it is a high frequency, low amplitude of the material dehydration classification equipment, by the shaker, pulp distributor, screen frame, frame, suspension spring and screen components. It uses 2 high frequency vibration motor, vibration frequency is 50 Hertz, motor speed is 3000 times/min, through the high frequency vibration power to break the tension of its viscous glaze and fast sieve, vibration strength is 2-3 times of the ordinary vibrating screen, suitable for high viscosity slurry material.
Purpose of use:
solid-liquid separation: high frequency screen can effectively deal with solid mixed materials, fast realization of solid-liquid separation, and filter out different mesh number of materials.
Impurity removal: High frequency filter screen can remove impurities in a large number of liquid materials, so as to achieve rapid separation.
Technical Parameter
| Model No. | EGPS-1200 |
| Effective sieve diameter(mm) | 1130 |
| Voltage | 110-480V |
| Vibration force | 20000N |
|
Rotor speed(r/min) |
3000 |
|
Power(KW) |
1.5 |
| Cleaning system | Bouncing Ball Cleaning/Ultrasonic device |
| Material | Carbon Steel/Stainless Steel 304/316L |
| Machine can be customized based on your need | |
Features and Advantages
1. The material sieving line is long, and the screening specifications are many.
2. It has a stable structure, strong excitation force, high screening efficiency, low vibration noise, sturdiness and durability.
3. Convenient maintenance and safe use.
4.The saucer design is easy to observe the material, and the higher design of the upper frame can prevent liquid spatter.
5. Screen diameter: 600mm,800mm,1000mm,1200mm.
6. Applicable materials: paint, ceramic glaze, soy milk, mud, syrup, slime and other viscous slurry.
7. Equipped with universal wheel, easy to move, support frame equipped with adjustable height design.
8. Screen surface vibration frequency 50Hz, amplitude 0~2 mm, vibration intensity for the acceleration of gravity 8 ~ 10 times, is the general mechanical vibrating screen vibration intensity 2 ~ 3 times.
Working principle
The principle of High-frequency vibration screen is different from that of ordinary screening equipment. It destroys the surface tension and adhesion between particles through high frequency vibration of pulp, which can reduce the agglomeration force between fine grained materials, quickly realize the loose and stratified materials, and increase the chance of fine grained through screening. And through high frequency vibration can increase the contact between the material and the screen surface, reduce the situation of sieve plugging, increase the probability of penetration.
