High Capacity Powder Pneumatic Vacuum Conveyor With Generator

Basic Information
Place of Origin: CHINA
Certification: ISO,CE
Model Number: QVC
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard export wooden package
Delivery Time: within 7-15 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000SETS/YEAR
Detail Information
Name: Vacuum Suction Equipment Customized Service: Provide
Voltage: 110-480V Material: Carbon Steel,SUS304/316L
Application: Powder, Particle Certification: ISO,CE
High Light:

480V Vacuum Conveyor Systems


Powder Pneumatic Vacuum Conveyor


SUS304 Pneumatic Vacuum Conveyor

Product Description

Product introduction


High Capacity Pneumatic Vacuum Conveyor With Vacuum Generator For Powder


Pneumatic vacuum conveyor is a kind of by means of vacuum suction to transmit granular and powdered materials

transportation equipment, widely used in food, feed, paint, pharmaceutical, chemical, ceramics, agricultural production and scientific research. Using vacuum conveyor can greatly reduce the workshop dust pollution, improve the cleanliness, the bodhi high productivity, and save manpower, reduce pollution.


Pneumatic vacuum conveyor uses a vacuum pump to produce vacuum, and the negative pressure generated by the vacuum will be sucked into the material from the feed port. The air is then separated from the material in the filtration bin of the separation vessel. Materials fall automatically due to gravity and are collected in the silo. Our cyclone separator prevents fine powder from entering the filter to improve its efficiency. When the silo is filled with material, the vacuum pump automatically closes and the pressure in the conveying equipment reaches balance. The discharge valve opens, and the material flows out through the discharge port and directly into the storage container. When discharging, the filter element is automatically cleaned by the blowback air bag. At the end of blanking, the discharge chamber automatically closes and the whole conveying process starts again.


Product parameters

Model QVC-1 QVC-2 QVC-3 QVC-5
Delivery(kg/h) 50-300 100-700 300-1500 600-3000
Warehouse volume(L) 1.1 6.0 12.0 42
Operating pressure(Mpa) 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6
Compressed air consumption(N/min) 180 360 720 1440
Machine can be customized according to your needs











[Product Features] :


a) - Closed transmission, no dust leakage, no cross pollution;


b) - Meet GMP standards, meet CIP requirements, can provide sterile grade products;


c) - Modular design, eliminate dead corners, fast and convenient disassembly and cleaning.

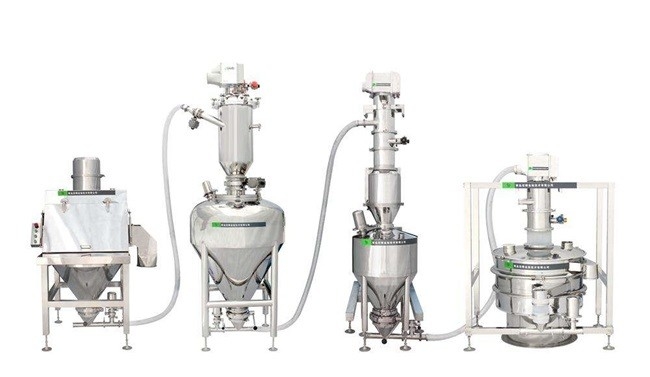

High Capacity Powder Pneumatic Vacuum Conveyor With Generator 0

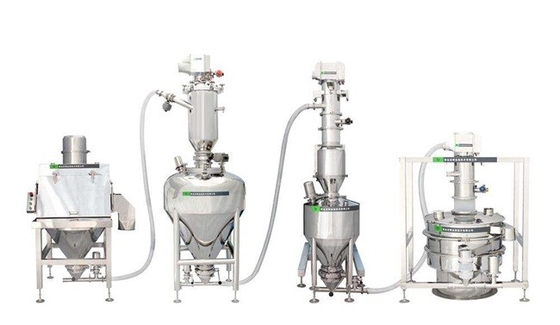

High Capacity Powder Pneumatic Vacuum Conveyor With Generator 1

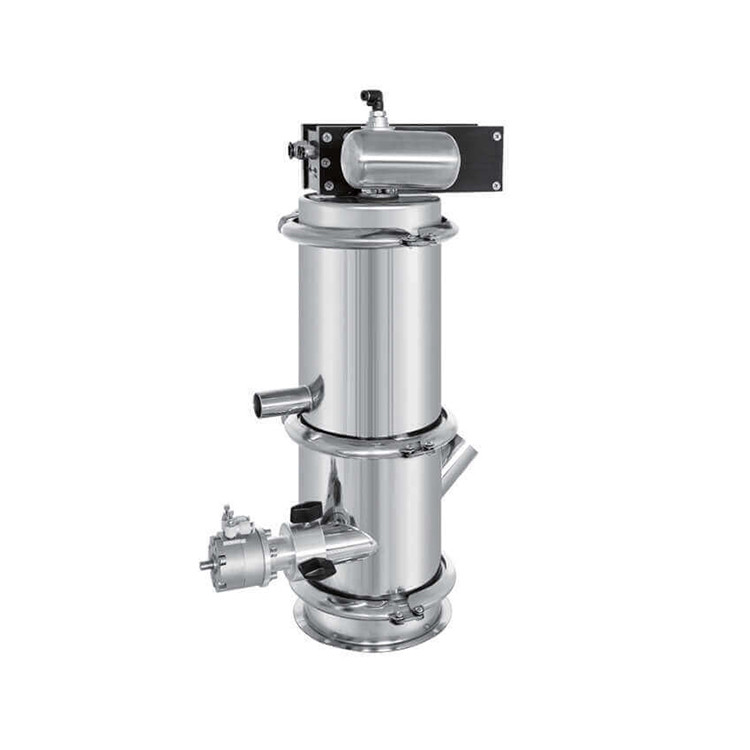

Product structure

High Capacity Powder Pneumatic Vacuum Conveyor With Generator 2



Application scope: food industry additives, confectionery, afterbirth sugar pills, cocoa powder, crystals, etc. Plastic industry: polystyrene particles, polyethylene particles, recirculated rubber, polyurethane particles, vinyl - propylene particles, powder materials, granular materials, mixed materials, tablets, capsules and so on in the pharmaceutical industry; Chemical raw materials, dyes, flammable and explosive materials and toxic and harmful materials, etc.; Industrial raw materials, wastes and other materials; Agricultural bulk materials, etc.


The following figure shows some of the materials used in vacuum conveyor. If you want to know more about the materials used, please contact us, our professional engineers will answer your questions.

High Capacity Powder Pneumatic Vacuum Conveyor With Generator 3

* The figure below shows some customer applications of our vacuum conveyor. If you want to know more about product application, or consult smart powder solutions, please contact us.

High Capacity Powder Pneumatic Vacuum Conveyor With Generator 4
