| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO,CE |
| Model Number: | YS |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Name: | Ultrasonic Sieve Machine | Color: | Optional |
|---|---|---|---|
| Diameter Of Screen: | 330~1800 | Material: | Carbon Steel, SUS304/316L, |
| Motor: | 24 Hours Continuous Operation | Clearing System: | Ultrasonic Cleaning System |
| High Light: | SUS316L Ultrasonic Vibrating Screen,Abrasive Powder Siftering Ultrasonic Vibrating Screen,Ultrasonic Powder Sifter Machine |
||
Product introduction

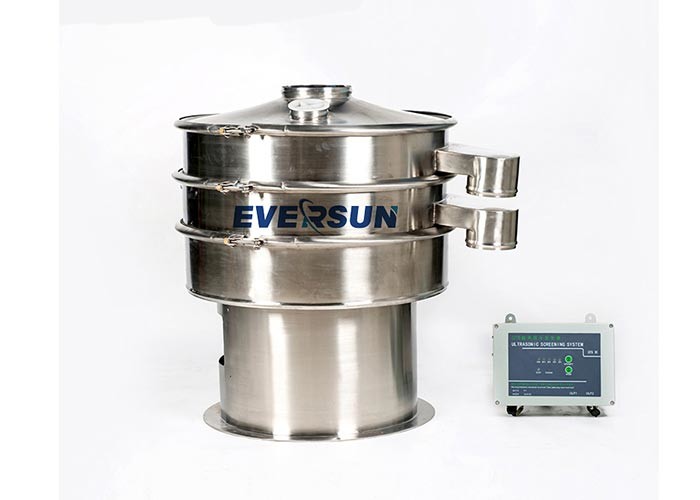

SUS304/316L Ultrasonic Vibrating Screen Machine For Abrasive Powder Siftering
Ultrasonic vibrating screen is a derivative product of rotary vibrating screen, the ultrasonic controller and vibrating screen organically combined together, YS series ultrasonic vibrating screen attached to the screen on the ultrasonic vibration wave (mechanical wave), makes the ultra micro powder accept huge ultrasonic acceleration, thus inhibiting adhesion, friction, flat, wedging screen blocking factors, such as can obviously improve the screening efficiency and network efficiency.
The ultrasonic vibrating screen can convert 220V/50HZ and 110V/60HZ power into 18KHz power. The ultrasonic transducer can transform this high frequency power into mechanical vibration of the same frequency. The suitable fine powdery materials include those with a diameter of 0.063mm-0.02mm.
Product parameter
| Name: | Ultrasonic Vibrating Screen | ||
| Screen Mesh Number | 40~635 | ||
| Vibration motor | Ordinary motor / Explosion-proof motor | ||
|
Transducer Installation Method |
Built-in / External | ||
| Number of Layers(L) | 1-5(Suggest ≤ 3) | ||
| Main Material | Stainless Steel(304/316L)·Carbon Steel(Q235)·PP | ||
| Sealing Strip | Silica gel / Rubber | ||
| Observation port | Silicone cover / Rubber cover / Glass cover | ||
| Equipment surface treatment | Polishing / Sandblasting | ||
| Application | Powder,bulk solid,granule | ||
| Overall height of the fuselage | Please communicate specifically | ||
| Feed inlet | Standard or customizable | ||
| Outlet | Standard or customizable | ||
Features & Advantages
1) Excellent screening ability and higher screening accuracy, to achieve high precision screening, screening accuracy can be increased by 1-70%, output can be increased by 0.5-10 times.
2) There is no need for rubber balls to clear the net, to eliminate the re-pollution caused by rubber wear.
3) Truly solve the screening problem of strong adsorption, easy agglomeration, high static electricity and light gravity materials.
4) Ensure that the characteristics of the screened materials remain unchanged.
5) The energy conversion efficiency of the transducer is high (reaching the standard of foreign counterparts).
6) 24 hours continuous operation, control power and transducer without cooling (meet the international standards of similar products).
Application
Ultrasonic vibrating screen can be used for impurity removal, classification and filtration of ultra-fine powder materials in various industries, and the screening accuracy can be as high as 635 mesh.
Common screening materials are:
metallurgical powder, electromagnetic material, metal powder, electrode powder, iron powder, zinc oxide, aluminum oxide powder, alloy powder, molybdenum powder, cobalt powder, emery, copper powder, nickel powder, silicon powder, oxide Titanium, tungsten carbide, tungsten powder, titanium powder, stainless steel powder, abrasive silicon carbide powder, battery materials, etc.
