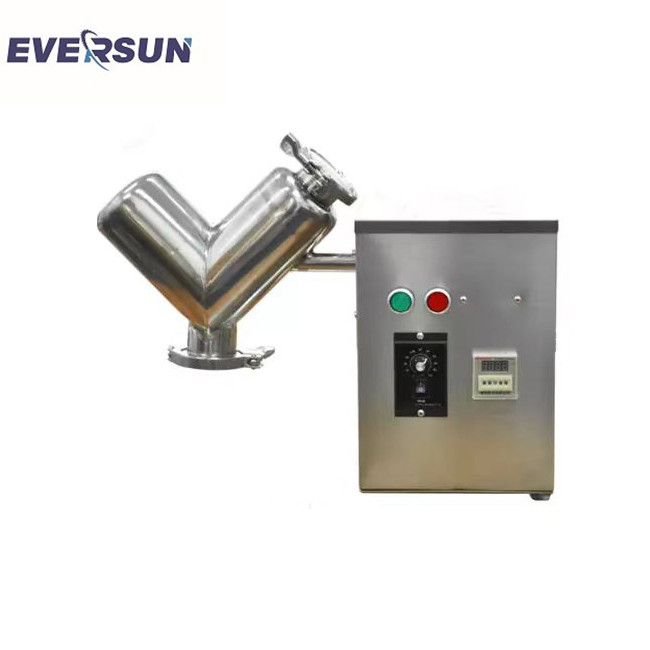

Dry Powder V Type Mixer For Laboratory Pharmaceutical Chemical Food

Basic Information
Place of Origin: China
Brand Name: EVERSUN
Certification: CE,ISO
Model Number: V
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: wooden box
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000sets/year
Detail Information
Product Name: V Type Mixer Material: Stainless Steel 304 / SUS316L
Max. Loading Capacity: 1200L Function: Mixer Blender
Customized Service: Provide Warranty: 1.5 Years
High Light:

Laboratory V Type Mixer 1200L

,

Stainless Steel 304 V Type Mixer

,

Pharmaceutical Dry Powder Mixer


Product Description

Product introduction

High Quality Laboratory Pharmaceutical Chemical Food Dry Powder V Type Mixer



Laboratory V type mixer is a kind of small mixing equipment, it is widely used in scientific research institutions, laboratories and other occasions to quantitatively mix powder or particle. The equipment is made entirely of stainless steel. According to the experimental requirements, mixing time, mixing speed and other parameters can be set to achieve various experimental purposes.



The machine structure is reasonable, simple, closed operation, convenient in and out of the material, (artificial or vacuum feeding) cylinder made of stainless steel material for easy cleaning, is one of the basic equipment of enterprises. The machine rotation has a set of motor and cycloid reducer to complete, the mixing speed is fast, the proportion of the material is different, the mixing ratio is more suitable. The contact parts of the machine are made of stainless steel.



Technical parameters

Model V-30 V-100 V-200 V-300 V-500 V-1000 V-1500 V-2000 V-3000

Total volume

(L)

10-30 100 200 300 500 1000 1500 2000 3000

Effective

volume(L)

5-15 50 100 150 250 500 750 1000 1500

Maximum

loading weight (kg)

5-20 40 80 120 200 400 600 800 1200
Spindle
speed (RPM)
29 1-12 1-12 1-12 1-12 1-12 1-9 1-9 1-9
Motor
power (kw)
0.55 0.75 1.1 1.5 2.2 3 4 5.5 7.5
Input power 220V 380V 380V 380V 380V 380V 380V 380V 380V
Total turning
height (mm)
1200 1500 1650 1800 2100 2400 2700 3000 3200
Weight (kg) 120 500 600 700 800 1000 1150 1400 2300
Overall
dimension (mm)
L / w / h
800*
400*
1200
1800*
600*
1500

2200*

650*

1700

2320*

720*

1800

2450*

720*

1800

3000*

900*

2300

3300*

1200*

2600

3800*

1200*

2900

4100*

1800*

3100

More sizes can be customized







































Dry Powder V Type Mixer For Laboratory Pharmaceutical Chemical Food 0

Dry Powder V Type Mixer For Laboratory Pharmaceutical Chemical Food 1

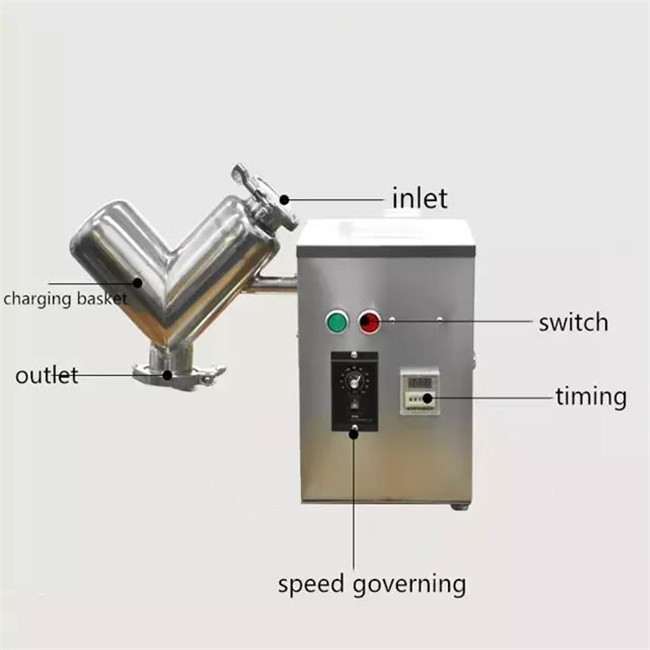

Main parts



Dry Powder V Type Mixer For Laboratory Pharmaceutical Chemical Food 2
