Pneumatic Vacuum Conveyor Systems Automatic Granular Materials Feeder

Basic Information
Place of Origin: CHINA
Brand Name: EVERSUN MACHINERY
Model Number: EVC-350
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard export wooden package
Delivery Time: within 7-15 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000SETS/YEAR
Detail Information
Certification: ISO,CE Name: Vacuum Feeder
Diameter: Customizable Length: Customizable
Material: SUS304/316L,carbon Steel Application: Powder, Particle
High Light:

pneumatic vacuum conveyor systems

,

granular materials feeder vacuum conveyor systems

,

pneumatic conveyor feeder


Product Description

Product introduction




Pneumatic Vacuum Conveyor Automatic Granular Materials Vacuum Feeder



Pneumatic vacuum feeder is the use of compressed air through the vacuum generator to produce high vacuum to transport materials, do not need mechanical vacuum pump, has the advantages of simple structure, small volume, maintenance free, low noise, convenient control, eliminate static electricity of materials and meet the requirements of GMP. The high vacuum produced by the vacuum generator makes the material to be transported put an end to the stratification phenomenon, to ensure the uniformity of the ingredients of the mixed material, is the tablet press, capsule filling machine, dry granulation machine, packaging machine, crusher, vibrating screen and other mechanical automatic feeding equipment of choice.



Product parameters


Model Delivery(kg/h) Warehouse volume(L) Operating pressure(Mpa) Compressed air consumption(N/min)
QVC-1 50-300 1.1 0.4-0.6 180
QVC-2 100-700 6.0 0.4-0.6 360
QVC-3 300-1500 12.0 0.4-0.6 720
QVC-4 600-3000 42 0.4-0.6 1440
Machine can be customized according to your needs

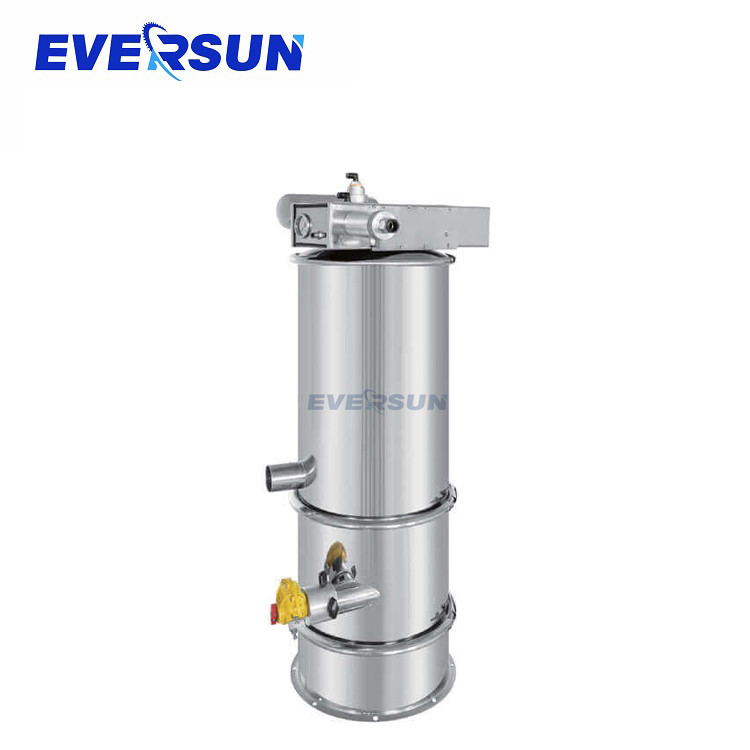

Pneumatic Vacuum Conveyor Systems Automatic Granular Materials Feeder 0



Pneumatic Vacuum Conveyor Systems Automatic Granular Materials Feeder 1



Pneumatic Vacuum Conveyor Systems Automatic Granular Materials Feeder 2

The picture below is a production line we designed for Indonesian dealers - rotary vibrating screen, turnover silo ,vacuum conveyor.If you want to buy our products or design drawings, please contact us.

Pneumatic Vacuum Conveyor Systems Automatic Granular Materials Feeder 3
