Horizontal Air Flow Centrifugal Sifter Machine For Pharmaceutical Powder

Basic Information
Place of Origin: CHINA
Brand Name: EVERSUN
Certification: ISO,CE
Model Number: YSA
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard export wooden package
Delivery Time: within 8-15 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000SETS/YEAR
Detail Information
Name: Air-flow Sifter Machine Motor: Italy OLI Motor
Type: Automatic Sieving Precision: 2~500
Material: SUS304 ,carbon Steel Application: Chemical, Pharmacy,Food, Mining,etc
High Light:

horizontal centrifugal sifter

,

air flow centrifugal sifter

,

pharmaceutical powder centrifugal sifter


Product Description

Product introduction




Pharmaceutical powder Horizontal Centrifugal Sifter Air-flow Sifter Machine



The unique design of airflow sifter machine makes itself efficiently separate ultra light fine materials, such as pharmacy powder.

The airflow sifter machine is cylindrical and placed in the machine body, and the material is mixed with the airflow after passing through the screw conveyor system. The atomized materials enters the wire cylinder, and the material is subjected to the centrifugal force and the cyclone propulsion force through the wind turbine blade inside the wire cylinder, so that the material is sprayed through the sieve, and fine material is discharged from the fine material discharge port, and the oversized material that cannot pass through the sieve is discharged from the other port.



Features & Advantages



1. It can be used alone or in combination with multiple machines. It can operate continuously for a long time and is safe and reliable.​

2. The screen is washed by the cyclone, and the screen can be cleaned automatically.

3. It has re-crushing function for agglomerated materials.

4. New outer spherical bearing prolongs service life.

5. The machine can be matched with the conveying system at the same time, and directly connected to the air path, saving

     resources. Can be specially designed: the net tube rotation system, to meet the special requirements.



Product Parameter




Model Material  Screening Mesh
YSA18-85 Q235,SUS304 <=500 mesh
YSA30-100 Q235,SUS304 <=500 mesh
YSA50-130 Q235,SUS304 <=500 mesh
More machine can be customized based on your need

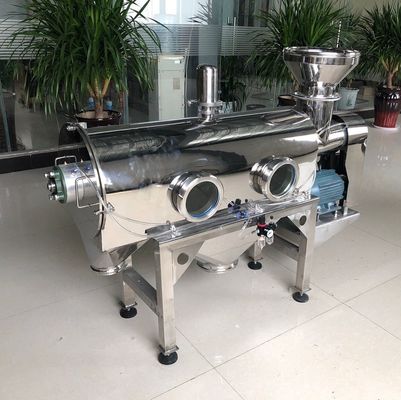

Horizontal Air Flow Centrifugal Sifter Machine For Pharmaceutical Powder 0



Horizontal Air Flow Centrifugal Sifter Machine For Pharmaceutical Powder 1
