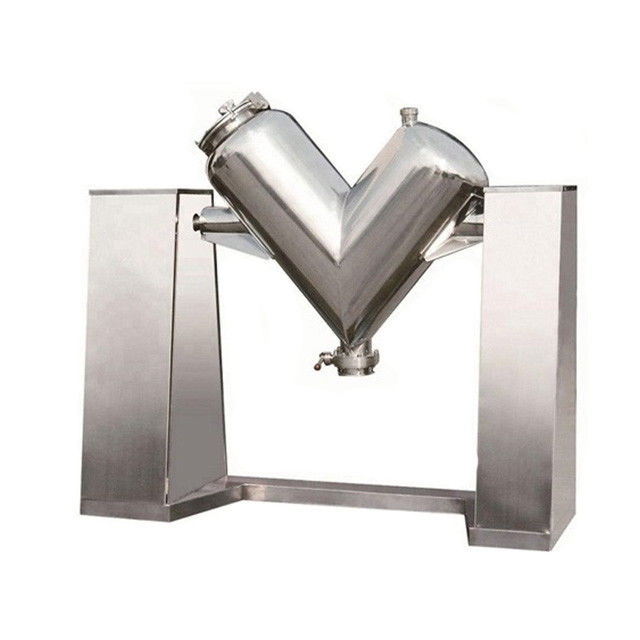

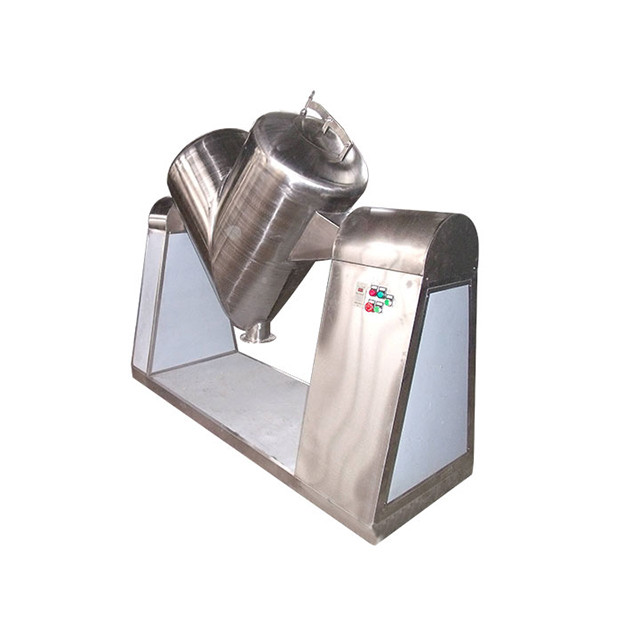

Stainless 304 316 V Type Blender Mixer For Food Powder

Basic Information
Place of Origin: China
Brand Name: EVERSUN
Model Number: mixer
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Detail Information
Material: SUS304, SUS316L, Stainless Steel 304 / SUS316L Max. Loading Capacity: 1000L
Applicable Industries: Manufacturing Plant, Food & Beverage Factory Product Name: V Type Mixer
High Light:

V Type Blender Mixer

,

Industrial V Type Blender

,

Stainless 316 V Type Powder Mixer


Product Description

Precautions for operating V-type mixer

1. Before use, an idle run test shall be conducted. Before the test run, check the firmness of all connecting parts of the horizontal V-type mixer, the amount of lubricating oil in the reducer and the integrity of electrical equipment, and then close the main switch and connect the power supply to carry out the idle run test.

Stainless 304 316  V Type Blender Mixer For Food Powder 0



2. Installation: place the machine stably, install the machine foot and pad it so that the machine can run freely.



3. Before use, fill the place to be filled with oil, and then carry out no-load operation. Check whether the fasteners are loose, whether the electrical is normal, and whether the machinery operates normally. If there is any abnormality, carry out repair and commissioning.



4. Turn the feeding port to the top, open the feeding cover for feeding, and the feeding amount shall not exceed the specified volume. Then close the feeding cover and start the machine for operation. If any abnormality is found on the way, stop the machine for inspection.



5. Wash the inside and outside of the hopper after work or when changing varieties.



model
V-30
V-100
V-200
V-300
V-500
V-1000
V-1500
V-2000
V-3000
Total volume
(L)
10-30
100
200
300
500
1000
1500
2000
3000
Effective volume
(L)
5-15
50
100
150
250
500
750
1000
1500
Maximumloading
weight (kg)
5-20
40
80
120
200
400
600
800
1200
Spindle
speed (RPM)
29
1-12
1-12
1-12
1-12
1-12
1-9
1-9
1-9
Motor
power (kw)
0.55
0.75
1.1
1.5
2.2
3
4
5.5
7.5
Input power
220V
380V
380V
380V
380V
380V
380V
380V
380V
Total turning
height (mm)
1200
1500
1650
1800
2100
2400
2700
3000
3200
Weight (kg)
120
500
600
700
800
1000
1150
1400
2300
Overall
dimension (mm)
L / w / h
800*
400*
1200
1800*
600*
1500
2200*
650*
1700
2320*
720*
1800
2450*
720*
2000
3000*
900*
2300
3300*
1200*
2600
3800*
1200*
2900
4100*
1800*
3100
More sizes can be customized
