Basic Information
Place of Origin: CHINA
Certification: ISO,CE
Model Number: WLDH-5000L
Minimum Order Quantity: 1 set
Packaging Details: Standard export wooden package
Delivery Time: within 15 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000SETS/YEAR
Detail Information
Name: Ribbon Blender Volume: 5L-5000L
Voltage: Can Be Customized Material: SUS304 Or 316L, Stainless Steel
Application: Food, Chemical, Pharmacy, Mining.,etc Certification: ISO,CE
High Light:

100L Horizontal Paddle Mixer Machine


SUS304 Helical Paddle Mixer Machine


600kg Helical Paddle Mixer Machine

Product Description

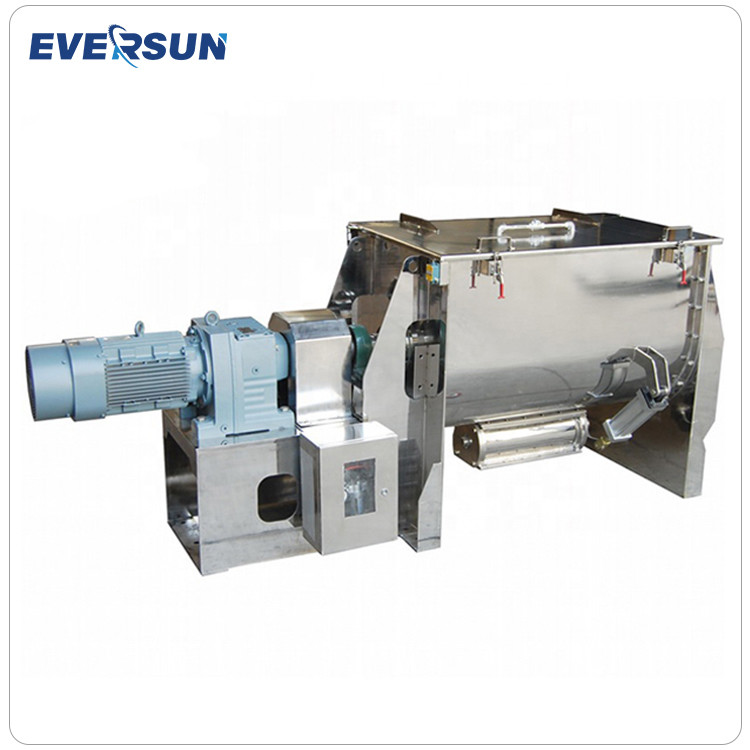

100L to 10000L Dry powder horizontal ribbon blender double helical industrial flour paddle mixer mixing blending machine



Used for mixing powder or wet materials to make main and auxiliary materials of different proportions mix evenly.The machine is made of stainless steel where it contacts with materials. The gap between pulp leaves and barrel body is small and there is no dead Angle in mixing. Sealing device is set at both ends of stirring shaft to prevent material from exuding.Widely used in pharmaceutical, chemical, food and other industries.


Working principle:


The ribbon mixer consists of a trough, a spiral agitating blade and a transmission component; the spiral blade is generally made of two or three layers, the outer spiral encloses the material from both sides to the center, and the inner spiral spirals the material from the center to the inside.
Conveyed to form a convective mix.
The model consists of three parts: the transmission mechanism, the horizontal cylinder groove and the spiral belt.
The mixer is rotated by the inner and outer spiral belts to mix the materials, and the mixture is evenly mixed in a short time.




Product parameters


specification   WLDH-0.3 WLDH-0.5 WLDH-1 WLDH-2 WLDH-3 WLDH-4 WLDH-5 WLDH-6 WLDH-8 WLDH-10 WLDH-15 WLDH-20 WLDH-30
wrking capacity(m³)   0.18 0.3 0.6 1.2 1.8 2.4 3 3.6 4.8 6 9 12 18
working capacity(kg)   200 300 600 1200 1800 2500 3000 3600 4800 6000 9000 12000 15000
speed (r/min)   62 62 49 33 33 27 27 27 22 14 14 14 12
power(kw)   5.5 7.5 11 15 18.5 22 30 37 45 55 75 90 110
weight   600 900 1200 2000 2500 3500 4000 4500 5000 6000 7500 10500 13000
Length   2280 2670 3140 3860 4460 4950 5280 5530 5100 5610 5820 6300 7000
width   680 780 980 1200 1300 1400 1550 1560 1720 1750 2000 2350 2600
Height   880 1240 1400 1650 1700 2000 2100 2200 2500 2650 2900 3160 3350




Q: Where is your factory? How can I visit your factory?

A: Our factory is located In Henan province. We are warmly welcome you visit our Factory if you have a travel plan.

Q: How can I know your machine is designed for my product?

A: If you don't mind, you can send u sample and we test it on the machine. During that time, we will take video and clearer picture for you. If chance, we can take video online and show u.

Q: How can I trust you for the first time business?

A: Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba Trade Assurance service. it will protect your money during the whole stage of the transaction.

Q: How about the after service and guarantee period?

A: We make the guarantee time 12 months from the machine's arrival in buyer's facility and we have a professional team with anexperienced technician to serve abroad and do the best after service to assure the machine whole life usage.

Q: How do we contact you?

A: Please leave a message and click "send" to send us an inquiry.
