Graphite Powder Feeder Powder Feeding Machine Vacuum Conveyor

Basic Information
Place of Origin: CHINA
Certification: ISO,CE
Model Number: EVC-350
Minimum Order Quantity: 1 set
Packaging Details: Standard export wooden package
Delivery Time: within 15 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000SETS/YEAR
Detail Information
Name: Vacuum Conveying System Diameter: 450mm
Length: 800mm Diameter Of Suction Pipe: 38mm
Application: Food, Chemical, Pharmacy, Mining.,etc Certification: ISO,CE
High Light:

Graphite Powder Vacuum Conveyor System


Dia 450mm Powder Feeding Machine


400kg/H Vacuum Conveyor Systems

Product Description

Graphite powder feeder/powder feeding machine/vacuum conveyor



Working principle:



EVC series pneumatic vacuum conveying system, which usually consists of feed station, soft tube, separator tank (or Three-way valve), secondary filter and high pressure air pump, is the ideal method for conveying or moving bulk materials, such as free-flowing powder and granules, from place to place within a factory by using pneumatic suction.
The high pressure air pump generates strong air flow inside the conveying system. Air rushes in through the suction inlet of feeding point, where bulk material is carried in this air stream. Then the bulk material is conveyed into the separator tank (or three-way valve) with the air stream, which separate most of the bulk material from the air and discharge it into the delivery point. The air with small quantity of fine powder flows through the secondary filter and is exhausted by the air pump.
Two types of conveying system are available depends on different receiving hoppers:
Type A: Conveying to sealed hopper. The hopper should be air-tight and a three-way valve for separating bulk material from air has to be inserted into the hopper. The conveying process is continuous.
Type B: Conveying to top-open hopper. The separator tank, usually includes filter, flap valve and air shock tank, should be mounted above the hopper. When the separator tank is filled with bulk material, the air pump switches off automatically. Meanwhile, the air shock tank release the compressed air from inside of filter to blow off the fine particles and the flap valve opens to discharge the bulk materail into the beneath hopper. The system often operates based on timed interval. If air locker (air tight rotary valve) is equipped, the operation can be continuous.


Main features:

1. Convey or move bulk materials from place to place within a factory by using suction
2. Vauum pump: high pressure air pump
3. Conveying capacity: 400-5000 kg/h
4. Conveying length: less than 20 meters
5. GMP design


Product parameters

Item type Model Powder
Overall size
Diameter of Suction pipe
Electrical Vacuum Conveyor Systems EZKS-1 1.5 φ220*820 38
EZKS-2 2.2 φ220*820 38
EZKS-3 3 φ290*950 51
EZKS-4 5.5 φ420*1250 51
EZKS-5 5.5 φ420*1350 51
EZKS-6 7.5 φ420*1450 63
EZKS-7 7.5 φ420*1650 76
Machine can be customized based on your need

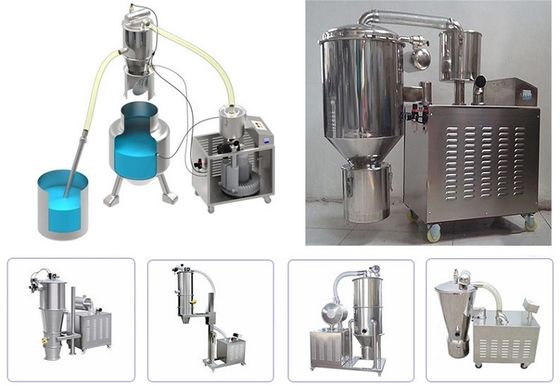

Product Structure




Graphite Powder Feeder Powder Feeding Machine Vacuum Conveyor 0Graphite Powder Feeder Powder Feeding Machine Vacuum Conveyor 1


Graphite Powder Feeder Powder Feeding Machine Vacuum Conveyor 2


 Technical advantages:


1. Dust free transfer of bulk materials: Negative pressure inside the conveying system and two-stage filter can create dust free condition

2. Easy to clean: The conveying system can be easily dismantled for cleaning
3. Small foot print: The conveying soft tube takes up little or no floor space within your facility
4. Easy to install: The conveying system is connected by quick-open clamps which makes the installation very easy
5. GMP standatrd: The system is made by stainless steel and mirror polished. No dead corners for cleaning.
6. Low noise and power consumption: Noise in operation is less than 60 dB.




Q:What factors I need to get a quotation?
A: Name of materials;Capacity per hour;The bulk density of the material;Conveying distance and height;Voltage & Frequency(Hz).

Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days basedon different situations.

Q: How do your after-sale service work if the product got damaged?
A: In the guarantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we wouldwait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include.)
