| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Certification: | ISO,CE |
| Model Number: | EZXS-1020 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | within 15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Layer: | 1~5 | Motion: | Linear Motion |
|---|---|---|---|
| Motor: | Italy OLI Motor, Swiss ABB Motor | Mesh Size: | 2~500 |
| Application: | Food, Chemical, Pharmacy, Mining.,etc | Name: | Linear Sieves Shaker Machine |
| High Light: | SUS316L Linear Vibrating Screen,500 Mesh Linear Vibrating Screen,Silica Sand Vibrating Screen Sieve |
||

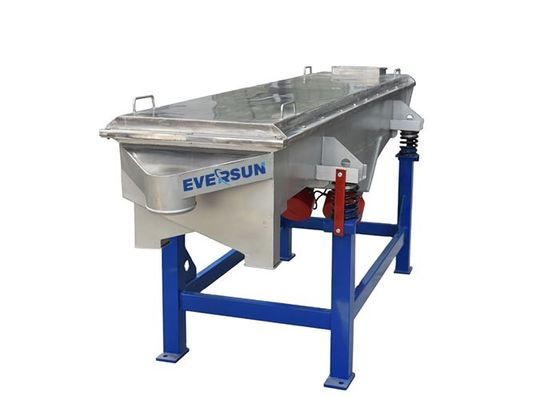

Industrial Silica Sand Square Linear Vibrating Screen Sieve Machine
Product Introduction
The EVERSUN linear vibrating screen is composed of two vibration motors, a sieve box, a screen mesh,
a vibration absorbing body an a vibration damping device. The excellent horizontal motors are used as the
power source to make the material be sifted on the screen while moving forward in a straight line. It can be
equipped with single or multi-layer screens to achieve grading, impurity removal, powder removal, inspection,
washing, dehydration and other purposes.
Advantages
Easy to repace screen and parts
High capacity and Friendly working space
High sieving precision
Movable screening process
Suitable for different screening sizes
Flexible machine structures
Good sealing and minimal dust spillage
Low maintenance cost and long service time
| Name: | Industrial Silica Sand Square Linear Vibrating Screen Sieve Machine | ||
| Mesh Size | 2~500 | ||
| Motor | Italy OLI motor, Swiss ABB motor | ||
| Voltage | Customized | ||
| Materials | Carbon Steel, SUS304, SUS316L | ||
| Application | powder, granule, bulk solids, liquid | ||
| Customized service | Available | ||
Technical Parameter
| Model | Screen Specification(mm) | Layers | Mesh Size(mm) | Particle Size(mm) | Vibrating Frequency(r/min) | Double Amplitude(mm) | Power(KW) |
| EZYS-525 | 500X2500 | 1-6 | 0.074-10 | 0.06-15 | 960,1450 | 4-8 | 2X0.4,2X0.75 |
| EZYS-1020 | 1000X2000 | 1-6 | 0.074-10 | 0.07-20 | 960 | 4-8 | 2X0.75,2X1.5 |
| EZYS-1025 | 1000X2000 | 1-6 | 0.074-10 | 0.07-15 | 960,1450 | 5-8 | 2X0.4,2X0.75 |
| EZYS-830 | 800X3000 | 1-6 | 0.074-10 | 0.1-20 | 960 | 5-8 | 2X0.75,2X1.5 |
| Machine can be customized based on your need | |||||||
Product Structure
Working Principle
The motor through a vee belt makes the eccentric of the activator start high-speed rotation.The operation of the eccentric block
generates a lot of centrifugal force, stimulate the screen forming a certain amplitude circle movement. Materials on the tilted
screen surface do continuous throwing movement after receiving the impulse given by the sieving box. During the process of
collision of materials and sifter, the grain which is less than the screen hole will be chosen so as to realize the grading.
FAQ
Q:Is it special requirement available?
A:Yes, both ODM&OEM is available
Q: How about the warranty of equipments purchased?
A: One year for whole machine except the consumable and wearing parts. We provide technical supports and solutions for the
whole using life.
Q: How long will I receive my order?
A: Normal delivery is about 7 working days. Ending delivery schedule depends on the quantity and items you ordered.
Q: How about the package, can I use my own logo on packages?
A:Normally packed in fumigation-free plywood case. We can mark your own logo on the packages. Neutral packing is available.
Our Service
1. Detailed pre-sale sieving suggestion.
2. Customization service.
3. Online technical support.
4. Video inspection of machine before delivery
5. Video installation of machine
6. Reliable after sale service.
7. 18 months quality guarantee and life time technical assistance.
8. We can send engineeres to clients' company for assistance.
9. All the assistance needed from clients.
Advantages
Easy to repace screen and parts
High capacity and Friendly working space
High sieving precision
Movable screening process
Suitable for different screening sizes
Flexible machine structures
Good sealing and minimal dust spillage
Low maintenance cost and long service time
