Carbon Steel Linear Classifying Screen Sieve For Wood Chip

Basic Information
Place of Origin: CHINA
Brand Name: EVERSUN MACHINERY
Certification: ISO,CE
Model Number: EZXS-1020
Minimum Order Quantity: 1 set
Price: USD$2000~$7000 per set
Packaging Details: Standard export wooden package
Delivery Time: within 15 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000SETS/YEAR
Detail Information
Material: Carbon Steel Mesh Size: 2~500
Layer: 1~5 Motor: Italy OLI Motor, Swiss ABB Motor
Application: Food, Chemical, Pharmacy, Mining.,etc Item: Rectangular Separator
High Light:

wood chip linear vibrating screen

,

rectangular separator


Product Description

EZXS-1020 Carbon steel Linear Classifying Screen Sieve For Wood Chip



Product Introduction

Name: EZXS-1020 Carbon steel Linear Classifying Screen Sieve For Wood Chip
Mesh Size 2~500
Motor Italy OLI motor, Swiss ABB motor
Voltage Customized
Materials Carbon Steel, SUS304, SUS316L
Application powder, granule, bulk solids, liquid
Customized service Available

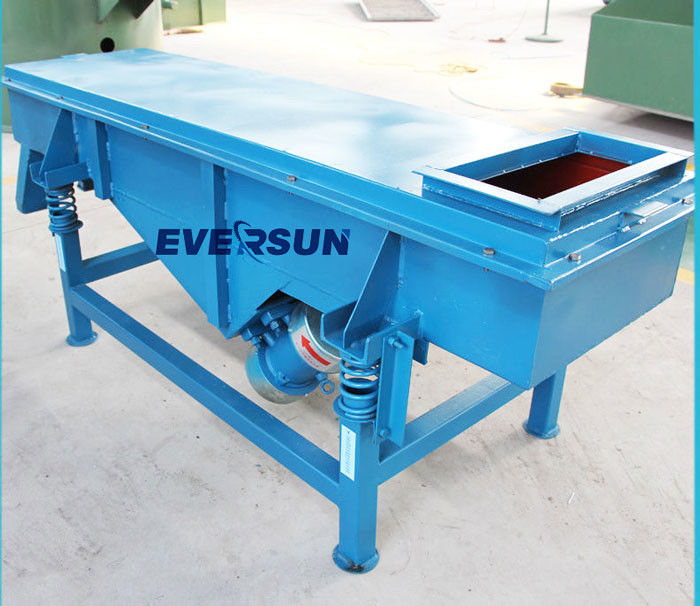

The EVERSUN linear vibrating screen is composed of two vibration motors, a sieve box, a screen mesh,

a vibration absorbing body an a vibration damping device. The excellent horizontal motors are used as the

power source to make the material be sifted on the screen while moving forward in a straight line. It can be

equipped with single or multi-layer screens to achieve grading, impurity removal, powder removal, inspection,

washing, dehydration and other purposes.

Carbon Steel Linear Classifying Screen Sieve For Wood Chip 0

Product Structure

Carbon Steel Linear Classifying Screen Sieve For Wood Chip 1

Features and Advantages

  • Easy to repace screen and parts
    Using a special grid structure design, the screens and parts can be easily changed and tighten.

  • High capacity and Friendly working space
    With excellent structuer of machine and motors, the output is very high and working noise is low.

  • High sieving precision
    The material has a long stroke on the screen surface, high screening precision and large processing capacity.

  • Movable screening process
    At the same time of screening, the material has been transported over long distances.

  • Suitable for different screening sizes
    Change the screen spacing and inclination according to material size, permeability probability and productivity

  • Flexible machine structures
    Different shapes and structures can be designed according to the production site.

  • Good sealing and minimal dust spillage
    Fully enclosed structure, automatic discharge lead to nearly zero rate of dust spillage.

  • Low maintenance cost and long service time
    All parts of the screen body are welded properly with excellent steel plates,and the overall rigidity is good,

  • firm and reliable for very long time.

Technical Parameter

Model Screen Specification(mm) Layers Mesh Size(mm) Particle Size(mm) Vibrating Frequency(r/min) Double Amplitude(mm) Power(KW)
EZYS-525 500X2500 1-6 0.074-10 0.06-15 960,1450 4-8 2X0.4,2X0.75
EZYS-1020 1000X2000 1-6 0.074-10 0.07-20 960 4-8 2X0.75,2X1.5
EZYS-1025 1000X2000 1-6 0.074-10 0.07-15 960,1450 5-8 2X0.4,2X0.75
EZYS-830 800X3000 1-6 0.074-10 0.1-20 960 5-8 2X0.75,2X1.5
EZYS-1030 1000X3000 1-6 0.074-10 0.1-20 960 6-8 2X0.75,2X1.5
EZYS-1224 1200X2400 1-3 0.074-10 0.1-23 960 6-8 2X0.75,2X1.5
EZYS-1230 1200X3000 1-3 0.074-10 0.1-23 960 6-8 2X1.5
Machine can be customized based on your need

Application

Carbon Steel Linear Classifying Screen Sieve For Wood Chip 2

FAQ

Q:Is it special requirement available?
A:Yes, both ODM&OEM is available

Q: How about the warranty of equipments purchased?
A: One year for whole machine except the consumable and wearing parts. We provide technical supports and solutions for the

whole using life.

Q: How long will I receive my order?
A: Normal delivery is about 7 working days. Ending delivery schedule depends on the quantity and items you ordered.

Q: How about the package, can I use my own logo on packages?
A:Normally packed in fumigation-free plywood case. We can mark your own logo on the packages. Neutral packing is available.



Our Service

1. Detailed pre-sale sieving suggestion.
2. Customization service.
3. Online technical support.
4. Video inspection of machine before delivery
5. Video installation of machine
6. Reliable after sale service.
7. 18 months quality guarantee and life time technical assistance.
8. We can send engineeres to clients' company for assistance.
9. All the assistance needed from clients.
