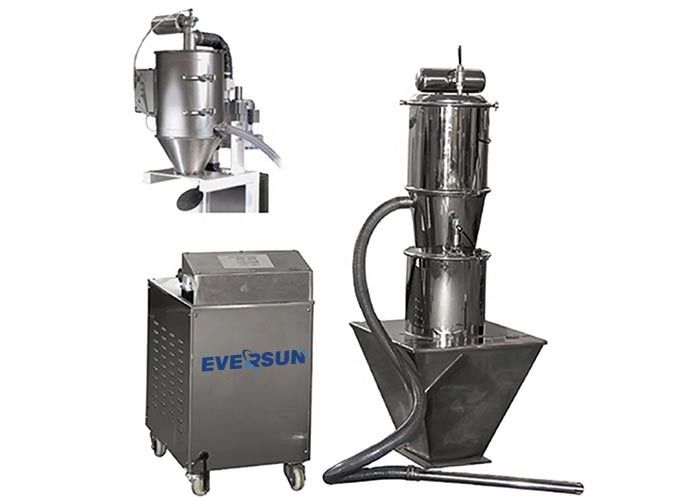

Stainless Steel Salt Vacuum Conveyor Systems

Basic Information
Place of Origin: CHINA
Brand Name: EVERSUN MACHINERY
Certification: ISO,CE
Model Number: EZKS-4
Minimum Order Quantity: 1 set
Price: USD$2000~$7000 per set
Packaging Details: Standard export wooden package
Delivery Time: within 15 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000SETS/YEAR
Detail Information
Name: Vacuum Conveyor System Feature: High Efficiency
Diameter: 420mm Length: 1250mm
Diameter Of Suction Pipe: 51mm Application: Food, Chemical, Pharmacy, Mining.,etc
High Light:

stainless steel vacuum conveyor

,

salt vacuum feeder


Product Description

High Efficiency Stainless Steel Vacuum Conveyor System For Salt





Features & Advantages

  • GMP Standard Qualified
    Our vacuum conveyor 100% meet GMP standard and can be used in related industries, like food, pharmacy, etc.
  • High efficiency and safe conveying
    The materials will be carefully conveyed to avoid any damage or abrasions.
  • Convenient Installation and simple operation
    The modular engineering design make our vacuum conveyor very convenient to install or equipped with other
  • machines. Even one in experienced work can acquire the control skill rapidly.
  • Dust-free working space
    The entire conveying process is fully secured to make sure no leakage of materials.
  • Low energy consumption and cost saving
    The vacuum conveyor use energy saving technology to minimum the production cost of plants.

Product Introduction

EVERSUN Vacuum Conveyor Systems is a kind of advanced vacuum conveying equipment. It is widely used in food,

pharmacy, chemical and other industries for the conveyance of powder, granules, bulk solids, pellets, tablets and others.

For the transmission of fragile materials, the vacuum feeder can effectively ensure that the materials will not be damaged.

At the same time, for all materials, the vacuum feeder ensures that no leakage of materials will occur during transportation

and create one friendly work space.

Stainless Steel Salt Vacuum Conveyor Systems 0

Technical Parameters

Item type Model Powder
(kw)
Overall size
(mm)
Diameter of Suction pipe
(mm)
Electrical Vacuum Conveyor Systems EZKS-1 1.5 φ220*820 38
EZKS-2 2.2 φ220*820 38
EZKS-3 3 φ290*950 51
EZKS-4 5.5 φ420*1250 51
EZKS-5 5.5 φ420*1350 51
EZKS-6 7.5 φ420*1450 63
EZKS-7 7.5 φ420*1650 76
Machine can be customized based on your need



Details of spare part

Stainless Steel Salt Vacuum Conveyor Systems 1

How it works

Electric Vacuum conveyor depend on the vacuum pump(QVC series vacuum conveyor depend on the vacuum generator),

when vacuum pump working,make the vacuum hopper in a vacuum state,then the powder will be suction into vacuum

hopper by suction mouth.Then pneumatic discharge door will open,and the powder will fall into received equipment.

The discharge door is closed automatically when finish feeding,then the whole conveying process start again.



Product Structure

Stainless Steel Salt Vacuum Conveyor Systems 2

Our Unique Service

1. Detailed pre-sale sieving suggestion.
2. Customization service.
3. Online technical support.
4. Video inspection of machine before delivery
5. Video installation of machine
6. Reliable after sale service.



FAQ

Q: What information do we need to provide to get the offer?
A: Material to process, material bulk density, capacity per hour, discharging height to the floor, product material

(carbon steel Q235A, stainless steel SUS304 or SUS316,etc.), Voltage & Frequency(Hz), etc.

Q: Is it special requirement available?
A: Yes, both ODM&OEM is available

Q: How about the warranty of equipments purchased?
A: One year for whole machine except the consumable and wearing parts. We provide technical supports and solutions for the

whole using life.

Q: How long will I receive my order?
A: Normal delivery is about 7 working days. Ending delivery schedule depends on the quantity and items you ordered.

Q: How about the package, can I use my own logo on packages?
A: Normally packed in fumigation-free plywood case. We can mark your own logo on the packages. Neutral packing is available.
