2~500 Mesh Sieve Quartz Linear Vibrating Screening Machine

Basic Information
Place of Origin: CHINA
Brand Name: EVERSUN MACHINERY
Certification: ISO,CE
Model Number: EZXS-1020
Minimum Order Quantity: 1 set
Price: USD$2000~$7000 per set
Packaging Details: Standard export wooden package
Delivery Time: within 15 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000SETS/YEAR
Detail Information
Layer: 1~5 Motor: Italy OLI Motor, Swiss ABB Motor
Mesh Size: 2~500 Application: Food, Chemical, Pharmacy, Mining.,etc
Highlight:

linear vibratory sieve machine

,

linear motion vibrating screen machine


Product Description

Xinxiang Factory Stainless Steel Sieve Quartz Linear Vibrating Screen



Features and Advantages

  • Easy to replace screen and parts
  • High capacity and friendly working space
  • High sieving precision
  • Movable screening process
  • Suitable for different screening sizes
  • Flexible machine structures
  • Good sealing and minimal dust spillage
  • Low maintenance cost and long service time

Technical Parameter

Model Screen Specification(mm) Layers Mesh Size(mm) Particle Size(mm) Vibrating Frequency(r/min) Double Amplitude(mm) Power(KW)
EZYS-525 500X2500 1-6 0.074-10 0.06-15 960,1450 4-8 2X0.4,2X0.75
EZYS-1020 1000X2000 1-6 0.074-10 0.07-20 960 4-8 2X0.75,2X1.5
EZYS-1025 1000X2000 1-6 0.074-10 0.07-15 960,1450 5-8 2X0.4,2X0.75
EZYS-830 800X3000 1-6 0.074-10 0.1-20 960 5-8 2X0.75,2X1.5
EZYS-1030 1000X3000 1-6 0.074-10 0.1-20 960 6-8 2X0.75,2X1.5
EZYS-1224 1200X2400 1-3 0.074-10 0.1-23 960 6-8 2X0.75,2X1.5
EZYS-1230 1200X3000 1-3 0.074-10 0.1-23 960 6-8 2X1.5
Machine can be customized based on your need

Product Introduction

Name: Xinxiang Factory Stainless Steel Sieve Quartz Linear Vibrating Screen
Mesh Size 2~500
Motor Italy OLI motor, Swiss ABB motor
Voltage Customized
Materials Carbon Steel, SUS304, SUS316L
Application powder, granule, bulk solids, liquid
Customized service Available

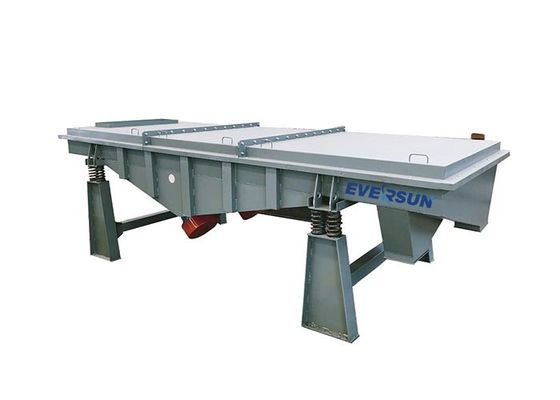

The EVERSUN linear vibrating screen is composed of two vibration motors, a sieve box, a screen mesh,

a vibration absorbing body an a vibration damping device. The excellent horizontal motors are used as

the power source to make the material be sifted on the screen while moving forward in a straight line.

It can be equipped with single or multi-layer screens to achieve grading, impurity removal, powder removal,

inspection, washing, dehydration and other purposes.

2~500 Mesh Sieve Quartz Linear Vibrating Screening Machine 0

Product Structure

2~500 Mesh Sieve Quartz Linear Vibrating Screening Machine 1


FAQ

Q:Is it special requirement available?
A:Yes, both ODM&OEM is available

Q: How about the warranty of equipments purchased?
A: One year for whole machine except the consumable and wearing parts. We provide technical supports and solutions for the

whole using life.

Q: How long will I receive my order?
A: Normal delivery is about 7 working days. Ending delivery schedule depends on the quantity and items you ordered.

Q: How about the package, can I use my own logo on packages?
A:Normally packed in fumigation-free plywood case. We can mark your own logo on the packages. Neutral packing is available.

Application

EVERSUN linear screens are running in various production lines:chemical,food,ceramic,pharmaceutical,

mineral,plastic,metallurgy,food,etc.and its durability has been fully verified.

2~500 Mesh Sieve Quartz Linear Vibrating Screening Machine 2

Our Service

1. Detailed pre-sale sieving suggestion.
2. Customization service.
3. Online technical support.
4. Video inspection of machine before delivery
5. Video installation of machine
6. Reliable after sale service.
7. 18 months quality guarantee and life time technical assistance.
8. We can send engineeres to clients' company for assistance.
9. All the assistance needed from clients.
