| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Certification: | ISO,CE |
| Model Number: | EZXS-1020 |
| Minimum Order Quantity: | 1 set |
| Price: | USD$2000~$7000 per set |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | within 15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Type: | Fine Powder Screening Machine | Layer: | 1~5 |
|---|---|---|---|
| Motor: | Italy OLI Motor, Swiss ABB Motor | Mesh Size: | 2~500 |
| Application: | Food, Chemical, Pharmacy, Mining.,etc | Material: | Carbon Steel |
| High Light: | vibrating screen for quartz sand,horizontal vibrating screen |
||

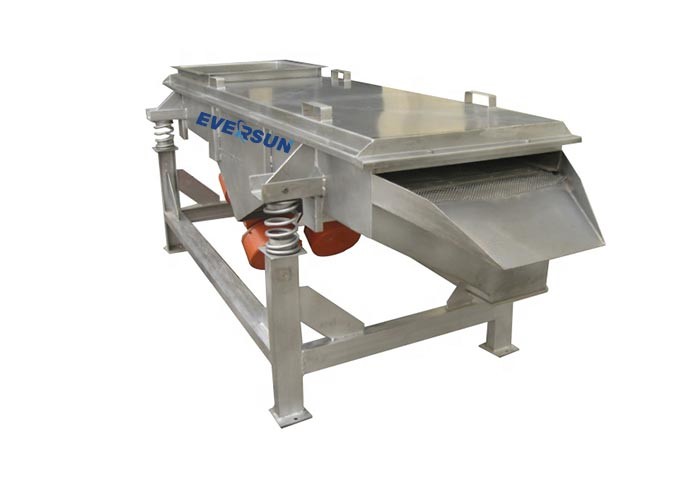

EVERSUN customized Carbon Steel Linear Vibrator Screen for Juice
How does the horizontal linear vibrating screen work
The motor through a vee belt makes the eccentric of the activator start high-speed rotation.The operation of the eccentric block
generates a lot of centrifugal force, stimulate the screen forming a certain amplitude circle movement. Materials on the tilted
screen surface do continuous throwing movement after receiving the impulse given by the sieving box. During the process of
collision of materials and sifter, the grain which is less than the screen hole will be chosen so as to realize the grading.
Product Introduction
| Name: | EVERSUN customized Carbon Steel Linear Vibrator Screen for Juice | ||
| Mesh Size | 2~500 | ||
| Motor | Italy OLI motor, Swiss ABB motor | ||
| Voltage | Customized | ||
| Materials | Carbon Steel, SUS304, SUS316L | ||
| Application | powder, granule, bulk solids, liquid | ||
| Customized service | Available | ||
Product Structure
Technical Parameter
| Model | Screen Specification(mm) | Layers | Mesh Size(mm) | Particle Size(mm) | Vibrating Frequency(r/min) | Double Amplitude(mm) | Power(KW) |
| EZYS-525 | 500X2500 | 1-6 | 0.074-10 | 0.06-15 | 960,1450 | 4-8 | 2X0.4,2X0.75 |
| EZYS-1020 | 1000X2000 | 1-6 | 0.074-10 | 0.07-20 | 960 | 4-8 | 2X0.75,2X1.5 |
| EZYS-1025 | 1000X2000 | 1-6 | 0.074-10 | 0.07-15 | 960,1450 | 5-8 | 2X0.4,2X0.75 |
| EZYS-830 | 800X3000 | 1-6 | 0.074-10 | 0.1-20 | 960 | 5-8 | 2X0.75,2X1.5 |
| EZYS-1030 | 1000X3000 | 1-6 | 0.074-10 | 0.1-20 | 960 | 6-8 | 2X0.75,2X1.5 |
| EZYS-1224 | 1200X2400 | 1-3 | 0.074-10 | 0.1-23 | 960 | 6-8 | 2X0.75,2X1.5 |
| EZYS-1230 | 1200X3000 | 1-3 | 0.074-10 | 0.1-23 | 960 | 6-8 | 2X1.5 |
| Machine can be customized based on your need | |||||||
Features and Advantages
Application
Our Service
1. Detailed pre-sale sieving suggestion.
2. Customization service.
3. Online technical support.
4. Video inspection of machine before delivery
5. Video installation of machine
6. Reliable after sale service.
7. 18 months quality guarantee and life time technical assistance.
8. We can send engineeres to clients' company for assistance.
9. All the assistance needed from clients.
FAQ
Q:Is it special requirement available?
A:Yes, both ODM&OEM is available
Q: How about the warranty of equipments purchased?
A: One year for whole machine except the consumable and wearing parts. We provide technical supports and solutions for the
whole using life.
Q: How long will I receive my order?
A: Normal delivery is about 7 working days. Ending delivery schedule depends on the quantity and items you ordered.
Q: How about the package, can I use my own logo on packages?
A:Normally packed in fumigation-free plywood case. We can mark your own logo on the packages. Neutral packing is available.
