| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Certification: | ISO,CE |
| Model Number: | EZXS-1020 |
| Minimum Order Quantity: | 1 set |
| Price: | USD$2000~$7000 per set |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | within 15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Screen Frame: | Stainless Steel Frame | Layer: | 1~5 |
|---|---|---|---|
| Type: | Linear | Motor: | Italy OLI Motor, Swiss ABB Motor |
| Mesh Size: | 2~500 | Application: | Food, Chemical, Pharmacy, Mining.,etc |
| Highlight: | stainless steel linear sieve machine,linear vibrating screen for metal powder |
||

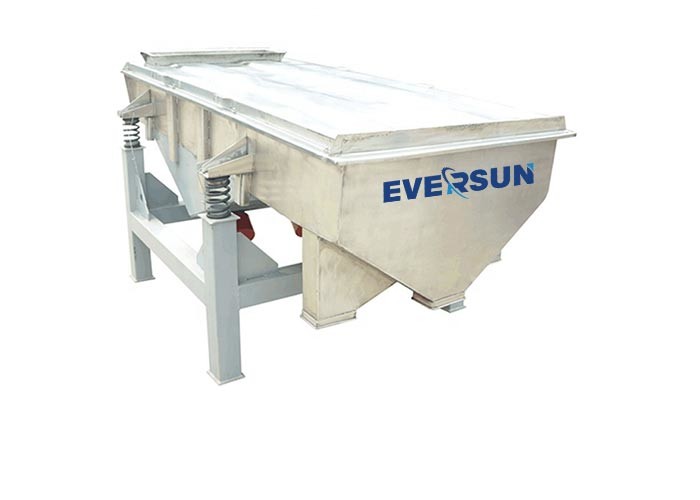

Xinxiang Factory Stainless Steel Metal Powder Linear Vibrating Screen
Product Introduction
| Name: | Xinxiang Factory Stainless Steel Metal Powder Linear Vibrating Screen | ||
| Mesh Size | 2~500 | ||
| Motor | Italy OLI motor, Swiss ABB motor | ||
| Voltage | Customized | ||
| Materials | Carbon Steel, SUS304, SUS316L | ||
| Application | powder, granule, bulk solids, liquid | ||
| Customized service | Available | ||
The EVERSUN linear vibrating screen is composed of two vibration motors, a sieve box, a screen mesh, a vibration absorbing
body an a vibration damping device. The excellent horizontal motors are used as the power source to make the material be
sifted on the screen while moving forward in a straight line. It can be equipped with single or multi-layer screens to achieve
grading, impurity removal, powder removal, inspection, washing, dehydration and other purposes.
Product Structure
Features and Advantages
Easy to repace screen and parts
Using a special grid structure design, the screens and parts can be easily changed and tighten.
High capacity and Friendly working space
With excellent structuer of machine and motors, the output is very high and working noise is low.
High sieving precision
The material has a long stroke on the screen surface, high screening precision and large processing capacity.
Movable screening process
At the same time of screening, the material has been transported over long distances.
Suitable for different screening sizes
Change the screen spacing and inclination according to material size, permeability probability and productivity
Flexible machine structures
Different shapes and structures can be designed according to the production site.
Good sealing and minimal dust spillage
Fully enclosed structure, automatic discharge lead to nearly zero rate of dust spillage.
Low maintenance cost and long service time
All parts of the screen body are welded properly with excellent steel plates,and the overall rigidity is good, firm and reliable for very long time.
Technical Parameter
| Model | Screen Specification(mm) | Layers | Mesh Size(mm) | Particle Size(mm) | Vibrating Frequency(r/min) | Double Amplitude(mm) | Power(KW) |
| EZYS-525 | 500X2500 | 1-6 | 0.074-10 | 0.06-15 | 960,1450 | 4-8 | 2X0.4,2X0.75 |
| EZYS-1020 | 1000X2000 | 1-6 | 0.074-10 | 0.07-20 | 960 | 4-8 | 2X0.75,2X1.5 |
| EZYS-1025 | 1000X2000 | 1-6 | 0.074-10 | 0.07-15 | 960,1450 | 5-8 | 2X0.4,2X0.75 |
| EZYS-830 | 800X3000 | 1-6 | 0.074-10 | 0.1-20 | 960 | 5-8 | 2X0.75,2X1.5 |
| EZYS-1030 | 1000X3000 | 1-6 | 0.074-10 | 0.1-20 | 960 | 6-8 | 2X0.75,2X1.5 |
| EZYS-1224 | 1200X2400 | 1-3 | 0.074-10 | 0.1-23 | 960 | 6-8 | 2X0.75,2X1.5 |
| EZYS-1230 | 1200X3000 | 1-3 | 0.074-10 | 0.1-23 | 960 | 6-8 | 2X1.5 |
| Machine can be customized based on your need | |||||||
FAQ
Q:Is it special requirement available?
A:Yes, both ODM&OEM is available
Q: How about the warranty of equipments purchased?
A: One year for whole machine except the consumable and wearing parts. We provide technical supports and solutions for the
whole using life.
Q: How long will I receive my order?
A: Normal delivery is about 7 working days. Ending delivery schedule depends on the quantity and items you ordered.
Q: How about the package, can I use my own logo on packages?
A:Normally packed in fumigation-free plywood case. We can mark your own logo on the packages. Neutral packing is available.
Application
Our Service
1. Detailed pre-sale sieving suggestion.
2. Customization service.
3. Online technical support.
4. Video inspection of machine before delivery
5. Video installation of machine
6. Reliable after sale service.
7. 18 months quality guarantee and life time technical assistance.
8. We can send engineeres to clients' company for assistance.
9. All the assistance needed from clients.
