Chemical Powder Separating Horizontal Centrifugal Sifter

Basic Information
Place of Origin: CHINA
Certification: ISO,CE
Model Number: EQLS-18065
Minimum Order Quantity: 1 set
Price: USD$1000~$7000 per set
Packaging Details: Standard export wooden package
Delivery Time: within 15 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000SETS/YEAR
Detail Information
Name: Centrifugal Screener Motor: Italy OLI Motor
Application: Food, Chemical, Pharmacy, Mining.,etc Layer: 1~5
Type: Horizontal Mesh Size: 2~500
High Light:

chemical powder centrifugal screener


horizontal industrial powder sifter

Product Description

EVERSUN Horizontal Airflow Vibrating Screen Coffee Powder Centrifugal Sifter


Features & Advantages

  • The whole machine is small in size, light in weight, stable and vibration-free, no noise, good airtightness, no dust, high efficiency;
  • The shell structure is novel, the installation is simple, and the control is convenient;
  • It can be used in single or multi-machine, continuous operation for a long time, safe and reliable;
  • The screen is washed by the cyclone, which can automatically clear the net;
  • The crushing function is applied to the agglomerated material;
  • New type of outer spherical bearing to extend the service life;
  • The machine can be matched with the pneumatic conveying system and directly connected to the airway to save resources;
  • The new design, the gas protection system will be able to purify the air and send it to both ends of the equipment, which can effectively reduce the temperature produced during the operation of the equipment
  • Can be specially designed to meet special requirements.

Product Description

Name: EVERSUN Horizontal Airflow Vibrating Screen Coffee Powder Centrifugal Sifter
Mesh Size 2~500
Motor ABB motor
Voltage Customized
Materials Carbon Steel, SUS304, SUS316L
Application light powder
Customized service Available


The unique design of Powder Centrifugal Sifter makes itself efficiently separate ultra light fine materials, such as pharmacy

powder, food powder, chemical powder.,etc

Powder Centrifugal Sifter is cylindrical and placed in the machine body, and the material is mixed with the airflow after passing

through the screw conveyor system. The atomized materials enters the wire cylinder, and the material is subjected to the centrifugal

force and the cyclone propulsion force through the wind turbine blade inside the wire cylinder, so that the material is sprayed through

the sieve, and fine material is discharged from the fine material discharge port, and the oversized material that cannot pass through

the sieve is discharged from the other port.

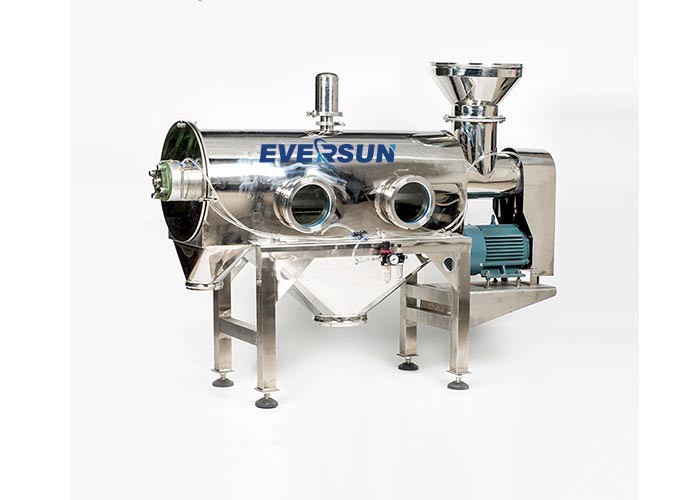

 Chemical Powder Separating Horizontal Centrifugal Sifter 0

Product Structure

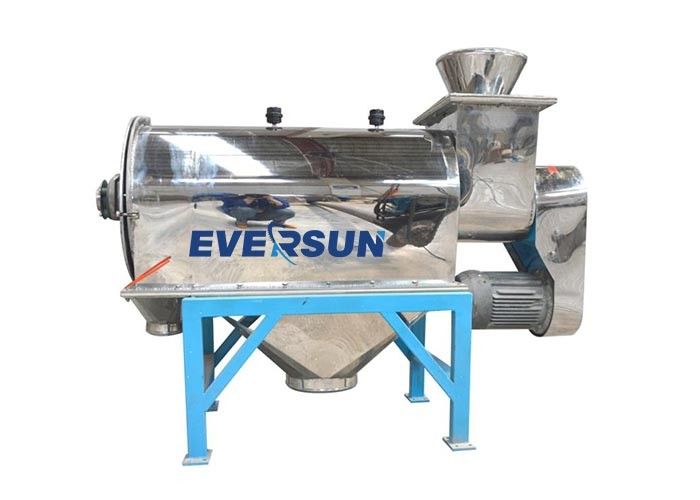

Chemical Powder Separating Horizontal Centrifugal Sifter 1


Chemical Powder Separating Horizontal Centrifugal Sifter 2


Q: How many kinds of material are supported?
A: All stainless steel (304, 316L)
All carbon steel Q235A
Contact part Stainless steel.
Q:Is it special requirement available?
Q: How long will my order take?
A: Normal delivery is about 7 working days. Ending delivery schedule depends on the quantity and items you ordered.


Technical Parameter


Screen cage size(mm)


Screen material Structure Material Mesh size



EQLS-18065 180mm*650mm Stainless steel or Nylon screen Q235A



≤ 500

EQLS-30010 300mm*1000mm SUS304 4
EQLS-50013 500mm*1300mm Q235A 5


Our Unique Service

1. Detailed pre-sale sieving suggestion.
2. Customization service.
3. Online technical support.
4. Video inspection of machine before delivery
5. Video installation of machine
6. Reliable after sale service.
7. 18 months quality guarantee and life time technical assistance.
8. We can send engineeres to clients' company for assistance.
9. All the assistance needed from clients.
