products

Big Capacity Rectangle Linear Sieving Vibratory Screen For Cement

Basic Information
Place of Origin: CHINA
Brand Name: EVERSUN MACHINERY
Certification: ISO,CE
Model Number: EZXS-1020
Minimum Order Quantity: 1 set
Price: USD$2000~$7000 per set
Packaging Details: Standard export wooden package
Delivery Time: within 15 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000SETS/YEAR
Detail Information
Type: Rectangular Vibrating Sieve Machine Application: Food, Chemical, Pharmacy, Mining.,etc
Layer: 1~5 Motor: Italy OLI Motor, Swiss ABB Motor
Mesh Size: 2~500 Warranty: 1 Year
High Light:

rectangle linear vibrating screen machine

,

cement linear vibrating screen


Product Description

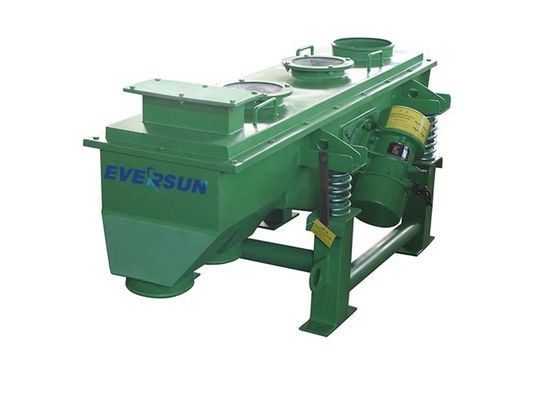

Big Capacity EZXS-1020 Cement Sieving Machine Linear Vibratory Screen




The rectangular vibrating separator uses double vibrating motors to be power source, when two motors synchronous reversely rotate, exciter forces eccentric block generates are undone in parallel with the direction of motor axis and unite as one across the motor axis direction, so its movement trajectory is linear.

The EVERSUN linear vibrating screen is composed of two vibration motors, a sieve box, a screen mesh,

a vibration absorbing body an a vibration damping device. The excellent horizontal motors are used as the

power source to make the material be sifted on the screen while moving forward in a straight line. It can be

equipped with single or multi-layer screens to achieve grading, impurity removal, powder removal, inspection,

washing, dehydration and other purposes.



Product Introduction

Name: Big Capacity EZXS-1020 Cement Sieving Machine Linear Vibratory Screen
Mesh Size 2~500
Motor Italy OLI motor, Swiss ABB motor
Voltage Customized
Materials Carbon Steel, SUS304, SUS316L
Application powder, granule, bulk solids, liquid
Customized service Available



Product Details

Big Capacity Rectangle Linear Sieving Vibratory Screen For Cement 0

Features and Advantages

  • Easy to repace screen and parts
    Using a special grid structure design, the screens and parts can be easily changed and tighten.

  • High capacity and Friendly working space
    With excellent structuer of machine and motors, the output is very high and working noise is low.

  • High sieving precision
    The material has a long stroke on the screen surface, high screening precision and large processing capacity.

  • Movable screening process
    At the same time of screening, the material has been transported over long distances.

  • Suitable for different screening sizes
    Change the screen spacing and inclination according to material size, permeability probability and productivity

  • Flexible machine structures
    Different shapes and structures can be designed according to the production site.

Big Capacity Rectangle Linear Sieving Vibratory Screen For Cement 1

How does the linear vibrating screen work
The motor through a vee belt makes the eccentric of the activator start high-speed rotation.The operation of

the eccentric block generates a lot of centrifugal force, stimulate the screen forming a certain amplitude circle

movement. Materials on the tilted screen surface do continuous throwing movement after receiving the impulse

given by the sieving box. During the process of collision of materials and sifter, the grain which is less than the

screen hole will be chosen so as to realize the grading.

Big Capacity Rectangle Linear Sieving Vibratory Screen For Cement 2

Our Service

1. Detailed pre-sale sieving suggestion.
2. Customization service.
3. Online technical support.
4. Video inspection of machine before delivery
5. Video installation of machine
6. Reliable after sale service.
7. 18 months quality guarantee and life time technical assistance.
8. We can send engineeres to clients' company for assistance.
9. All the assistance needed from clients.

Technical Parameter

Model Screen Specification(mm) Layers Mesh Size(mm) Particle Size(mm) Vibrating Frequency(r/min) Double Amplitude(mm) Power(KW)
EZYS-525 500X2500 1-6 0.074-10 0.06-15 960,1450 4-8 2X0.4,2X0.75
EZYS-1020 1000X2000 1-6 0.074-10 0.07-20 960 4-8 2X0.75,2X1.5
EZYS-1025 1000X2000 1-6 0.074-10 0.07-15 960,1450 5-8 2X0.4,2X0.75
EZYS-830 800X3000 1-6 0.074-10 0.1-20 960 5-8 2X0.75,2X1.5
Machine can be customized based on your need

FAQ

1.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test

on every machine before delivery.

2.How about price?
we are factory and be able to give you the best price with good quality, and we have a policy that “ for saving

time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can

be given according to quantity”.

3.Service and Payment Terms?
A. We usually accept T/T, L/C;
B.We take pictures of finished products before delivery.
