Vibratory Screening Machine

Product description

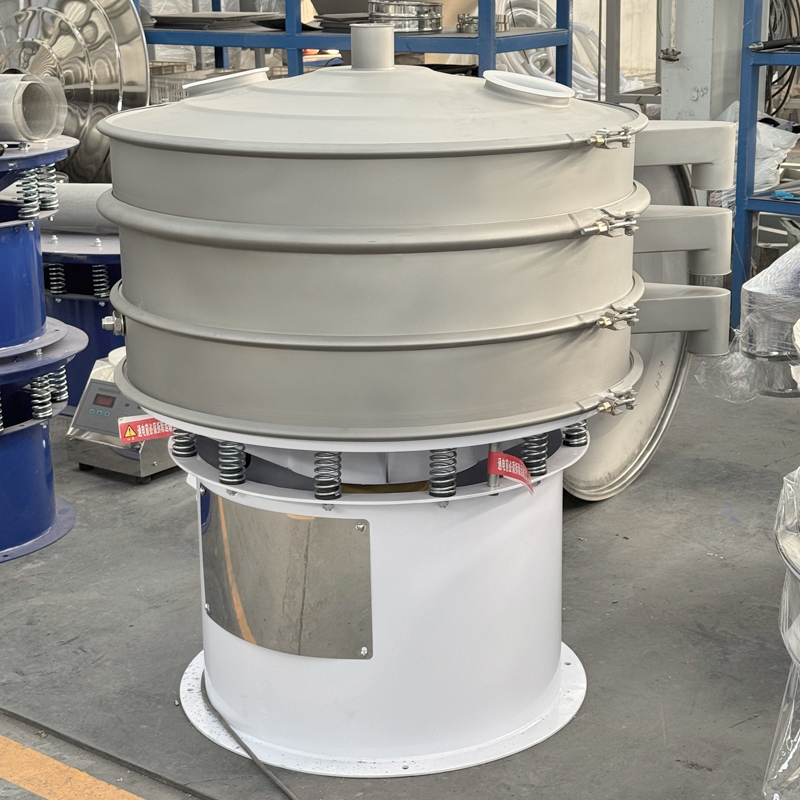

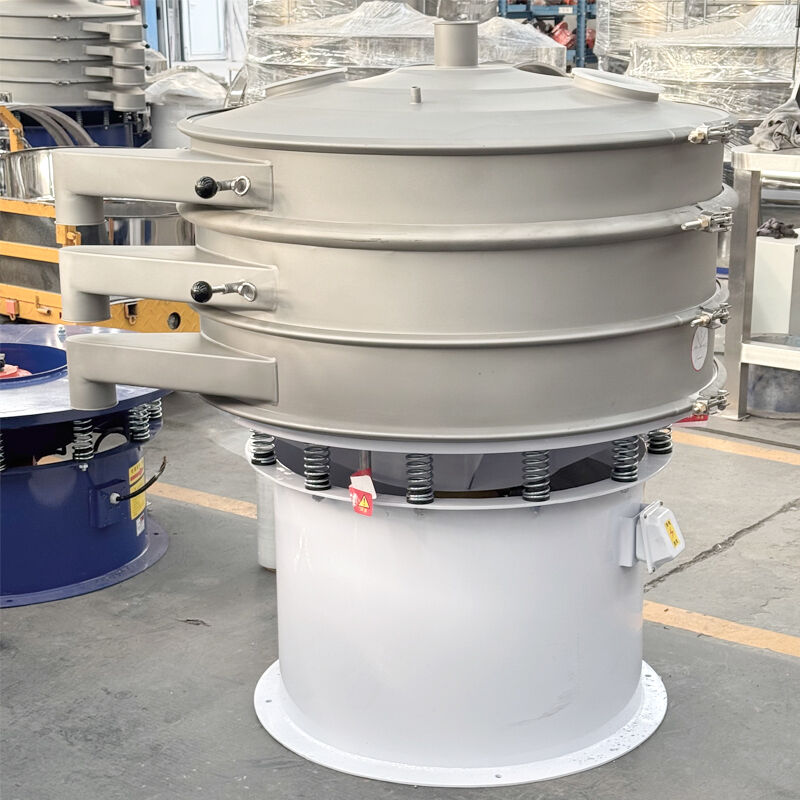

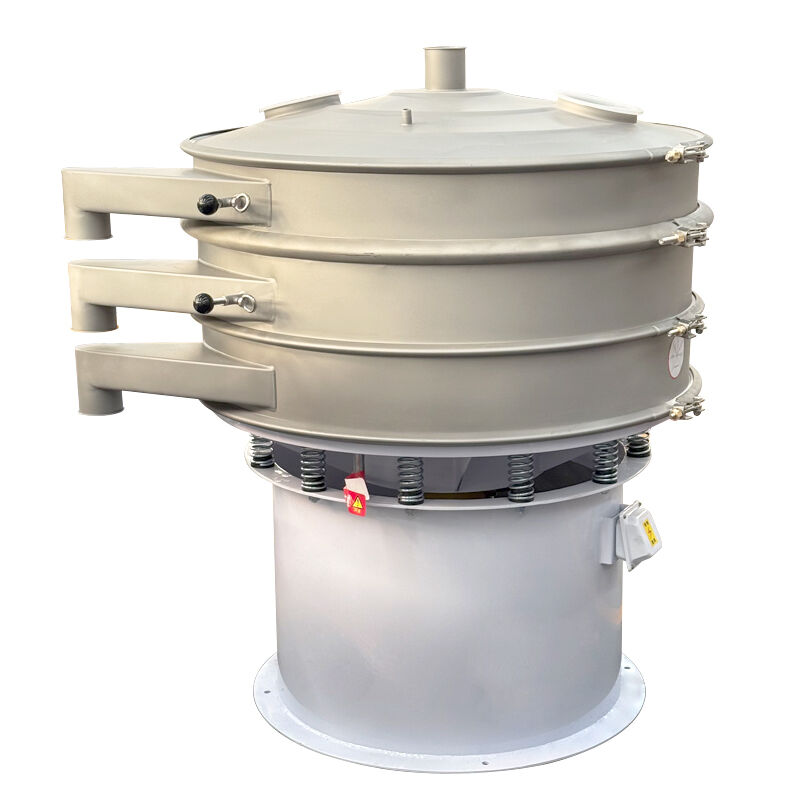

The rotary vibrating screen is a common and highly efficient screening device, usually with a cylindrical structure. It generates multi-dimensional vibrations through vibrating motors to achieve rapid stratification and screening of materials. It is widely used in industries such as chemical engineering, food, and metallurgy, capable of precisely classifying materials like particles and powders according to their particle size. This equipment features high screening accuracy, large processing capacity, compact structure, and is easy to clean and maintain. It can be equipped with multiple layers of screens as needed to meet different production requirements.

Working principle
The core of the rotary vibrating screen lies in the vertical vibrating motor installed on the screen machine as the vibration source. At both ends of the motor, there are eccentric weights. By adjusting the phase angle of the weights, a complex three-dimensional motion trajectory can be synthesized: the combined horizontal, vertical and inclined directional vibration forces form a unique three-dimensional rotary vibration motion.
The material does not move in a simple straight line on the surface of the screen, but follows a cycloidal spiral trajectory. This movement enables the material to fully disperse and stratify. Fine particles quickly pass through the screen, while coarse particles move along the spiral trajectory towards the discharge outlet, thus achieving efficient, precise screening, filtration or classification.

Features & Benefits

1.Efficient and precise screening
The materials move in a three-dimensional spiral motion on the screening surface, achieving thorough dispersion, having strong anti-blocking net performance, and maintaining high screening accuracy.
2. Multi-level classification, saving space
Configurable multi-layer screens enable multi-stage separation in a single operation, with large processing capacity and small footprint.
3. Fully enclosed and environmentally friendly
The sealed design effectively prevents dust from spilling out, meeting the requirements for cleanliness, explosion-proofing or aseptic production.
4. Easy to maintain and clean
The modular design makes it convenient to replace the screen and clean the equipment, meeting the standards of the food and pharmaceutical industries.
5. Flexible adjustment, strong adaptability
By adjusting the vibration force and trajectory, it can be widely applied to various working conditions such as dry and wet screening, and liquid filtration.
6. Smooth operation, low noise
Good power balance, stable operation, no need for special foundation fixation, friendly to the working environment.
7. Durable and sturdy
The structure is well-designed and the core components are of high quality. It is suitable for long-term continuous production and has a long service life.

Product parameter

Production line diagram

1. Vacuum feeding into the mixer, automated, dust-free
2. The mixed materials directly enter the sieve machine for screening

Detail display

Application
