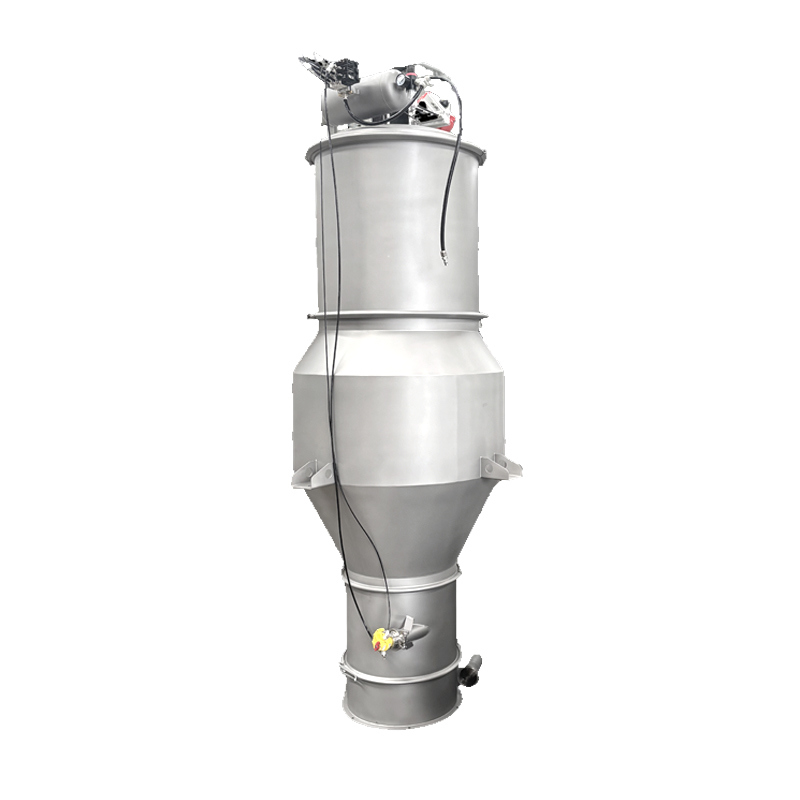

Vacuum Conveyor

Product description

The continuous vacuum feeding machine is an automated conveying equipment specifically designed for powder and granular materials, capable of performing uninterrupted material transfer operations.
It is mainly composed of core components such as a vacuum pump, conveying pipelines, and hoppers. It features a fully enclosed conveying characteristic, which can effectively prevent dust and material contamination, and significantly improve the loading efficiency.
This equipment is highly adaptable and has been widely used in various industries such as food and chemical manufacturing, where there are strict requirements for material cleanliness and transportation efficiency. It is applied in numerous production lines across these industries.

Working principle

The working principle and process of the continuous vacuum feeding machine is as follows: First, start the vacuum pump to create a negative pressure inside the conveying system. Under the effect of the pressure difference, the materials are sucked into the conveying pipeline from the material source through the suction port. Then, they move continuously along the pipeline and enter the separation device. After the materials are separated from the gas flow, they fall into the target equipment. The gas is filtered and then discharged or recycled. The entire process does not require stopping, and the continuous material conveying is achieved by maintaining negative pressure throughout to ensure continuous operation.

Product features

1. Efficient and continuous: No need for downtime, ensuring uninterrupted material transportation and enhancing production line efficiency.
2. Clean and dust-proof: Fully enclosed structure, preventing moisture and impurities from the materials, and also preventing dust from spilling out.
3. Easy operation: High level of automation, reducing the need for manual labor; core components are easy to maintain and have fewer malfunctions.
4. Strong adaptability: Parameters can be adjusted according to the characteristics of the materials (particles, powders, etc.), with a wide range of applications.
5. Safe and energy-efficient: Energy consumption is lower than that of traditional mechanical transportation, and it can avoid safety hazards associated with dust-containing materials.
6. Flexible space: Pipeline design, allowing for flexible planning of transportation routes and saving installation space in the factory.

Model	Hopper Capacity(L)	Working pressure	Conveying Capacity(kg/h)	Compressed air consumption
QVC-1	1.1	0.4-0.6Mpa	50-300	180NL/min
QVC-2	6	0.4-0.6Mpa	100-700	360NL/min
QVC-3	12	0.4-0.6Mpa	300-1500	720NL/min
QVC-4	42	0.4-0.6Mpa	600-3000	1440NL/min
QVC-5	60	0.4-0.6Mpa	900-6000	2880NL/min

Product details

Production line diagram

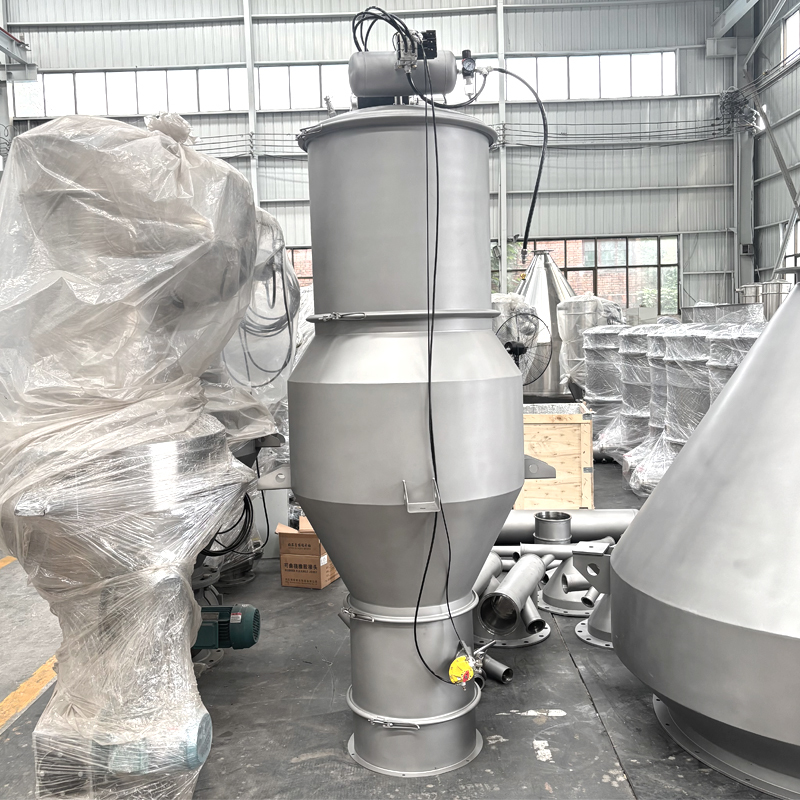

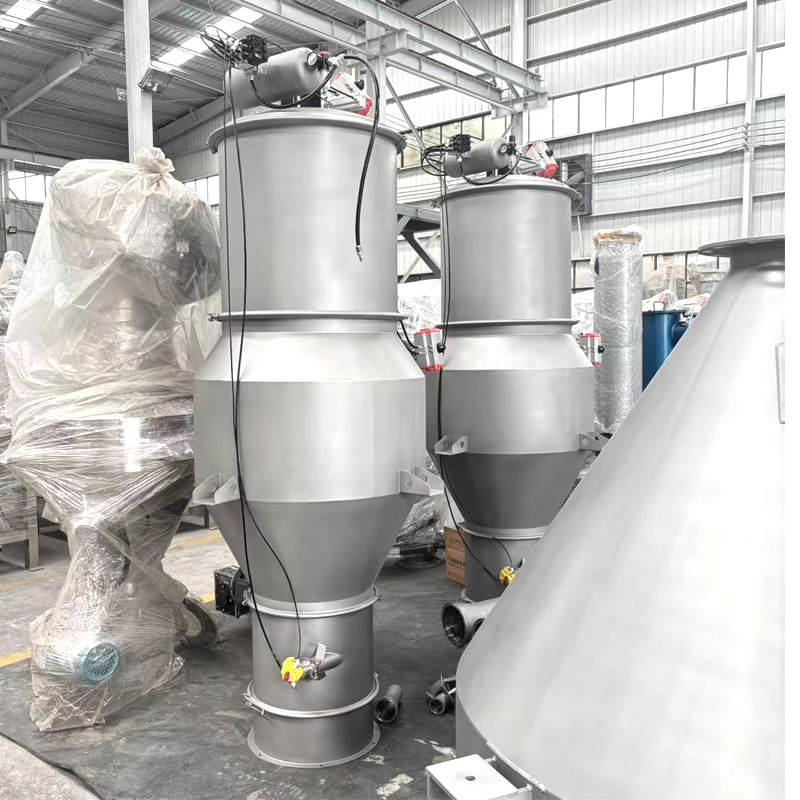

Product shows

Application

Wide range of applications: The vacuum loader is mainly used for conveying powdery and granular materials, such as raw pharmaceutical powders,

chemicalders, metal oxide powders, etc.; however, it is not suitable for conveying overly moist, sticky, or heavy materials.
