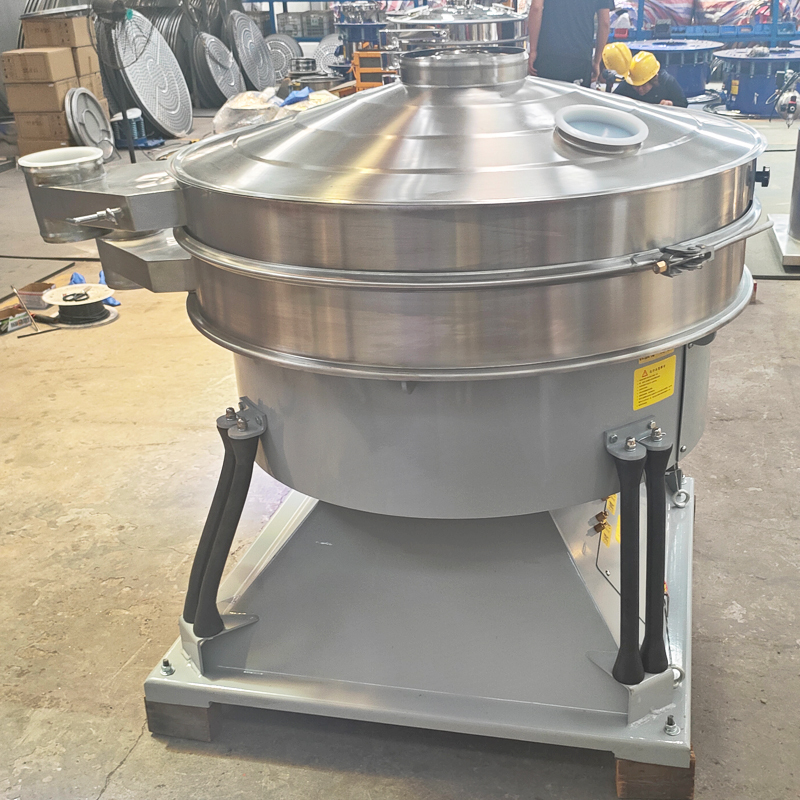

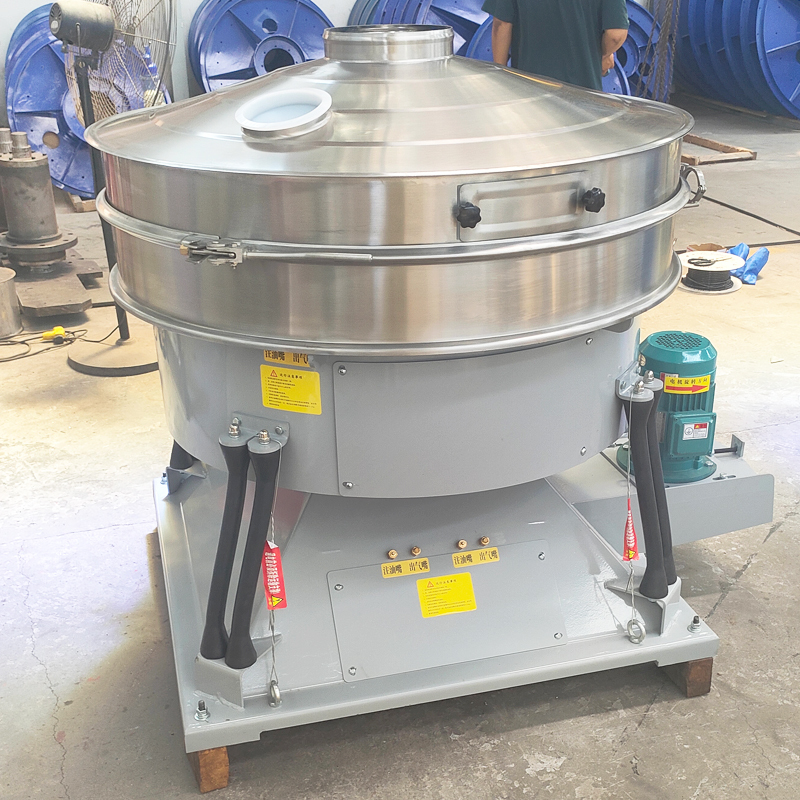

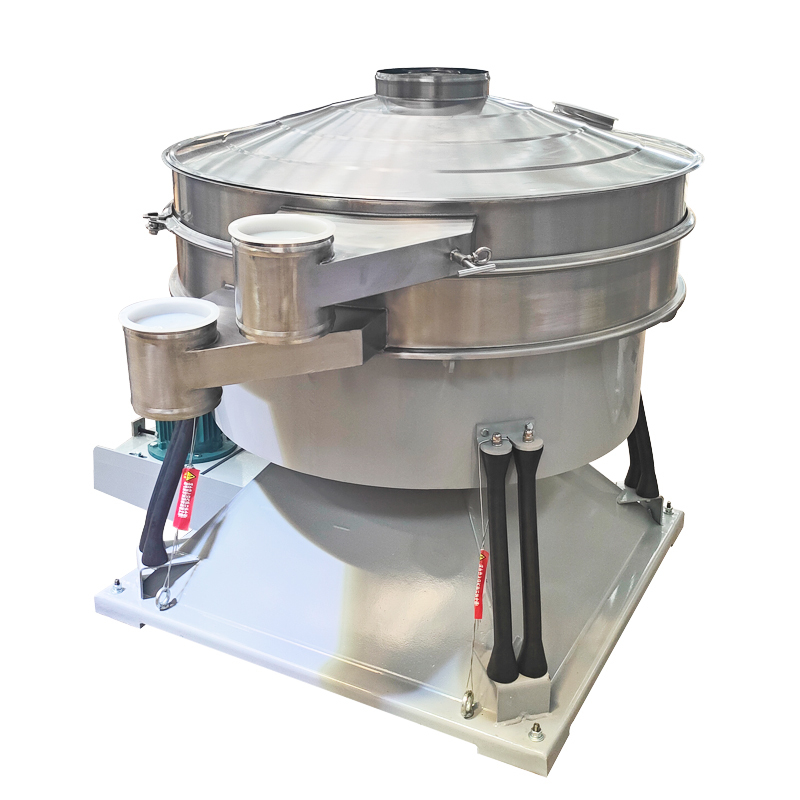

High-yield stainless steel food-grade tumbler sieve grain separator

Product Introduction

The swing screen is an efficient fine screening equipment, featuring a multi-layer screen surface design. Through the three-dimensional swing motion of the screen body, material classification is achieved. Under the influence of gravity and swing force, the material slides and turns evenly along the screen surface, allowing particles of different sizes to quickly pass through the corresponding screen holes, while impurities or coarse materials are discharged from the end. It has advantages such as high screening efficiency, minimal material damage, low noise, and long screen mesh life. It is widely used in industries such as food, medicine, chemical engineering, and mining, especially suitable for the processing of fine powder and granular materials with high screening accuracy requirements.

Working principle

The working principle of the vibrating screen is based on the three-dimensional motion mechanism similar to that of manual screening. It achieves a unique oscillating trajectory by driving the screen body through a driving device. Specifically, under the action of the power, the screen body simultaneously undergoes a combined motion of inclination, rotation and forward and backward swinging. This motion causes the materials on the screen surface to be subjected to continuous thrust and flipping forces: small particle materials, under the action of gravity and motion inertia, quickly pass through the sieve holes and enter the lower layer or collection area; while large particles or impurities are guided by the oscillating force to move along the inclined direction of the screen surface towards the end, and finally are discharged. By adjusting the oscillation frequency, amplitude and screen surface inclination angle, it can adapt to the characteristics of different materials and achieve efficient and precise classification screening.

Product Features

1. High screening efficiency: Three-dimensional oscillation reduces accumulation and blockage, with an efficiency of over 95%.
2. High precision: Gentle movement avoids bouncing and missed sieving, and enables more precise classification of fine powder and micro-particles.
3. Minimal material damage: Gentle movement reduces the fragmentation or shape distortion of fragile materials.
4. Long life of screen mesh: The screen surface is evenly stressed and has low impact, reducing wear and maintenance costs of the screen mesh.
5. Strong adaptability: It can be adjusted by parameters to adapt to materials of different particle sizes, specific gravity, and fluidity.
6. Low noise, easy maintenance: Low operating noise, modular design makes cleaning and replacement of the screen mesh convenient.

Chemicals, food and spices, plastics, mining, pharmaceuticals, woodworking and plywood, metallurgy, rubber, feed, fertilizer, sugar and industries, etc.

Packing and shipping

1. Package:

Choose a wooden box with sturdy packaging materials to provide adequate protection and support.

2. Logo and documentation:

Clearly mark the name, model, weight, size and quantity of the equipment on the packaging.
3. Prepare necessary shipping documents and certificates, such as invoices, packing lists, transportation contracts and insurance certificates, etc.
4. Shipping method:

Choose the appropriate shipping method, such as sea, air or land, making your choice based on destination and time requirements.

Why choose us

About us





FAQ

Q1: What particle size ranges is the Electric Tumbler Sieve suitable for?
A: Electric Tumbler Sieve is suitable for a wide range of particle sizes, from micron-level fine particles to millimeter-level coarse particles, and can be screened and classified.

Q2: What is the screening accuracy of the electric swing screen?
A: The screening accuracy of the electric swing screen depends on factors such as screen hole size, material properties and screening parameters. Normally, it can achieve high screening accuracy and can meet the screening requirements of different particle sizes.
Q3: What are the advantages of Electric Tumbler Sieve compared with other types of screening equipment?
A: Compared with other types of screening equipment, Electric Tumbler Sieves have higher screening accuracy, screening efficiency and flexibility.
