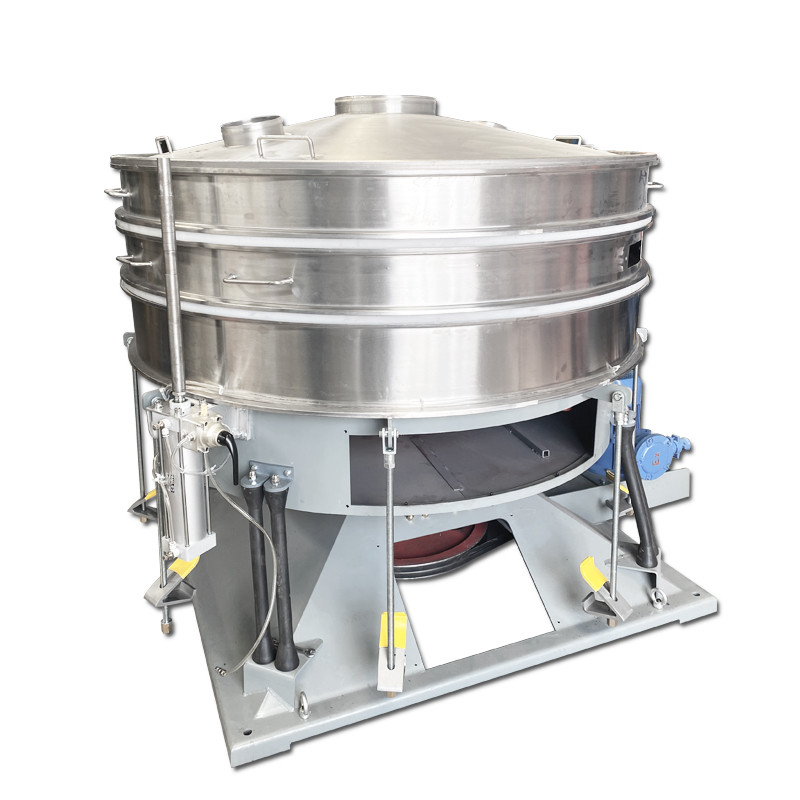

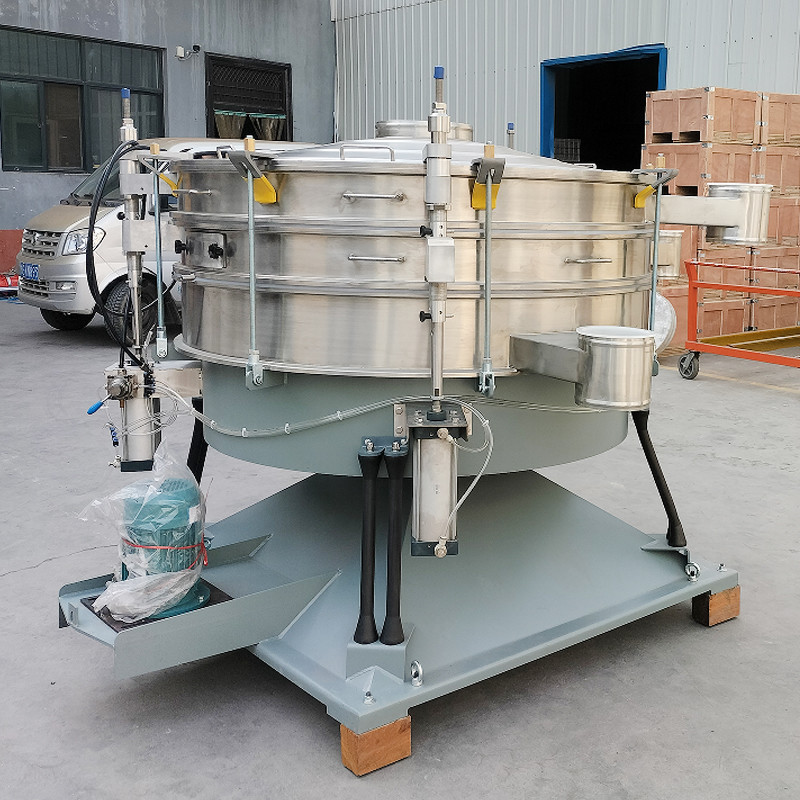

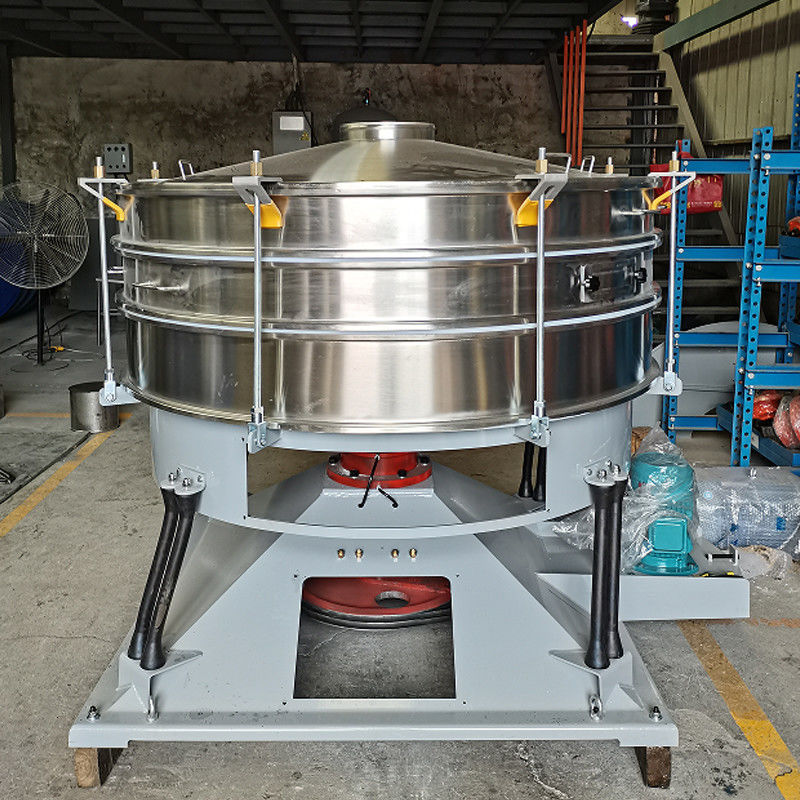

High-yield stainless steel food-grade tumbler sieve grain separator

Product Introduction

The swing screen is a screening device designed by simulating manual screening actions. Under the action of the driving device, its screen surface generates three-dimensional circular motion, causing the material to move forward in a spiral shape and be screened layer by layer. Fine particles are discharged through the screen holes, while coarse particles are discharged from the end. This equipment features high screening accuracy, large processing capacity, long screen life and other advantages. It also operates with low noise and less dust. It is widely used in fine screening operations in the chemical, food, mining and other fields, especially suitable for the processing of powder and granular materials with strict requirements for particle size classification.

Working principle

The swing screen mechanizes the manual screening actions of "flipping, shaking and sieving" through "three-dimensional compound motion + spiral screening path", which not only improves efficiency but also ensures accuracy. It is particularly suitable for industrial scenarios with high requirements for screening quality.

Product Features

1. High precision: Fine screening of 0.074-5mm, with an accuracy of over 95%;
2. Large processing capacity: The spiral trajectory makes the production capacity 30% higher than that of traditional screens.
3. Durable screen mesh: Low wear, service life extended by 50%-80%;
4. Low noise and environmentally friendly: Noise ≤75dB, with little dust.
5. Strong adaptability: The trajectory is adjustable and supports 2-5 layers of multi-granularity classification.
6. Easy maintenance: Modular design reduces maintenance time.



Chemicals, food and spices, plastics, mining, pharmaceuticals, woodworking and plywood, metallurgy, rubber, feed, fertilizer, sugar and industries, etc.



Packing and shipping

1. Package:

Choose a wooden box with sturdy packaging materials to provide adequate protection and support.

2. Logo and documentation:

Clearly mark the name, model, weight, size and quantity of the equipment on the packaging.
3. Prepare necessary shipping documents and certificates, such as invoices, packing lists, transportation contracts and insurance certificates, etc.
4. Shipping method:

Choose the appropriate shipping method, such as sea, air or land, making your choice based on destination and time requirements.



Why choose us

About us





FAQ



Q1: What particle size ranges is the Electric Tumbler Sieve suitable for?
A: Electric Tumbler Sieve is suitable for a wide range of particle sizes, from micron-level fine particles to millimeter-level coarse particles, and can be screened and classified.

Q2: What is the screening accuracy of the electric swing screen?
A: The screening accuracy of the electric swing screen depends on factors such as screen hole size, material properties and screening parameters. Normally, it can achieve high screening accuracy and can meet the screening requirements of different particle sizes.
Q3: What are the advantages of Electric Tumbler Sieve compared with other types of screening equipment?
A: Compared with other types of screening equipment, Electric Tumbler Sieves have higher screening accuracy, screening efficiency and flexibility.
