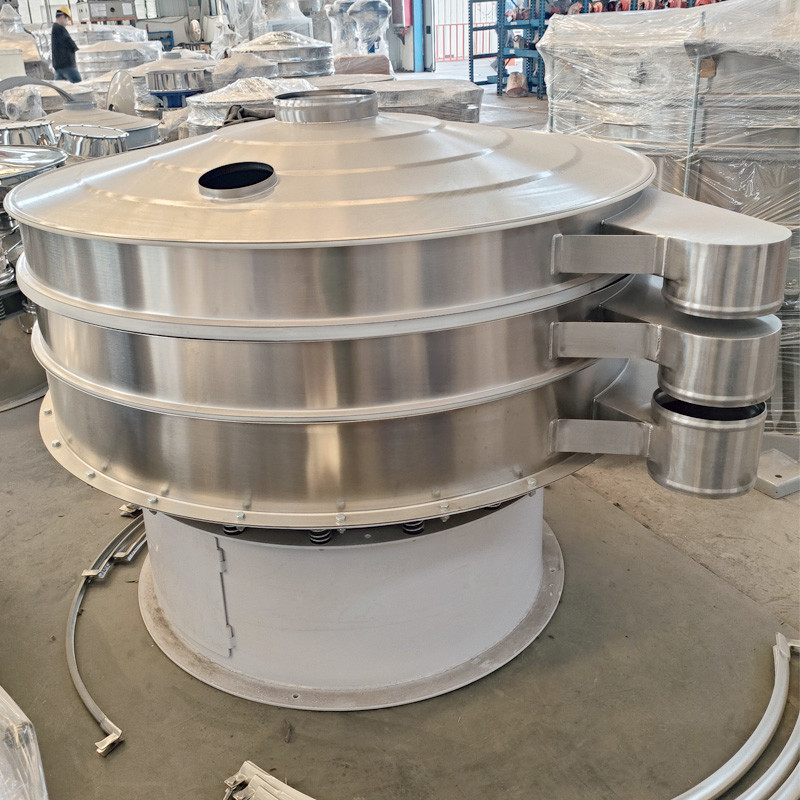

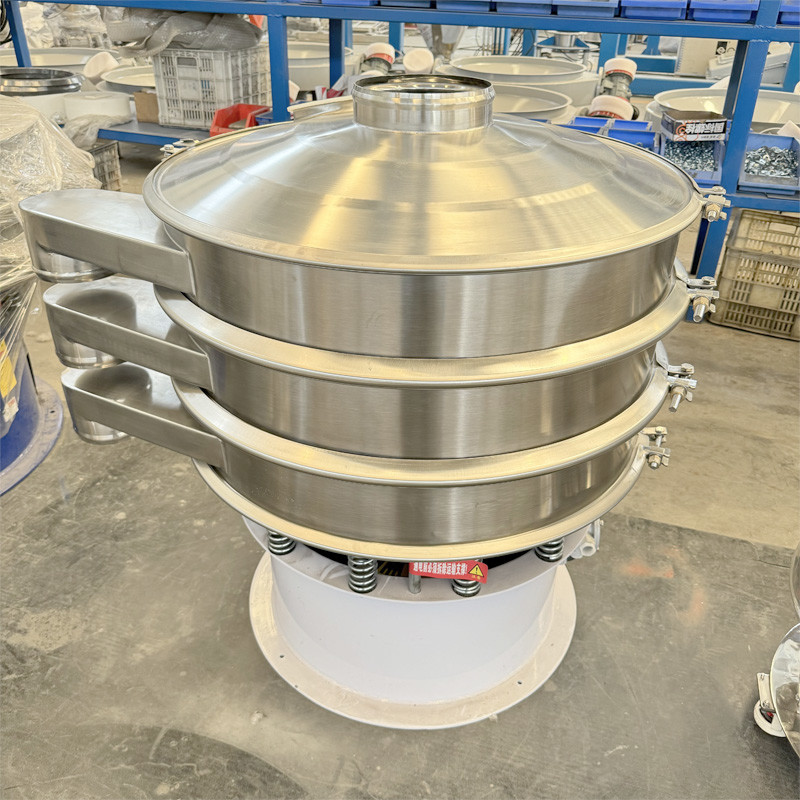

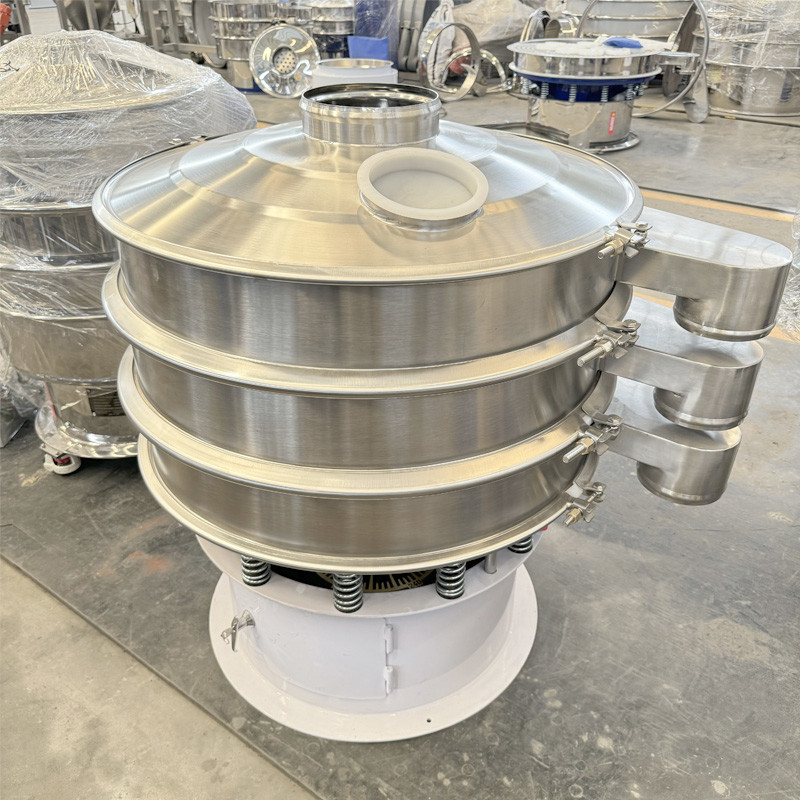

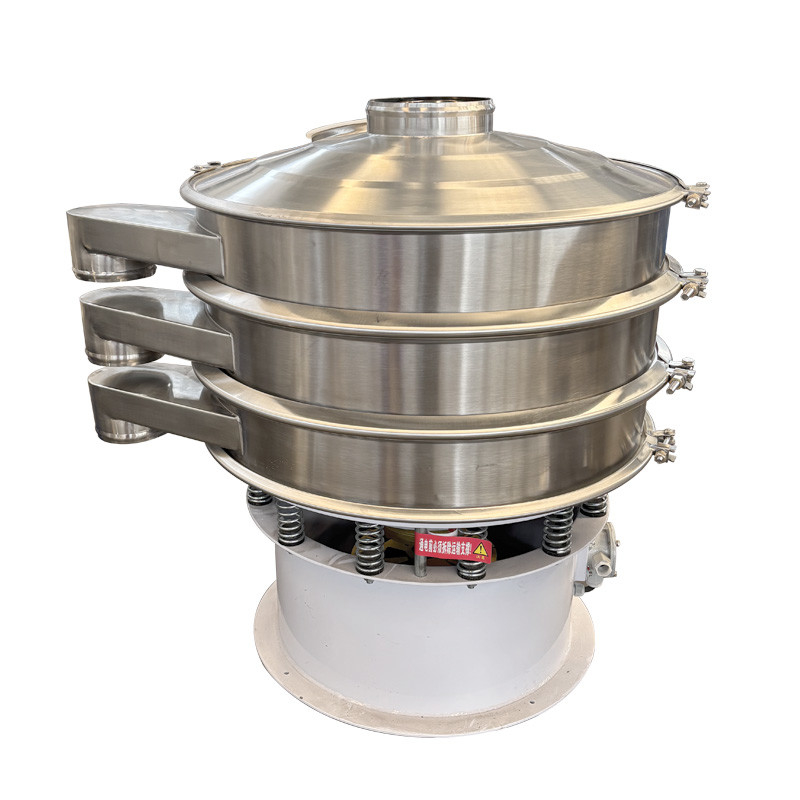

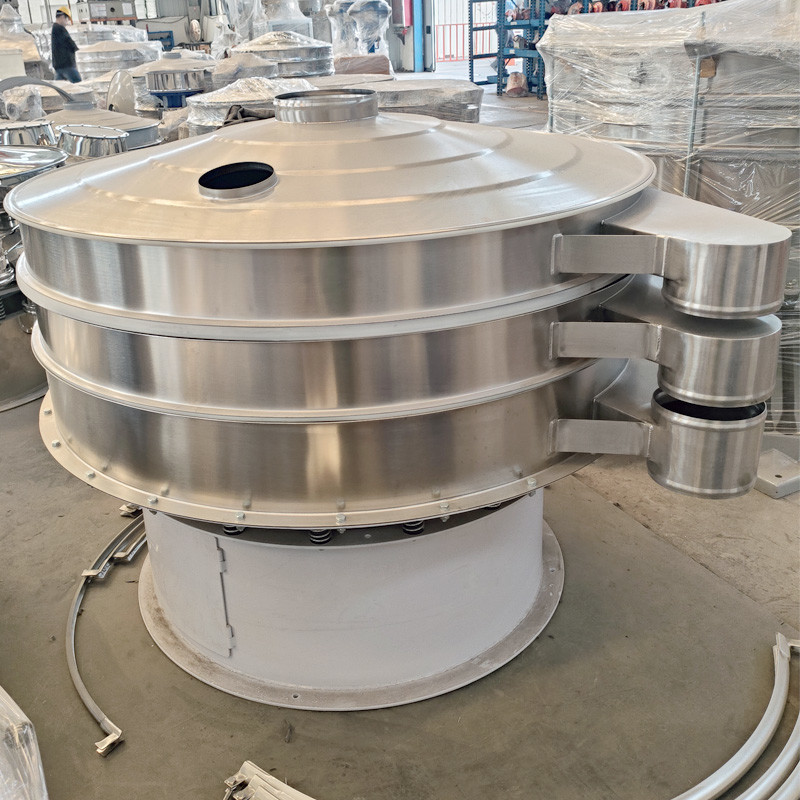

Vibratory Screening Machine
Product description
The rotary vibrating screen is a powerful screening device. Driven by a vertical vibrating motor, it generates three-dimensional vibration, causing the materials to move in a spiral jumping trajectory, achieving efficient and precise screening. It has high screening efficiency and controllable precision, with the minimum particle size reaching 5 microns. Compact structure, small floor space and flexible installation; The operation and maintenance are convenient, and the screen replacement is easy. The fully enclosed design has strong sealing performance and effectively prevents dust. It can handle various forms of materials and is widely used in many fields such as chemical engineering, food, and medicine. It is an ideal screening tool in industrial production.
Working principle
The rotary vibrating screen takes the vertical vibrating motor as the power core. When the motor is running, the eccentric blocks at both ends rotate at high speed, generating centrifugal force, which causes the motor to produce three-dimensional vibration in horizontal, vertical and torsional directions, and transmits it to the screen frame and screen mesh. After the material falls onto the screen surface from the feeding port, under the effect of vibration, fine particles pass through the screen and are discharged as under-screen materials, while larger particles spiral and jump along the screen surface to the discharge port for discharge. Moreover, the screening effect and accuracy can be precisely controlled by adjusting the Angle and amplitude of the eccentric block of the vibration motor and the mesh size of the screen.
Features & Benefits
Firstly, the screening is highly efficient and precise. The three-dimensional vibration mode enables the material to disperse and pass through the screen quickly. It has a large processing capacity, with the minimum screening particle size reaching 5 microns, which can meet different fine classification requirements.
Secondly, it has strong applicability and can handle various forms of materials such as dry, wet, granular and powdered materials, and is widely used in multiple industries including chemical engineering, food and medicine.
Thirdly, it has a compact and exquisite structure, occupies a small area and is flexible to install, making it suitable for various production sites.
Fourth, it is convenient to operate and maintain, the screen replacement is simple, the equipment operates stably with a low failure rate, and the maintenance cost and time are significantly reduced.
Fifth, it has excellent sealing performance. The fully enclosed design, combined with a dust removal device, effectively prevents dust from overflowing, ensuring a clean and safe production environment.
Product parameter
| Model |
Equipment diameter |
Power(KW) |
Deck |
Effective screening area(m2) |
Screen mesh |
| EXZS-600 |
600mm/24inch |
0.25 |
1-5 |
0.2289 |
20 microns to 20 mm |
| EXZS-800 |
800mm/32inch |
0.55 |
0.4183 |
| EXZS-1000 |
1000mm/40inch |
0.75 |
0.6359 |
| EXZS-1200 |
1200mm/48inch |
1.1 |
0.9499 |
| EXZS-1500 |
1500mm/60inch |
1.5 |
1.5386 |
| EXZS-1800 |
1800mm/70inch |
3 |
1-4 |
2.2687 |
| EXZS-2000 |
2000mm/78inch |
4.5 |
2.8893 |
Design Drawing Display
Detail display
Application
Packaging & Shipping
Why Choose us
About us
We have been specializing in the production of Screening and conveying equipment for 13 years. China's vibrating screen industry top three. And we have done matching and OEM for many large companies. Including the world's top vibrating screen manufacturer, Sweco, USA, we have OEM
for his China region. And our products are often exported to Australia, Thailand, Indonesia, New Zealand and other countries.
We welcome customers or dealers to visit our factory and will arrange everything for you.Our factory address: West of the industrial and commercial office of Da Zhaoying Town, Xinxiang City, Henan Province.
