Vacuum Conveyor

Product description

The intermittent vacuum feeder is an efficient and practical automated material conveying equipment. It uses a vacuum pump to generate vacuum suction force, quickly drawing powdery and granular materials into the storage bin in a fully enclosed manner. Once the set quantity is reached, it automatically stops and discharges, completing one conveying cycle. This equipment has the advantages of being clean and environmentally friendly. It can prevent dust from spilling out and meet the hygiene requirements of the food, pharmaceutical and other industries. The operation is simple and convenient, reducing the labor intensity of workers. It can also flexibly adapt to the conveying requirements of different heights and distances, and has strong material applicability. It is widely used in multiple fields such as chemical engineering and food, with low maintenance costs and effective improvement of production efficiency.

Working principle

After the equipment is started, the vacuum pump begins to work, rapidly extracting air from closed Spaces such as the feeding pipeline and storage bin, creating a vacuum environment in these areas. At this point, the material outside the feeding port is pushed into the feeding pipe under the action of atmospheric pressure. As the pipeline is in a vacuum state, the materials are sucked into the storage bin along the pipeline. When the material in the storage bin reaches the pre-set feeding amount, a signal is sent through devices such as the material level sensor. After receiving the signal, the control system will stop the operation of the vacuum pump and the vacuum suction force will disappear. Subsequently, under the effect of gravity, the materials are discharged from the discharge port of the storage bin and enter the next production stage, thus completing one material conveying cycle. Afterwards, the equipment can start the vacuum pump again according to production needs to begin the next feeding process. This intermittent cycle work continuously to achieve quantitative and efficient material transportation.

Product features

1. High material conveying accuracy: The intermittent vacuum feeder can precisely control the amount of material conveyed each time through setting, which can accurately meet the precise material quantity requirements in the production process. It is particularly suitable for production processes with high requirements for batching accuracy, such as the pharmaceutical and fine chemical industries.

2. Convenient for cleaning and maintenance: The intermittent working mode enables the equipment to have more time for cleaning and maintenance during each feeding interval. It is convenient to disassemble and clean components such as storage bins and pipelines, effectively avoiding material residue and cross-contamination. This is crucial for industries with strict hygiene requirements such as food and medicine.

3. Strong flexibility: The intermittent vacuum feeder can flexibly adjust the frequency of feeding and the amount of feeding each time according to production needs, which can better adapt to changes in different production batches and product specifications.

4. Low equipment cost: The structure of the intermittent vacuum feeder is relatively simple, so the manufacturing cost and procurement cost of the equipment are relatively low.

Model	Hopper Capacity(L)	Working pressure	Conveying Capacity(kg/h)	Compressed air consumption
QVC-1	1.1	0.4-0.6Mpa	50-300	180NL/min
QVC-2	6	0.4-0.6Mpa	100-700	360NL/min
QVC-3	12	0.4-0.6Mpa	300-1500	720NL/min
QVC-4	42	0.4-0.6Mpa	600-3000	1440NL/min
QVC-5	60	0.4-0.6Mpa	900-6000	2880NL/min





























Product details

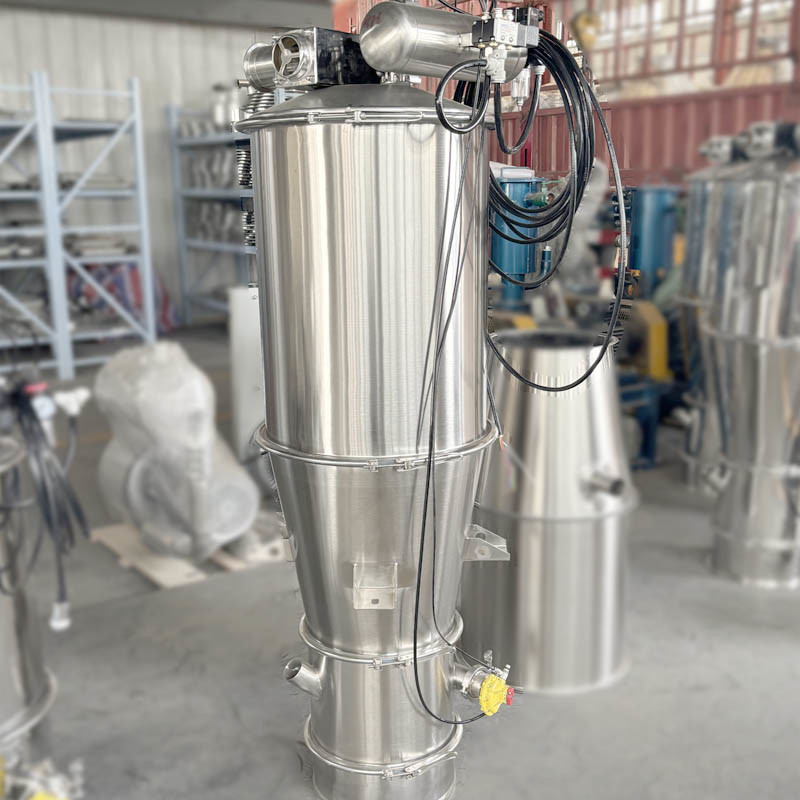

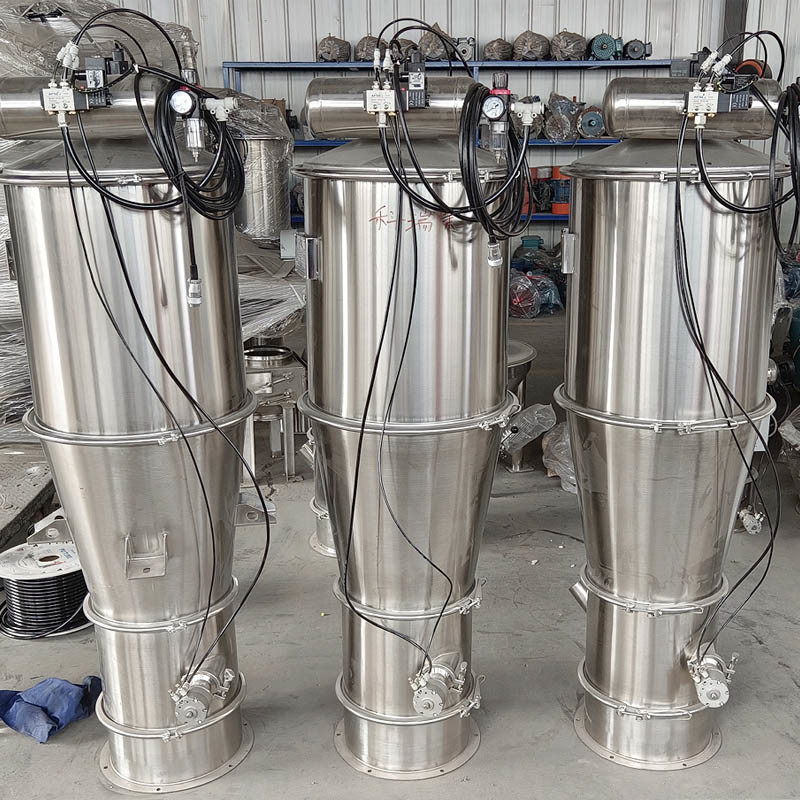

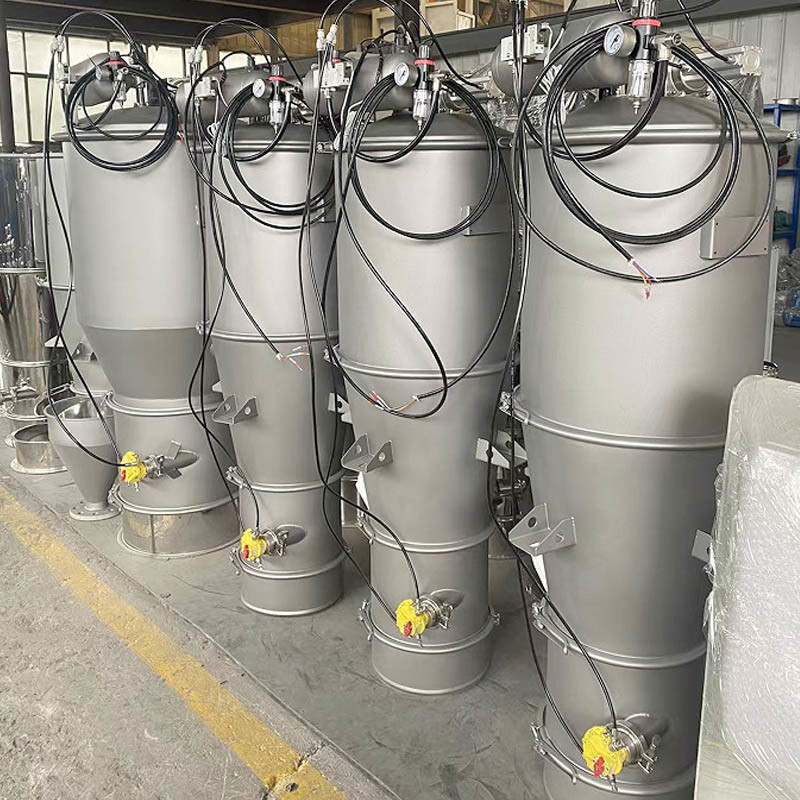

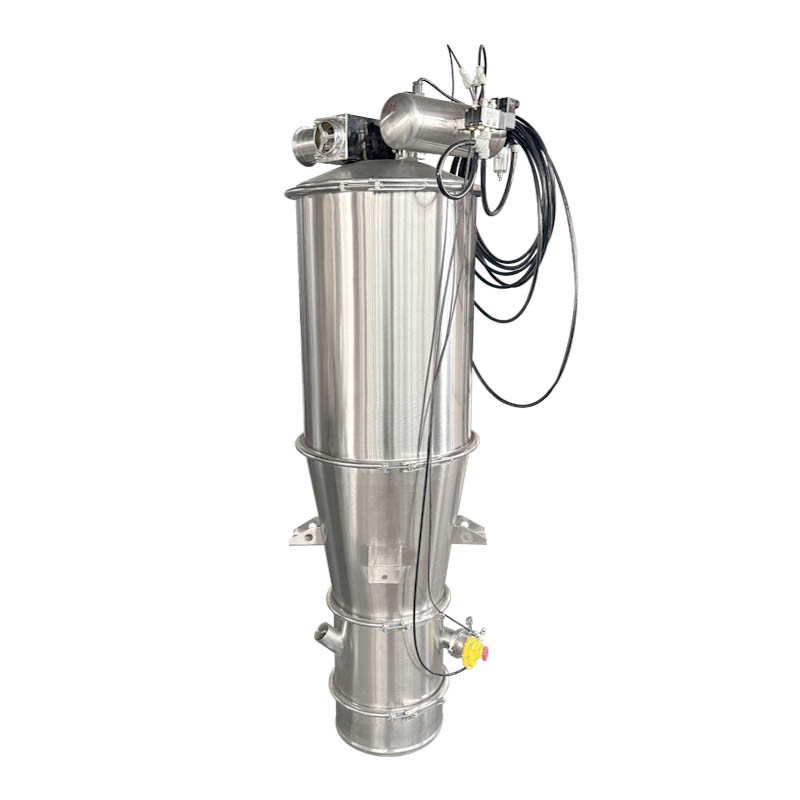

Product shows



Application

Wide range of applications: The vacuum loader is mainly used for conveying powdery and granular materials, such as raw pharmaceutical powders,

chemicalders, metal oxide powders, etc.; however, it is not suitable for conveying overly moist, sticky, or heavy materials.
