Screw Conveyor
Product description
Pipe screw conveyor is a powerful equipment in the field of industrial material transportation. It is composed of sealed pipe and built-in spiral blade, the motor drives the spiral shaft to rotate at high speed, the blade is like a smart dragon, and continues to push the material along the pipe to achieve efficient transportation.
The device has significant advantages. First, the fully closed pipeline to prevent material leakage and dust flying, to ensure a clean environment, to prevent material pollution, especially suitable for conveying fine chemical raw materials, food additives, etc. Second, compact structure, small footprint, can be horizontal, inclined and even vertical installation according to local conditions, can be easily integrated into all kinds of production sites. Third, the material compatibility is strong, whether it is grain particles, or cement powder, can be stable transport. Because of this, it is widely used in chemical, building materials, food and other industries, which greatly improves the efficiency and stability of the material handling link.
Working principle
The working principle of the tube screw conveyor is based on the rotating push action of the spiral blade. When the motor starts, the spiral shaft is driven by the transmission device such as the reducer to rotate. The spiral blade on the spiral shaft rotates accordingly, and the material entering the feed port of the conveyor will be pushed by the rotating spiral blade. Due to the friction between the spiral blade and the material and the internal friction of the material itself, the material under the action of the spiral blade, along the axial direction of the spiral axis in the closed pipeline to do continuous linear movement, just like being pushed forward by an invisible spiral "push" until discharged from the discharge port, so as to complete the material conveying process. During the whole conveying process, the material moves in the closed pipeline without interference from the external environment, which can ensure the integrity and cleanliness of the material.
Product characteristics
1. Good sealing: the closed pipe structure can effectively prevent material leakage and flying, avoid pollution to the environment, and prevent external impurities from mixing with the material, especially suitable for conveying toxic, harmful, flammable, explosive, easy to dust or sanitary requirements of the material.
2. High conveying efficiency: the rotation of the spiral blade can continuously and stably push the material forward, and a large number of materials can be transported in a unit time, and the conveying effect is particularly prominent for small particles or powdery materials, which can meet the needs of different production scales.
3. Compact structure: small space, can be flexibly arranged according to the actual situation of the site, whether it is horizontal, inclined or vertical installation can be adapted, can be well integrated into a variety of complex production environment, especially suitable for limited space places.
4. Long conveying distance: by reasonably designing the parameters and driving device of the spiral blade, longer conveying distance can be achieved, reducing the intermediate transfer link, reducing the loss of materials in the conveying process, and improving the stability and reliability of the conveying system.
5. Easy maintenance: The structure is relatively simple, mainly composed of spiral shaft, tubular shell and drive device, no complex transmission mechanism and vulnerable parts, less daily maintenance work, can effectively reduce the maintenance cost of equipment and downtime, improve production efficiency.
6. Strong material adaptability: It has good adaptability to the physical and chemical properties of materials, and can transport various types of materials, including granular, powdered, small chunks, such as grain, cement, fertilizer, ore, etc., which can meet the material transportation needs of different industries.
Product parameter
| Model | Conveying tube diameter | Power | Hopper volume | Angle(Degree) | | ESC-133 | 133mm | 0.75-4KW | 200L or customized | 30-60 | | ESC-159 | 159mm | 0.75-4KW | | ESC-219 | 219mm | 1.5-4KW | | ESC-273 | 273mm | 2.2-4KW | | Please consult us for more models |
|

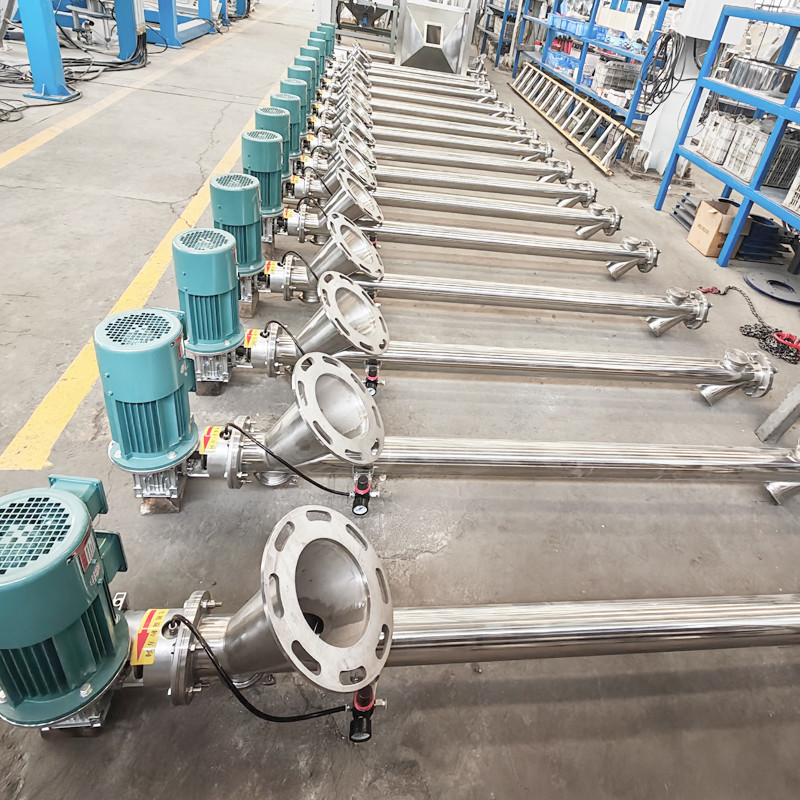

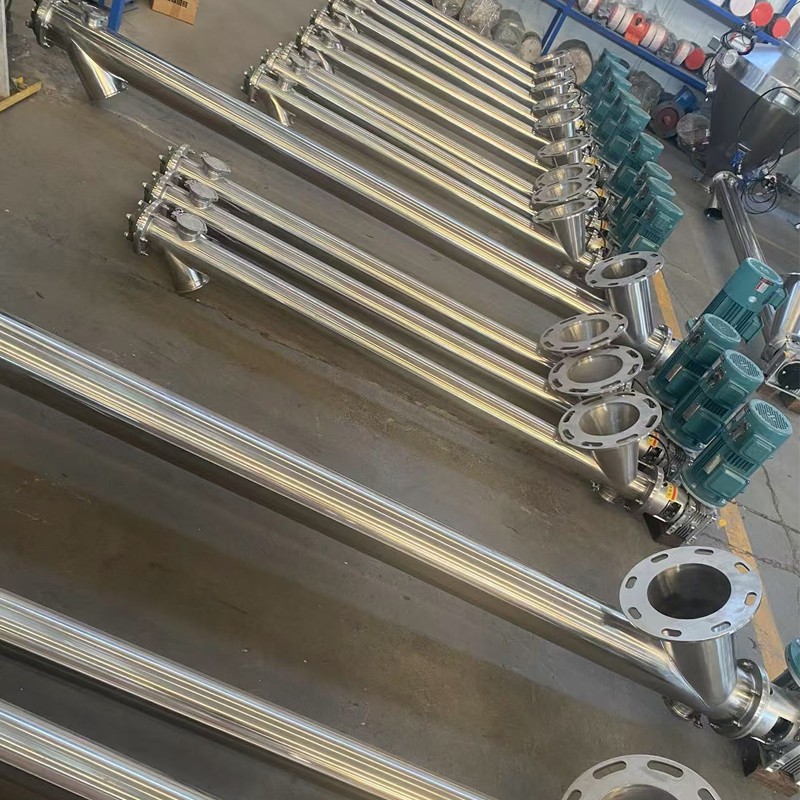

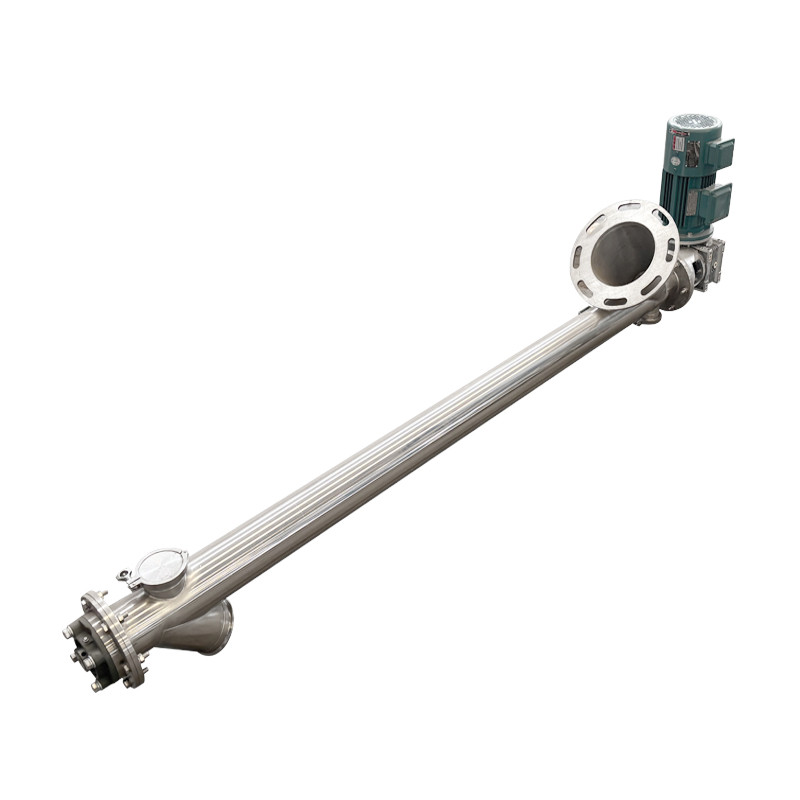

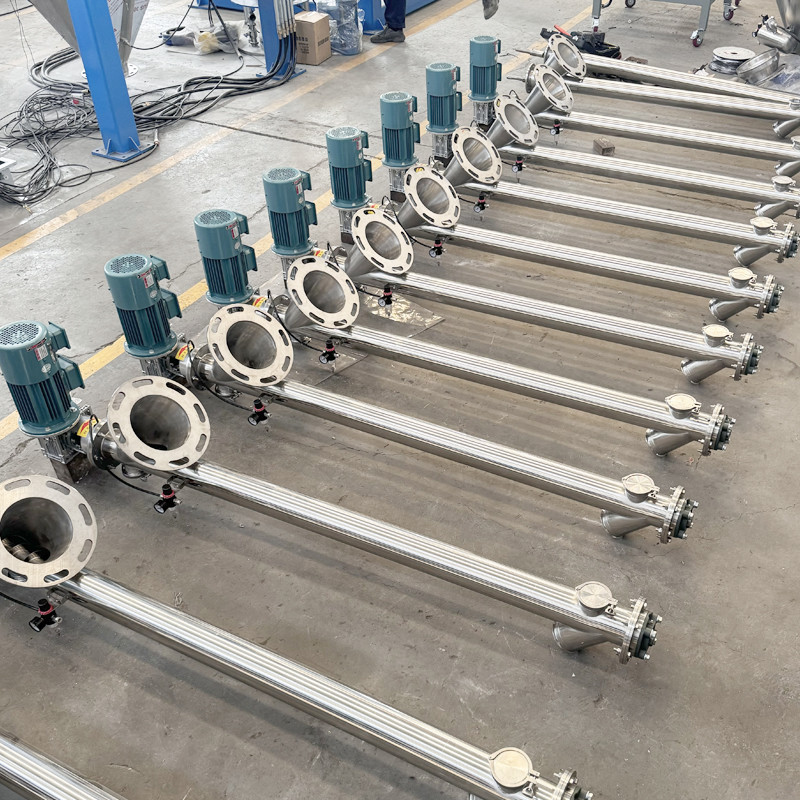

Product display
Product details
Product application
Packaging & Shipping
Why Choose us
About us
We have been specializing in the production of Screening and conveying equipment for 13 years. China's vibrating screen industry top three. And we have done matching and OEM for many large companies. Including the world's top vibrating screen manufacturer, Sweco, USA, we have OEM for his China region. And our products are often exported to Australia, Thailand, Indonesia, New Zealand and other countries. We welcome customers or dealers to visit our factory and will arrange everything for you.Our factory address: West of the industrial and commercial office of Da Zhaoying Town, Xinxiang City, Henan Province.
