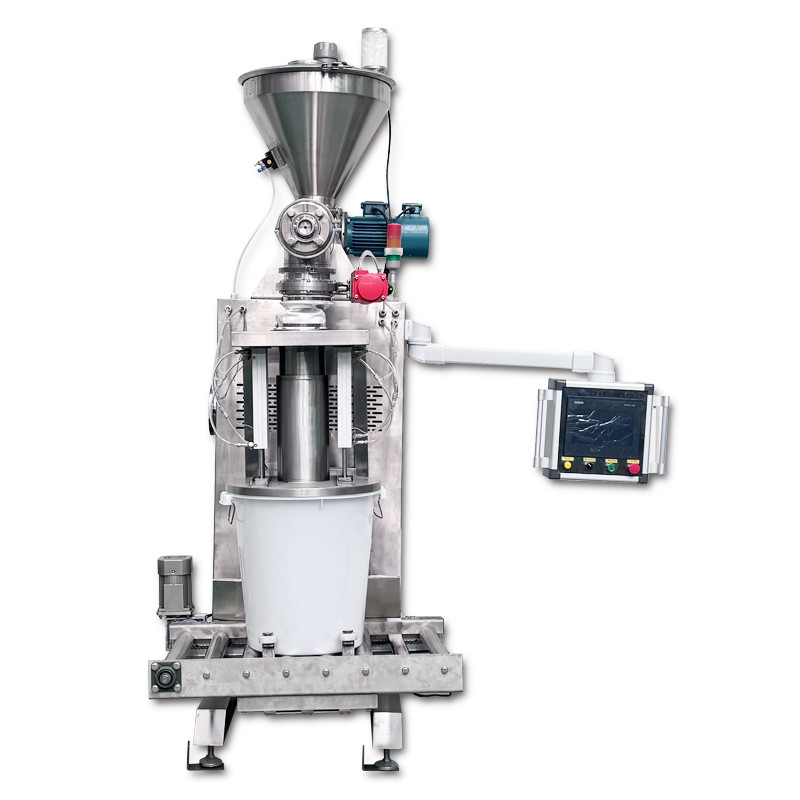

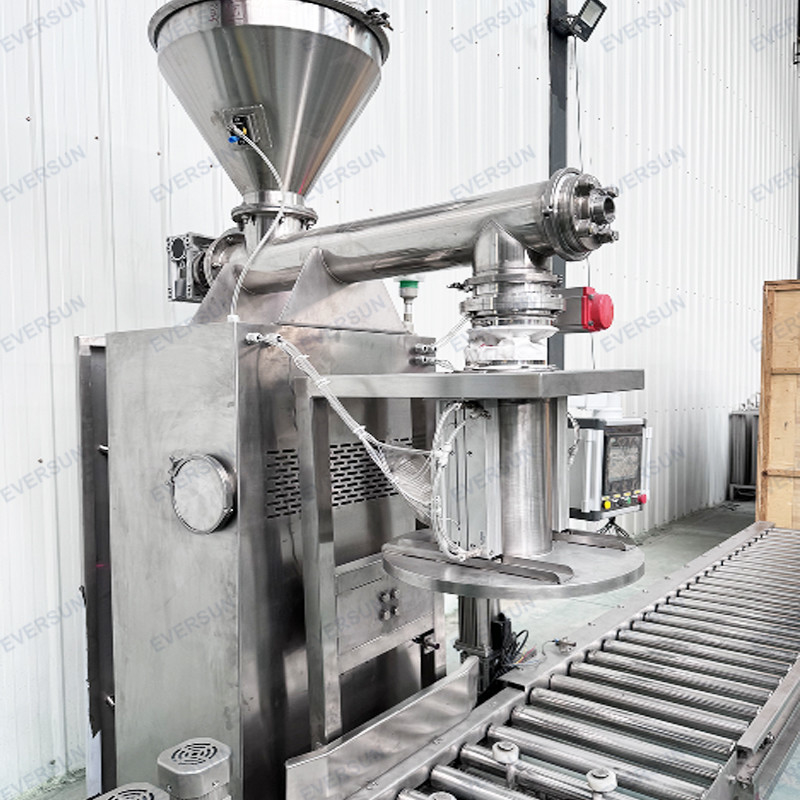

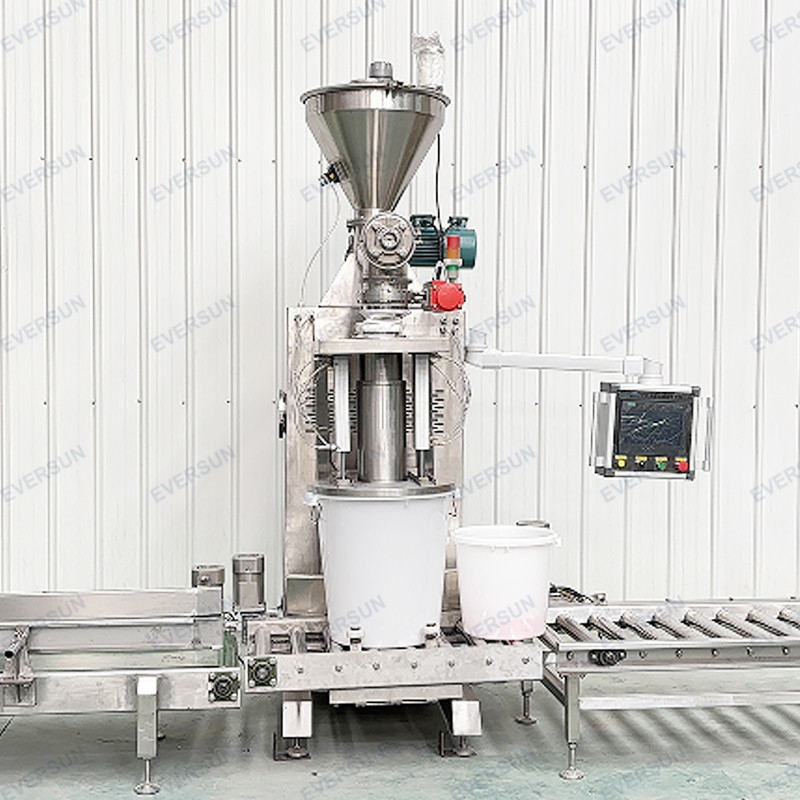

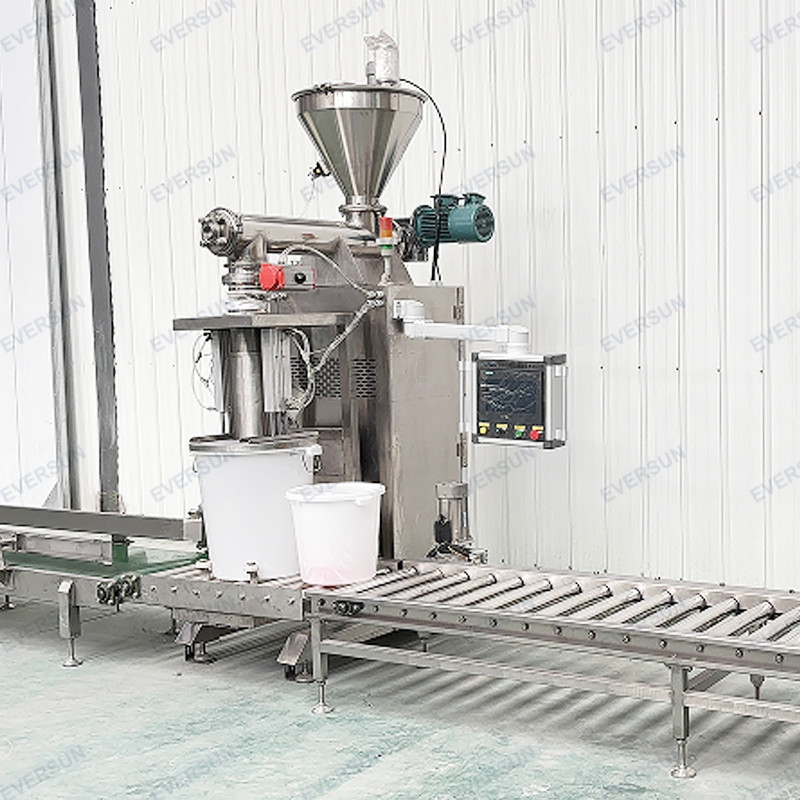

Stainless Steel Quantitative Packaging Machine Automatic Weighing And Packaging Equipment For Grain Powder

The 10-50kg automatic packaging machine is a packaging machine designed for

granular and highly fluid materials. It is an upgraded specifically developed for the

grain industry. It uses an electric mechanism instead of a pneumatic one, making it

easy to use by just plugging it in without the for an air pump. This can effectively

avoid damage and impact on electric components caused by low winter

temperatures. The packaging scale features high weighing accuracy, ease of

operation strong reliability, and comprehensive functions.

First, the ton bag is placed over the filling spout, and the four corners of the bag are

hung on the cylinder. Then press the "start" button, the pressing cylinder begins to

work and holds the bag opening, the cylinder spreads the four corners of the bag.

The controller automaticallys the weight of the bag to prepare for receiving the material.

The screw rotates quickly to fill the material into the bag. During this process, the

vibrating table to vibrate, aiming to compact the material, while the dust overflowing with

the air in the bag is sucked away by the dust collector through the vacuum cleaner. the

filling is close to the set value, the screw rotation slows down to add slowly, and the

vibration stops. When the set value is reached, the filling. At this point, the pressing

cylinder releases the bag opening, and the cylinder loosens the four corners of the bag.

Finally, the forklift takes the bag, completing the entire packaging process.

It should be noted that different packaging machines may have some differences in details,

and the specific operating procedures may vary.

1. Fully automatic packaging machinery is widely used: In the market: food, chemical,

pharmaceutical, and light industries are using it (atively fewer in the machinery industry).

2. It is convenient to use: Completes multiple processes in one go: pulling bags, making bags,

filling, coding counting, measuring, sealing, and delivering products. It can be automated and

does not require human operation after setting.

3. High efficiency: The output of fully packaging machines in the Chinese market can reach

120-240 packages per minute, replacing the hand-made products of the 1980s with production

output several times higher than before.

4. Clean, hygienic, and energy-saving: Using fully automatic packaging machines is clean and

hygienic eliminating the need for manual operations. It may also offer functions such as saving

materials, saving bags, saving costs, and being environmentally friendly

It is widely used in food, chemical, pharmaceutical, and light industry, especially suitable for

packaging of solid or semi-solid materials such as cereals plastic particles, and food.
