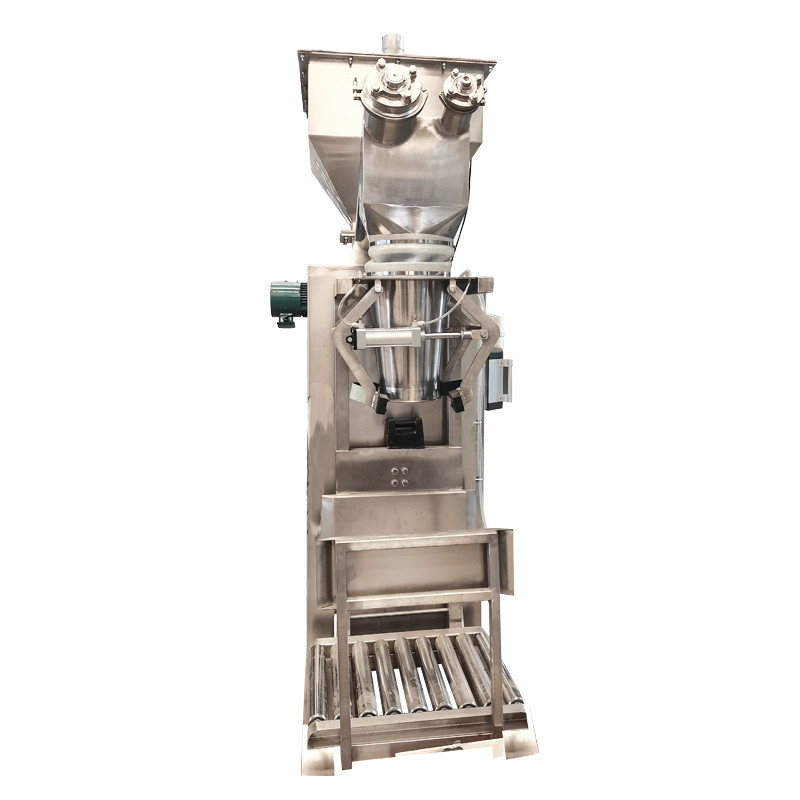

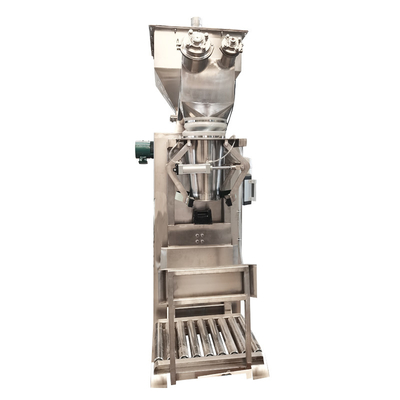

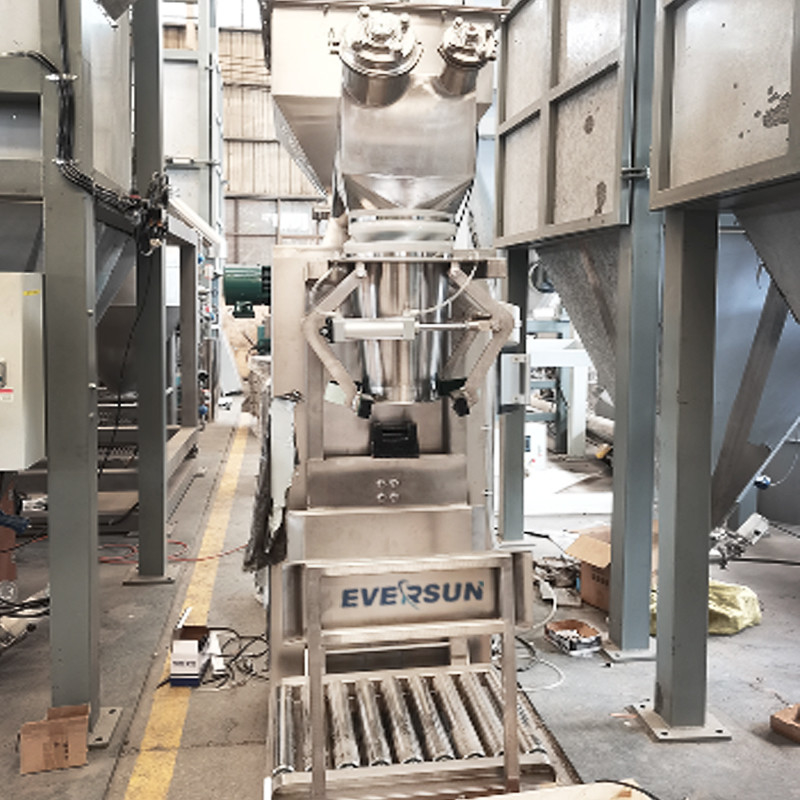

10-50kg Automatic Weighing Packaging Machine For Powder And Granular Materials

Basic Information
Place of Origin: CHINA
Brand Name: EVERSUN
Certification: ISO,CE
Model Number: DCS
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: Standard export wooden cases
Delivery Time: within 7-15 work days
Payment Terms: L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability: 5000set/year
Detail Information
Key Words: Automatic Packaging Machine Color: Customized
Operation Mode: Fully Automatic Material: Stainless Steel
Power Consumption: 3KW Weight Range: 5-50kg
Operating Interface: Touch Screen Packaging Type: Pouch, Bag, Sachet, Etc.
Touch Screen: 7 Inch Color Touch Screen Bag Type: Pillow Bag, Gusset Bag, Quad Seal Bag
Bag Size: L: 80-400mm, W: 80-250mm Machine Weight: 350kg
Highlight:

granular materials automatic weighing packaging machine

,

50kg automatic weighing packaging machine

,

powder automatic weighing packaging machine


Product Description

10-50kg Automatic Weighing Packaging Machine For Powder And Granular Materials 0

10-50kg Automatic Weighing Packaging Machine For Powder And Granular Materials 1

The design of the automatic packaging machine is advanced, with a reasonable
structure and reliable performance. It uses dual synchronous belts to pull the film,
cylinder-controlled tensioning, automatic correction, and an automatic alarm protection
function, minimizing waste to the greatest extent. The metering device is integrated
with the machine, of completing bag making, filling, sealing, printing, and counting in a
single operation.

10-50kg Automatic Weighing Packaging Machine For Powder And Granular Materials 2

10-50kg Automatic Weighing Packaging Machine For Powder And Granular Materials 3

When the material in the storage hopper of the packaging machine is sufficient, it enters
the gravimetric feeding device under the action of gravity and the material gate is fully
opened to enter the large feeding state. When the given large feeding weight is reached,
the feeding gate is closed, leaving a narrow to enter the small feeding state. When the
given small feeding weight is reached, the feeding gate is completely closed. After a
certain amount of free-falling material the weighing hopper stabilizes, and when the bag
clamping mechanism is tightened, the discharge gate opens, the material enters the
discharge hopper, and then into the bag, completing one cycle of automatic packaging.
10-50kg Automatic Weighing Packaging Machine For Powder And Granular Materials 4
10-50kg Automatic Weighing Packaging Machine For Powder And Granular Materials 5
10-50kg Automatic Weighing Packaging Machine For Powder And Granular Materials 6

1. Fully automatic weighing and packaging machine touch screen control system,
supports Chinese and English, easy and practical operation.

2. The feeder operates smoothly and quietly, does not damage the raw materials,
and uses a precision counting control device to ensure accuracy. Each feeder in the
equipment can be turned or off as needed for production.

3. Each feeder is equipped with a material full stop device, low material alarm or stop
device, ensuring accuracy in every bag The equipment has a self-diagnosis function,
which can automatically alarm or stop in case of failure (users can choose to alarm or
stop), and is equipped with emergency stop buttons for convenient operation.

4. The fully automatic weighing and packaging machine can achieve automatic
arrangement, counting, filling, sealing, packaging, and conveying of. The number of
products packaged can be easily adjusted, the number of bags can be controlled, and
the number of packages can be automatically displayed, making it easy count the
machine's workload.

5. The equipment has reliable protective functions (all dangerous parts are equipped
with protective devices).
10-50kg Automatic Weighing Packaging Machine For Powder And Granular Materials 7

Metering ModeAuger filling, Loading cell
Package Weight5kg / 10kg / 15kg / 20kg / 25kg / 50kg or customized
MaterialsSS304 / SS316L / Carbon steel
Package Accuracy±0.2-1%(according to the material)
Packaging Speed2-10bags/min(according to the material)
Power Supply220V,380V,480V or customized
Hopper Volume50L
Total Power5Kw
Overall Dimensions1000×900×2150mm or customized
Operational StylePLC control system,Colorful touch screen

10-50kg Automatic Weighing Packaging Machine For Powder And Granular Materials 8
10-50kg Automatic Weighing Packaging Machine For Powder And Granular Materials 9
10-50kg Automatic Weighing Packaging Machine For Powder And Granular Materials 10
10-50kg Automatic Weighing Packaging Machine For Powder And Granular Materials 11
10-50kg Automatic Weighing Packaging Machine For Powder And Granular Materials 12
10-50kg Automatic Weighing Packaging Machine For Powder And Granular Materials 13
10-50kg Automatic Weighing Packaging Machine For Powder And Granular Materials 14
10-50kg Automatic Weighing Packaging Machine For Powder And Granular Materials 15
10-50kg Automatic Weighing Packaging Machine For Powder And Granular Materials 16
10-50kg Automatic Weighing Packaging Machine For Powder And Granular Materials 17
10-50kg Automatic Weighing Packaging Machine For Powder And Granular Materials 18
10-50kg Automatic Weighing Packaging Machine For Powder And Granular Materials 19


10-50kg Automatic Weighing Packaging Machine For Powder And Granular Materials 20



We have been specializing in the production of Screening and conveying equipment for 13 years.
China's vibrating screen industry top three. And we have done matching and OEM for many large
companies. Including the world's top vibrating screen manufacturer, Sweco, USA, we have OEM
for his China region. And our products are often exported to Australia, Thailand, Indonesia, New
Zealand and other countries.

We welcome customers or dealers to visit our factory and will arrange everything for you.Our
factory address: West of the industrial and commercial office of Da Zhaoying Town, Xinxiang City,
Henan Province.
