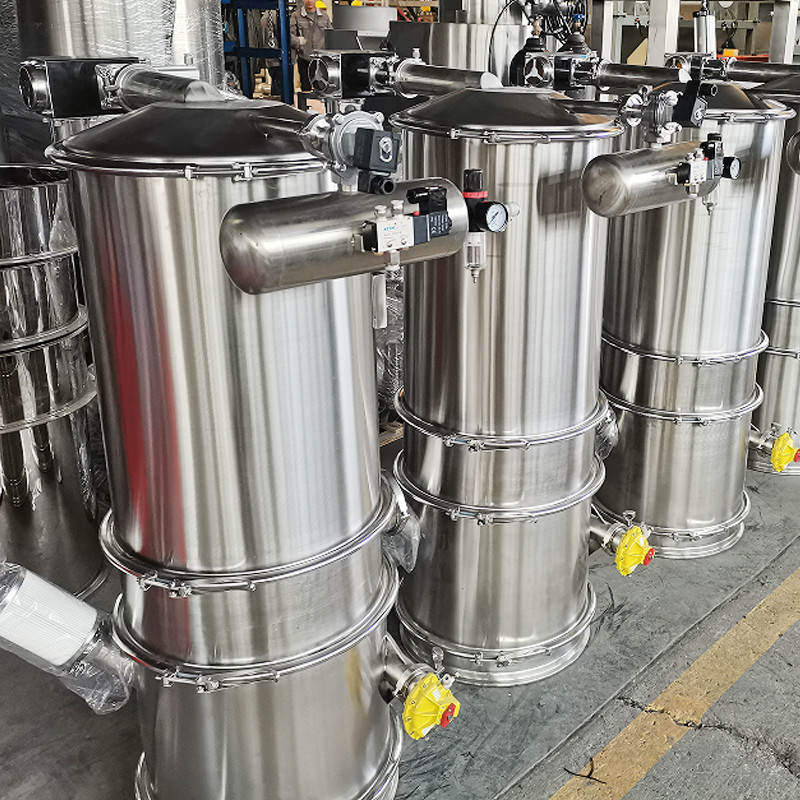

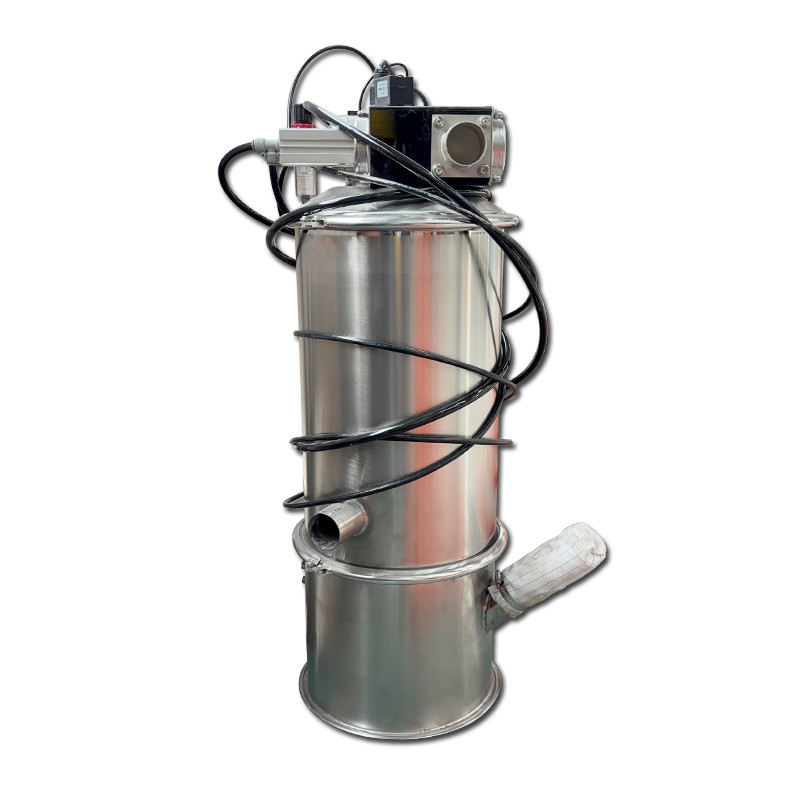

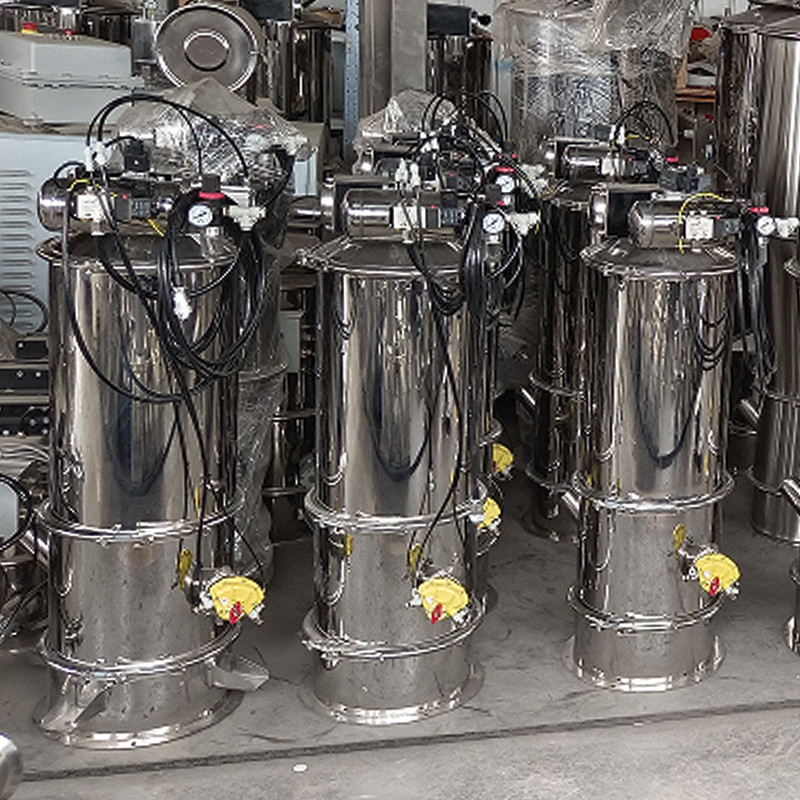

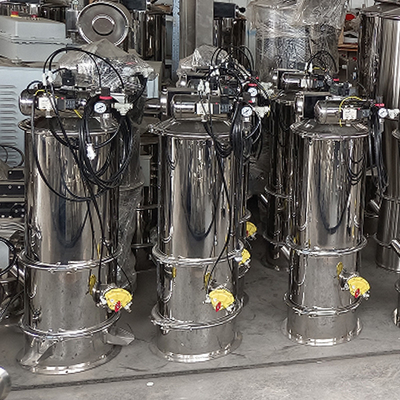

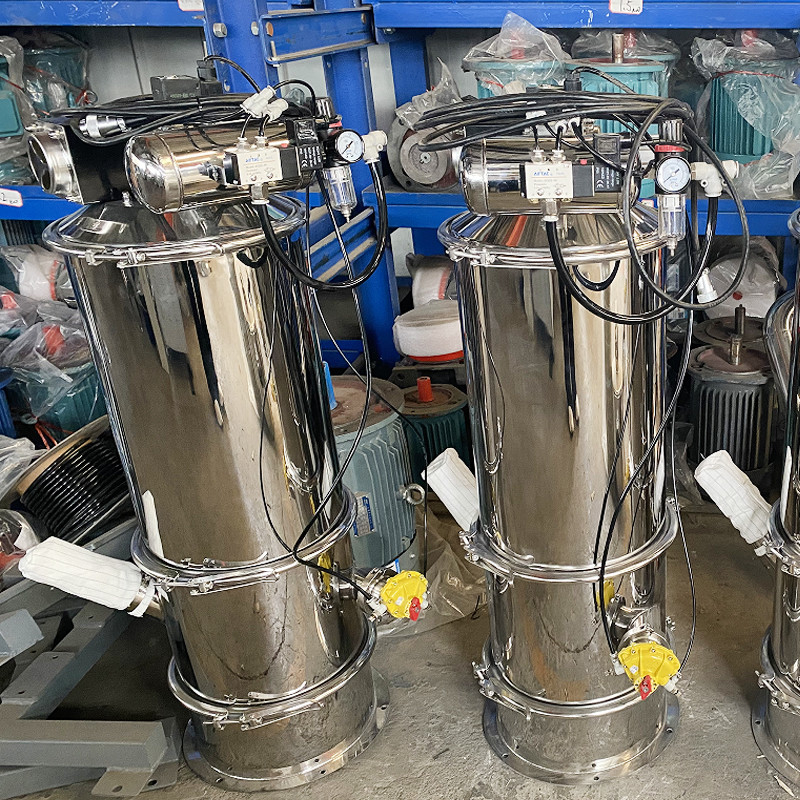

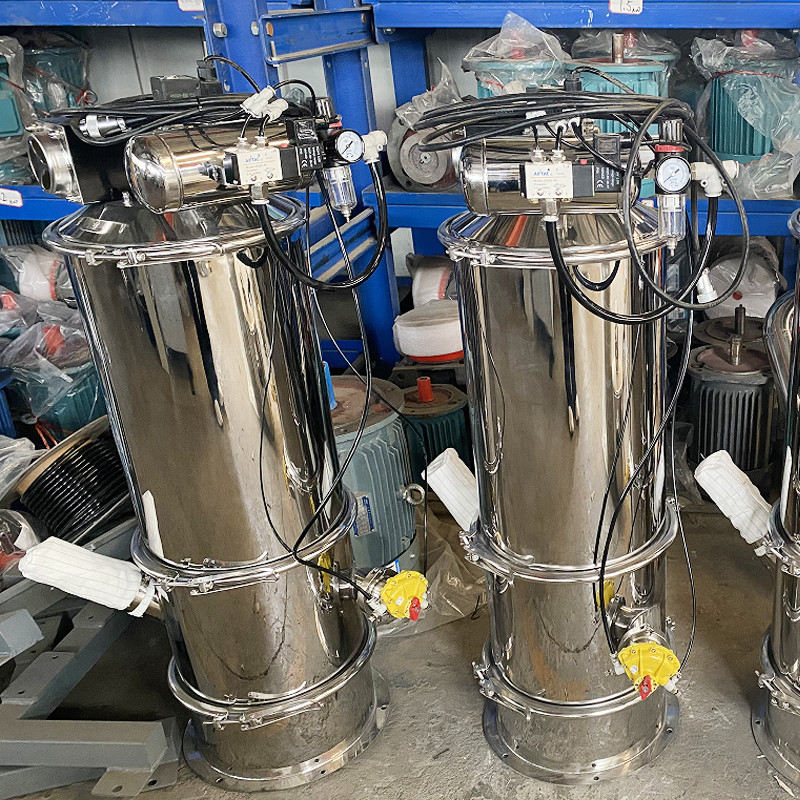

Vacuum Powder Feeder Fully Automatic Dust-Free Vacuum Material Feeder Resin Powder Vacuum Conveyor

The vacuum loader, also known as the vacuum conveyor, is a dust-free, enclosed

pipeline conveying equipment that transports granular and powdered materials using

suction. It utilizes the pressure difference between vacuum and the ambient

environment to create gas flow within the pipeline, which moves the powdered

materials, thus completing the conveying of powders. Our country has introduced

advanced foreign vacuum technology, continuously improving and refining it, and it is

now widely used in various light and heavy industrial sectors such chemical,

pharmaceutical, food, metallurgy, building materials, and agricultural by-products.

The working principle of the vacuum loader is to use the vacuum generator to create

negative pressure, forming a vacuum airflow. The material is sucked into suction

port, forming a material-air flow, and then it travels through the suction pipe to reach

the material bin of the loader. In the material bin, the separates the material from the

air. When the material fills the material bin, the controller automatically cuts off the air

source, the vacuum generator stops working, and at same time, the material bin door

automatically opens, and the material falls into the equipment's material hopper. At

this point, compressed air automatically cleans the filter the pulse blowback valve.

When the time comes or the material level sensor sends a loading signal, the loader

automatically starts.

1.Dust-free and sealed: The vacuum loader uses sealed pipelines for material

conveying, and the entire conveying process is completed in a completely sealed

state, dust pollution.

Model	Hopper Capacity(L)	Working pressure	Conveying Capacity(kg/h)	Compressed air consumption
QVC-1	1.1	0.4-0.6Mpa	50-300	180NL/min
QVC-2	6	0.4-0.6Mpa	100-700	360NL/min
QVC-3	12	0.4-0.6Mpa	300-1500	720NL/min
QVC-4	42	0.4-0.6Mpa	600-3000	1440NL/min
QVC-5	60	0.4-0.6Mpa	900-6000	2880NL/min



Wide range of applications: The vacuum loader is mainly used for conveying

powdery and granular materials, such as raw pharmaceutical powders,

chemicalders, metal oxide powders, etc.; however, it is not suitable for conveying

overly moist, sticky, or heavy materials.















Company Profile

We have been specializing in the production of Screening and conveying equipment for

13 years. China's vibrating screen industry top three. And we have done matching and

OEM for many large companies. Including the world's top vibrating screen manufacturer,

Sweco, USA, we have OEM for his China region. And our products are often exported to

Australia, Thailand, Indonesia, New Zealand and other countries.

We welcome customers or dealers to visit our factory and will arrange everything for you.
Our factory address: West of the industrial and commercial office of Da Zhaoying Town,
Xinxiang City, Henan Province.
