| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO,CE |
| Model Number: | QVC |
| Minimum Order Quantity: | 1set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden cases |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability: | 5000set/year |
| Power Source: | Electric | Control: | PLC Control/Control Box/Control Cabinet |
|---|---|---|---|
| Warehouse Volume: | 8-280L Or Customizable | Hopper Capacity: | 400/600kgm³ Or Customizable |
| Usage: | Convey Powder Particle | Cmeter: | 450mm |
| Installation: | Easy Installation | Customized Service: | Provided |
| Explosion Proof: | Optional | Quality: | GMP Standard, ISO And CE Certified |
| Customizable Options: | Yes | Capacity: | 200-6000kg/h Or Customized |
| Highlight: | food-grade Vacuum Conveyor Systems,stainless steel Vacuum Conveyor Systems |
||

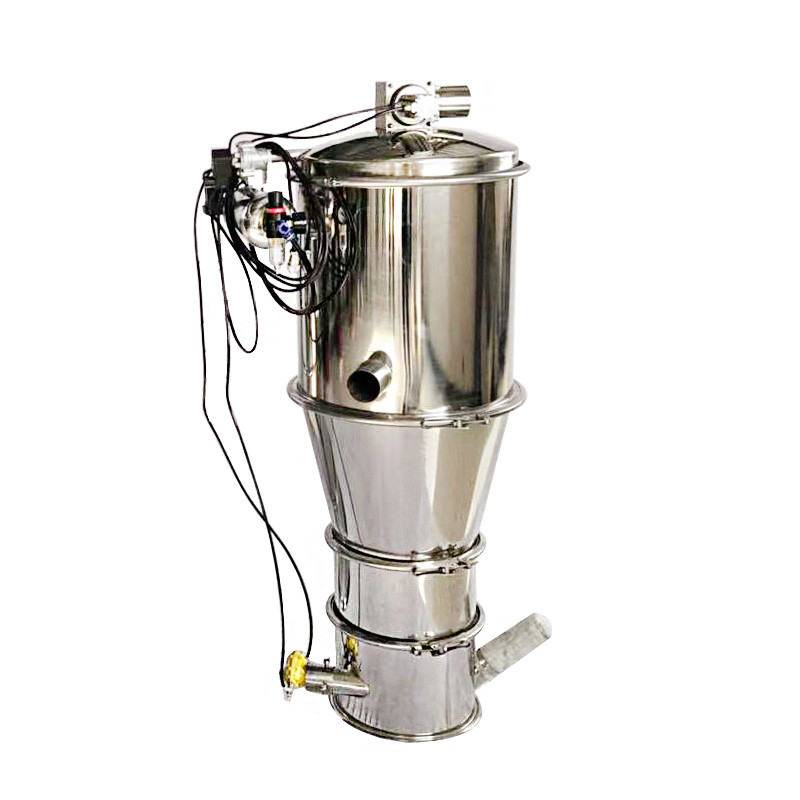

The vacuum loader, also known as the vacuum conveyor, is a dust-free, enclosed pipeline
conveying equipment that transports granular and powdered materials using vacuum. It
utilizes the pressure difference between vacuum and the ambient environment to create
gas flow within the pipeline, which moves the powdered materials, thus completing the
conveying of the powders.
Vacuum conveying is a pipeline sealed conveying method, which can eliminate dust
environmental pollution, improve the working environment, and at the same time reduce
pollution of the environment and personnel to the material, improving cleanliness. Since it
is pipeline conveying, it occupies less space and can complete the conveying of powders
in spaces, making the working space look tidy and beautiful; it is not limited by the distance.
At the same time, the vacuum loader can reduce the labor intensity workers and improve
work efficiency; it is the first choice for conveying most powdered materials.
The vacuum loader is composed of a vacuum pump or Roots blower, stainless steel
suction nozzle, conveying steel wire flexible hose, PE filter device, compressor
back-blowing air bag, pneumatic loading door equipment, and vacuum hopper material
level automatic control equipment. The entire control system is designed to be and is
manufactured with precision.
The compressed air enters the hopper and then carries the material to flow in the
pipeline. Due to the negative pressure in the pipeline, it can push the transportation
of materials, ensuring the conveying effect of materials. By controlling the material
level, the vacuum loader can better store and discharge the materials.
1. Pneumatic vacuum sealed conveying: The sealed conveying of various powder
materials can meet the diverse conveying needs of different customers, reduce
manual labor intensity, and improve work efficiency.
| Model | Hopper Capacity(L) | Working pressure | Conveying Capacity(kg/h) | Compressed air consumption |
| QVC-1 | 1.1 | 0.4-0.6Mpa | 50-300 | 180NL/min |
| QVC-2 | 6 | 0.4-0.6Mpa | 100-700 | 360NL/min |
| QVC-3 | 12 | 0.4-0.6Mpa | 300-1500 | 720NL/min |
| QVC-4 | 42 | 0.4-0.6Mpa | 600-3000 | 1440NL/min |
| QVC-5 | 60 | 0.4-0.6Mpa | 900-6000 | 2880NL/min |
The vacuum feeder is suitable for conveying various powders, granules, flakes, and fibrous
materials, and is widely used in multiple industries such as chemical, pharmaceutical, food,
metallurgy, plastics, etc.
We have been specializing in the production of Screening and conveying equipment for
13 years. China's vibrating screen industry top three. And we have done matching and
OEM for many large companies. Including the world's top vibrating screen manufacturer,
Sweco, USA, we have OEM for his China region. And our products are often exported to
Australia, Thailand, Indonesia, New Zealand and other countries.
We welcome customers or dealers to visit our factory and will arrange everything for you.
Our factory address: West of the industrial and commercial office of Da Zhaoying Town,
Xinxiang City, Henan Province.
