| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Certification: | ISO,CE |
| Model Number: | ZKS |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | negotiable |
| Name: | Vacuum Automatic Feeding Machine | Product Type: | Automatic |
|---|---|---|---|
| Capacity: | 200-6000kg/h Or Customized | Vacuum Source: | Vacuum Pump, Roots Fan |
| Conveying Distance: | 0-20m | Usage: | Convey Powder Particle |
| Voltage: | 110-480V | Material: | 304/316 Stainless Steel |
| Highlight: | Environmentally Friendly Vacuum Feeder Equipment,High Efficiency Vacuum Feeder Equipment,Stainless Steel Vacuum Feeder Equipment |
||

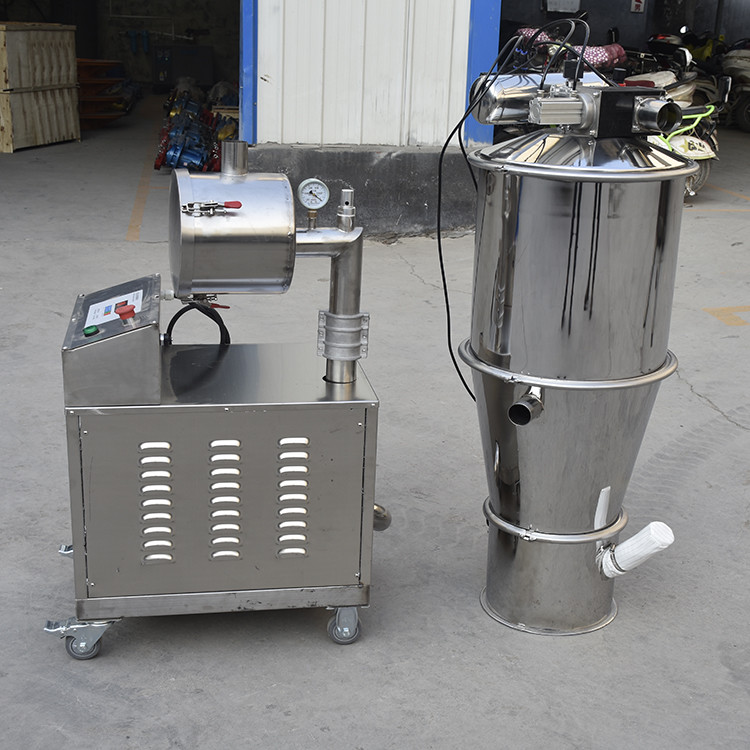

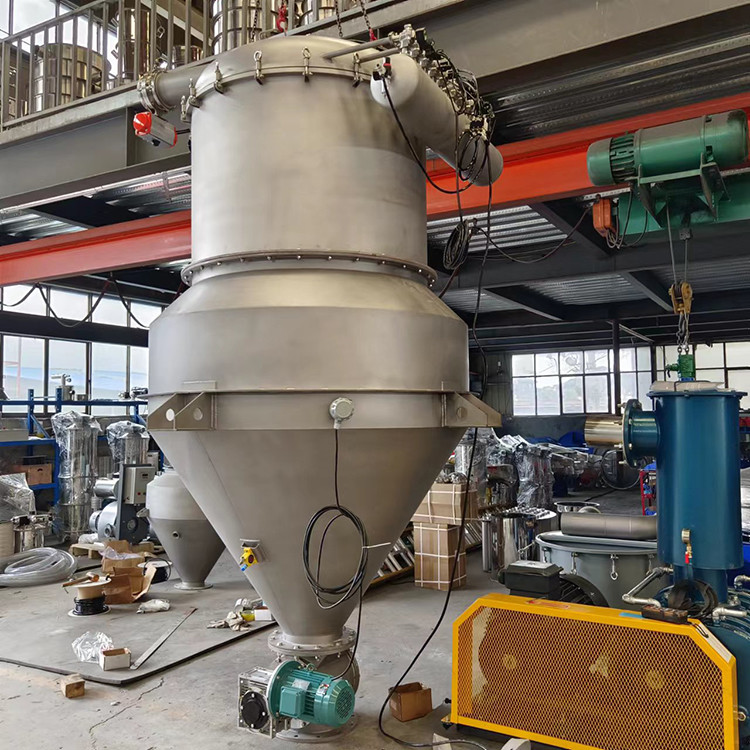

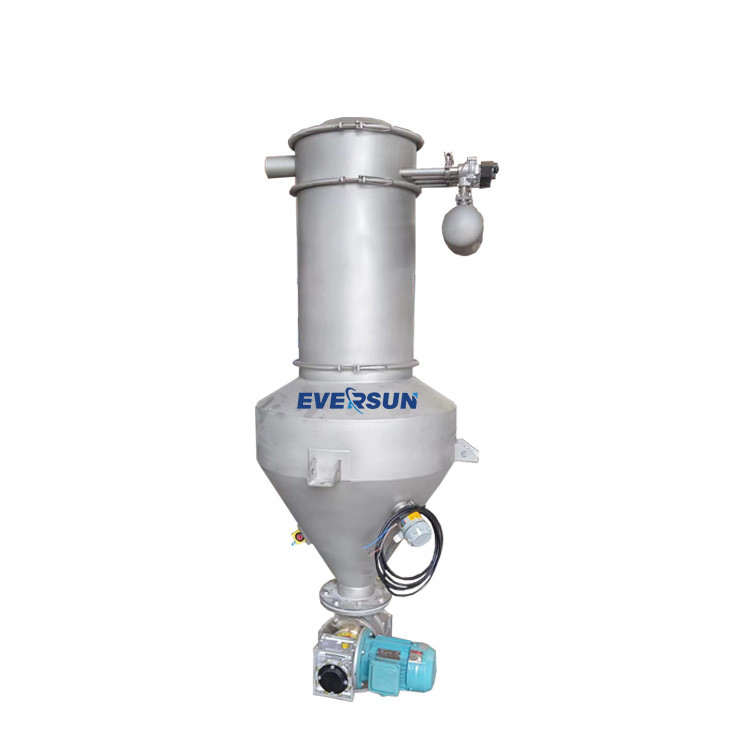

Introduction to vacuum feeding machine
Vacuum feeder, also known as vacuum conveyor, is a dust-free closed pipeline transportation equipment that uses vacuum suction to transport granular and powdery materials. It uses the air pressure difference between the vacuum and the environmental space to form a gas flow in the pipeline and drive the powdery materials The material moves to complete the powder transportation. Our country has introduced advanced foreign vacuum technology, continuously improved and improved it, and is now widely used in various light and heavy industrial industries such as chemical industry, pharmaceuticals, food, metallurgy, building materials, agricultural and sideline industries.
| Model | Delivery(kg/h) | Warehouse volume(L) | Operating pressure(Mpa) | Motor power(KW) |
| ZKJ-1 | 200-400 | 8 | 0.4-0.6 | 1.5 |
| ZKJ-2 | 400-600 | 8 | 0.4-0.6 | 2.2 |
| ZKJ-3 | 600-1200 | 12 | 0.4-0.6 | 3 |
| ZKJ-4 | 1200-2500 | 42 | 0.4-0.6 | 5.5(Single pole) |
| ZKJ-6 | 1500-3200 | 42 | 0.4-0.6 | 5.5(Single pole) |
| ZKJ-7 | 2500-6000 | 60 | 0.4-0.6 | 7.5 |
| ZKJ-10-6 | About 6000(when transporting distance of 10m) | 120 | 0.4-0.6 | 7.5(Roots Fan) |
| ZKJ-20-5 | About 5000(when transporting distance of 10m) | 280 | 0.4-0.6 | 11(Roots Fan) |
1. This transportation method can eliminate dust environmental pollution, improve the working environment, while reducing the pollution of the environment and personnel to materials, and improving cleanliness;
2. Because it is transported by pipeline, it occupies a small space and can complete the powder transportation in a small space, making the workshop space beautiful and generous; it is not limited by long or short distances.
3. The vacuum loading machine can reduce manual labor intensity and improve work efficiency;
It is the first choice for conveying most powder materials.
1. Plastics: polyethylene pellets, polystyrene pellets, polyurethane pellets, recycled rubber, ethylene-propylene pellets.
2. Food: spice powder, baking agent, beans, edible mushrooms, cheese powder, cocoa powder, coconut, crystallized sugar, curry powder, juice powder, lactose, purple flower, alfalfa, pepper, starch, baking powder.
3. Chemistry: activated carbon powder, aluminum chloride, aluminum hydroxide, zinc stearate, filter cake, sodium, bentonite, calcium carbonate, diatomaceous earth, soot, iron powder, tungsten powder, silicon carbon, diamine Silica, dicyandiamide powder, zeolite.
4. Pigments and coatings: dye powder, epoxy resin, acrylic polymer, titanium dioxide, toner powder, polytetrafluoroethylene powder.
5. Metal powder: aluminum powder, cobalt powder, iron powder, tungsten powder.
6. Others: clinker cement, grape seeds, casting auxiliary materials, welding powder, quartz particles, sand, gravel.
*Materials not recommended for transportation:
Clumped, moisture-containing, overweight or oversized materials such as feathers, metal particles, etc.
